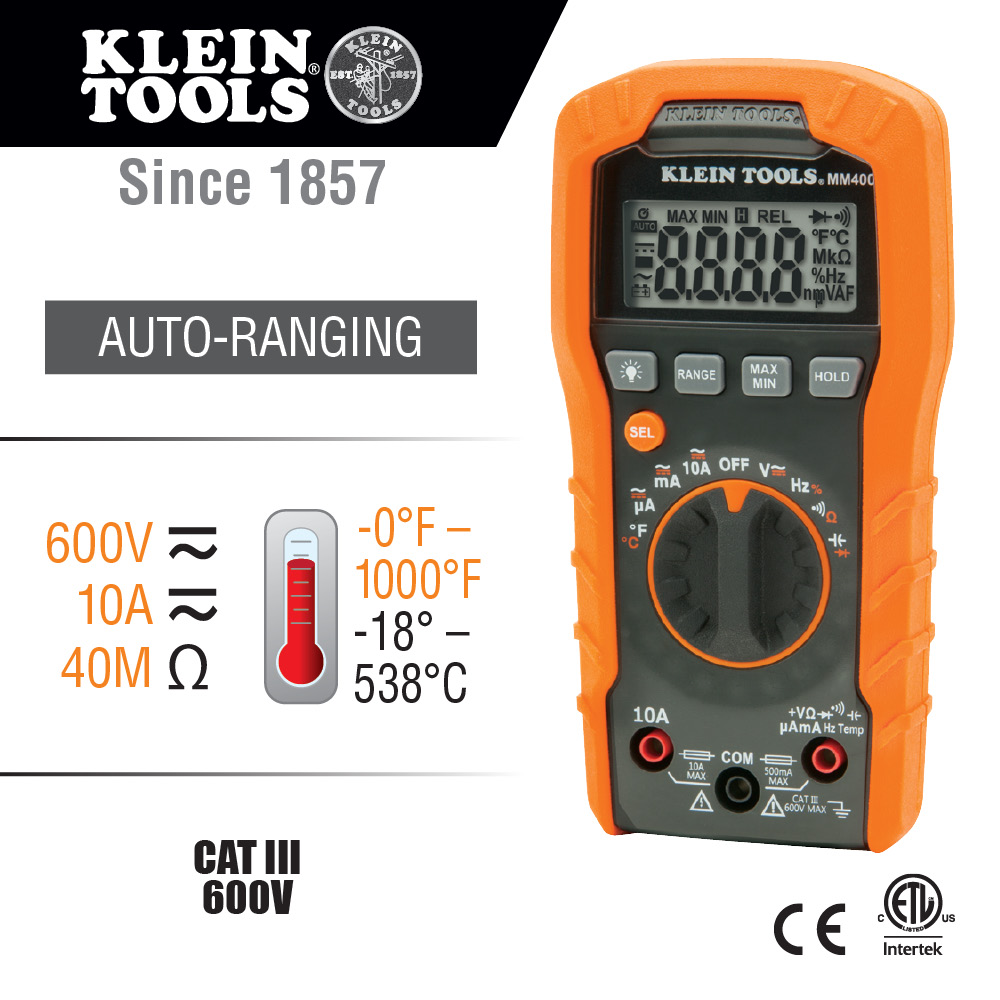

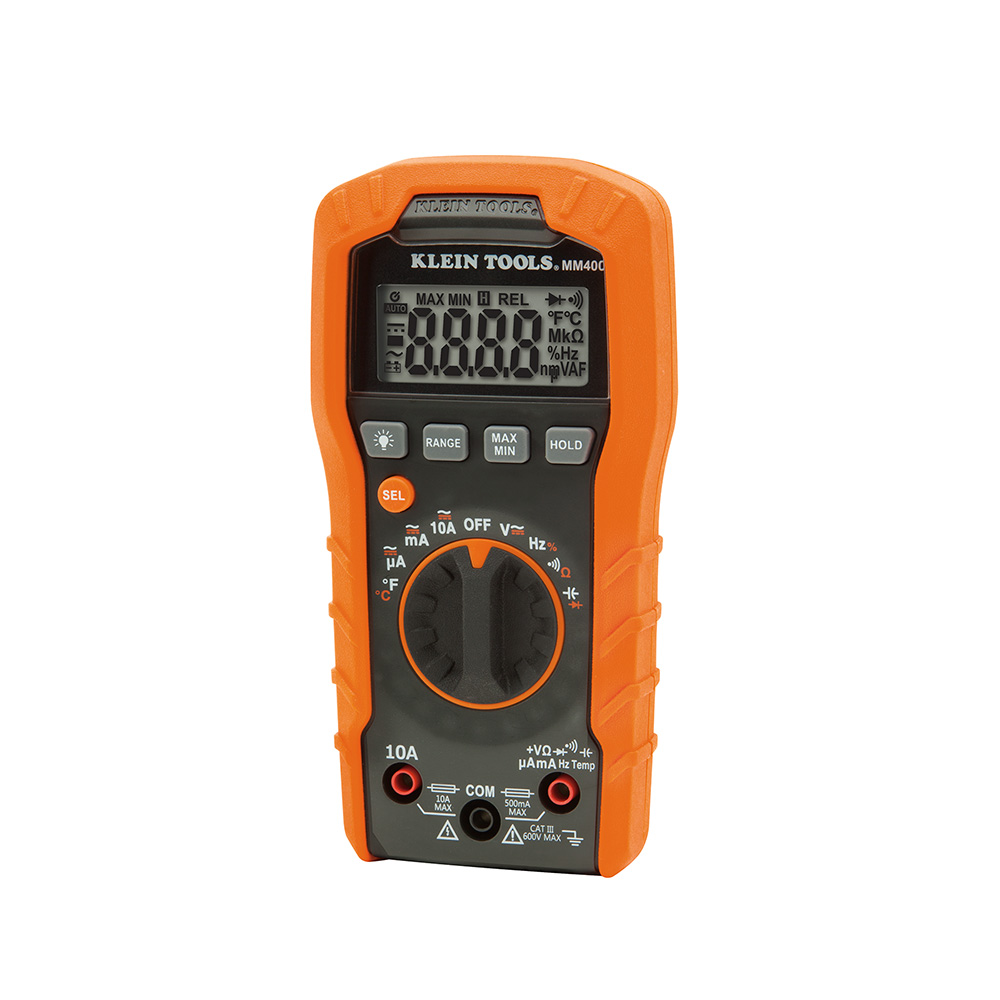

Digital Multimeter, Auto-Ranging, 600V

MM400

  • Measures up to 600V AC/DC voltage, 10A AC/DC current and 40 MΩ resistance
  • Measures temperature, capacitance, frequency, duty-cycle, and test diodes and continuity
  • CAT III 600V safety rating
  • Built to withstand a 3.3-foot (1 m) drop and withstand daily wear and tear on the job site
  • Low battery indicator and easily accessible battery compartment
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
  • Includes test leads, thermocouple with adapter and batteries

数字万用表,自动量程,600V

MM400

  • 测量高达600V AC / DC电压,10A AC / DC电流和40MΩ电阻
  • 测量温度,电容,频率,占空比,测试二极管和连续性
  • CAT III 600V安全等级
  • 可承受3.3英尺(1米)的跌落,可承受工作现场的日常磨损
  • 低电量指示灯和易于使用的电池盒
  • 用于基础和受控电磁环境,如住宅,商业和轻工业场所
  • 包括测试引线,带适配器和电池的热电偶

Klein Tools MM400 is an auto-ranging multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Specifications
Batteries:
2 x AAA
Drop Protection:
3.3 ft (1 m)
Display:
4000 Count LCD
Functions:
Measures up to 600V AC/DC voltage, 10A AC/DC current and 40 MΩ resistance. Measures temperature, capacitance, frequency, duty-cycle, and test diodes and continuity.
Voltage:
600V AC; 600 V DC
Frequency:
1Hz – 50 KHz
Current:
10A AC; 10A DC
Capacitance:
200?F
Ohms (Resistance):
40MO
Standard:
CAT III 600V
Temperature Range:
0° – 1000°F (-18° – 538°C)
Included:
Test Leads, Batteries and Thermocouple
Overall Length:
6” (152.4 mm)
Overall Height:
1.781” (45.2 mm)
Overall Width:
3.166” (80.4 mm)
Weight:
0.51 lb (0.23 kg)
UPC:
092644690211
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Klein Tools MM400是一款自动量程万用表,可测量AC / DC电压,AC / DC电流和电阻。它还可以测量温度,电容,频率,占空比,测试二极管和连续性。Klein Tools的测试和测量产品系列由电工为电工设计。多年的实地研究,加上美国各地电工的广泛投入,激发了仪表和电气测试仪的发展,这些测试仪具有创新,省时的特性。

产品规格
电池:
2 x AAA
掉落保护:
3.3英尺(1米)
显示:
4000计数LCD
功能:
测量高达600V AC / DC电压,10A AC / DC电流和40MΩ电阻。测量温度,电容,频率,占空比,测试二极管和连续性。
电压:
600V AC;?600 V DC
频率:
1Hz – 50KHz
当前:
10A AC;?10A DC
电容:
200μF
欧姆(阻力):
40MO
标准:
CAT III 600V
温度范围:
0° – 1000°F(-18° – 538°C)
包括:
测试引线,电池和热电偶
总长度:
6”(152.4 mm)
总体高度:
1.781”(45.2 mm)
总宽度:
3.166”(80.4 mm)
重量:
0.51磅(0.23千克)
UPC:
092644690211
警告
  • 不要试图测量带电电路的电阻或连续性。
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作。
  • 在暴风雨或潮湿天气期间请勿使用仪表,如果仪表或测试导线看起来已损坏,请勿使用。
