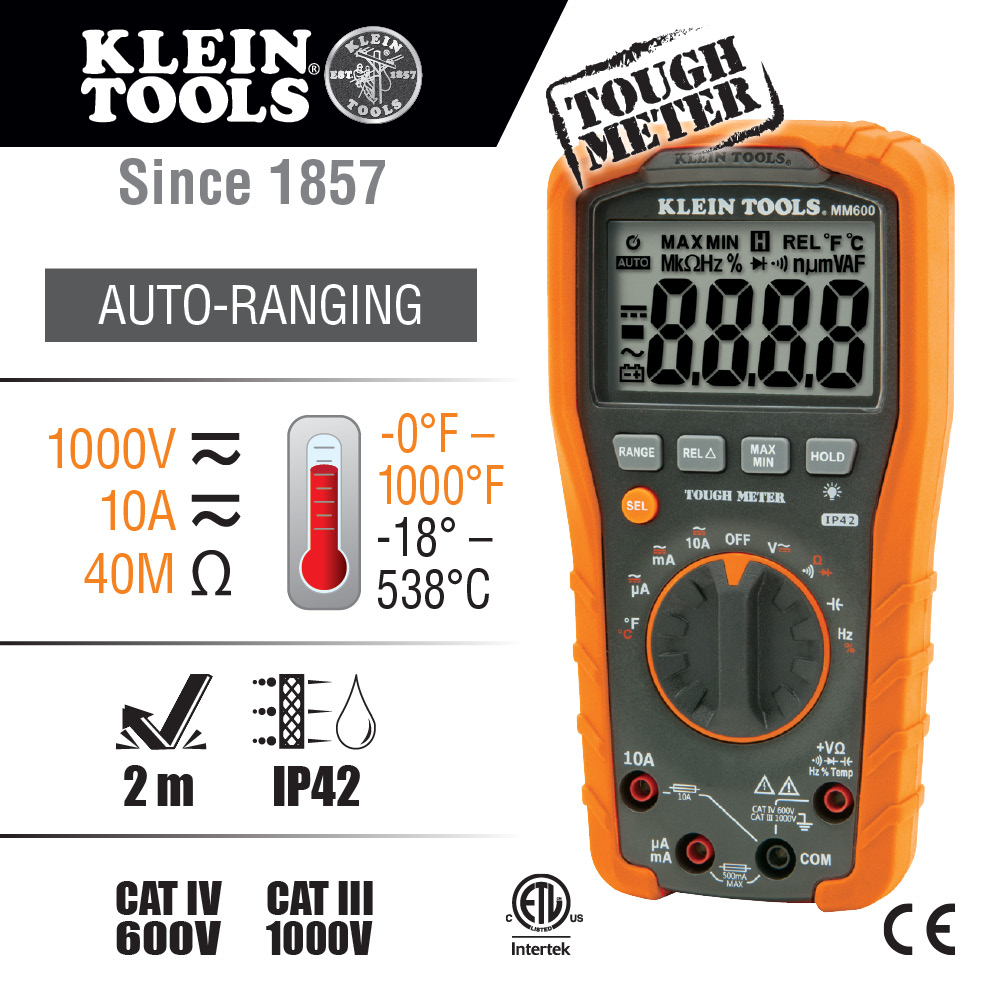

Digital Multimeter, Auto-Ranging, 1000V

MM600

  • Measures up to 1000V AC/DC voltage, 10A AC/DC current and 40MΩ resistance plus temperature, capacitance, frequency, duty-cycle, test diodes and continuity
  • CAT IV 600V / CAT III 1000V safety rating
  • Built to endure a 6.6-foot (2 m) drop and withstand daily wear and tear on the job site
  • Low battery indicator and easily accessible battery and fuse replacement compartment
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
  • Includes carrying pouch, test leads, alligator clips, thermocouple with adapter and batteries

数字万用表，自动量程，1000V

MM600

  • 可测量高达1000V AC / DC电压，10A AC / DC电流和40MΩ电阻以及温度，电容，频率，占空比，测试二极管和连续性
  • CAT IV 600V / CAT III 1000V安全等级
  • 经久耐用，可承受6.6英尺（2米）的跌落，并可承受作业现场的日常磨损
  • 低电量指示灯和易于使用的电池和保险丝更换隔间
  • 用于基础和受控电磁环境，如住宅，商业和轻工业场所
  • 包括携带袋，测试导线，鳄鱼夹，带适配器和电池的热电偶

This automatically ranging digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, test diodes and continuity. Exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of metersloaded with innovative, time-saving features.

Specifications
Batteries:
2 x AAA
Drop Protection:
6.6 ft (2 m)
Display:
4000 Count LCD
Functions:
Measures up to 1000V AC/DC voltage, 10A AC/DC current and 40MΩ resistance plus temperature, capacitance, frequency, duty-cycle, test diodes and continuity.
Voltage:
1000V AC; 1000 V DC
Frequency:
1Hz – 500 KHz
Current:
10A AC; 10A DC
Capacitance:
1000?F
Ohms (Resistance):
40MO
Ingress Protection:
IP42
Standard:
CAT IV 600V / CAT III 1000V
Temperature Range:
0° – 1000°F (-18° – 538°C)
Included:
Carrying Case, Test Leads, Thermocouple, and Batteries
Overall Length:
7” (177.8 mm)
Overall Height:
2.094” (53.2 mm)
Overall Width:
3.547” (90.1 mm)
Weight:
0.90 lb (0.41 kg)
UPC:
092644690228
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.

这种自动量程数字万用表可测量AC / DC电压，AC / DC电流和电阻。它还可以测量温度，电容，频率，占空比，测试二极管和连续性。电工为电工设计。多年的实地研究，加上来自美国各地电工的广泛投入，激发了具有创新，省时功能的仪表的发展。

产品规格
电池：
2 x AAA
掉落保护：
6.6英尺（2米）
显示：
4000计数LCD
功能：
可测量高达1000V AC / DC电压，10A AC / DC电流和40MΩ电阻以及温度，电容，频率，占空比，测试二极管和连续性。
电压：
1000V AC;?1000 V DC
频率：
1Hz – 500KHz
当前：
10A AC;?10A DC
电容：
1000μF
欧姆（阻力）：
40MO
入侵保护：
IP42
标准：
CAT IV 600V / CAT III 1000V
温度范围：
0° – 1000°F（-18° – 538°C）
包括：
便携箱，测试引线，热电偶和电池
总长度：
7”（177.8 mm）
总体高度：
2.094”（53.2 mm）
总宽度：
3.547”（90.1 mm）
重量：
0.90磅（0.41千克）
UPC：
092644690228
警告
  • 不要试图测量带电电路的电阻或连续性。
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 在暴风雨或潮湿天气期间请勿使用仪表，如果仪表或测试导线看起来已损坏，请勿使用。
  • 在每次使用之前，通过测量已知电压或电流来验证仪表操作。
