机架安装采用标准接触器,谐波滤波器为7%(189)Hz
所述MODF-RACK模块包括,以紧凑的尺寸中,所有必要的组件实现一个步骤的滤波器电容器组的开关。MODF-RACK模块由两个基本部分组成:切换块和控制块。两个部件都安装在一个小框架中,以安装在电路板上。
MODF-RACK系列功率电容器模块包括母线系统,高破裂容量保险丝,接触器,谐波保护电抗器和低损耗功率电容器POLB在一个紧凑的单元中。模块完全接线,可随时安装在标准机柜800x600mm上。(W x D)。

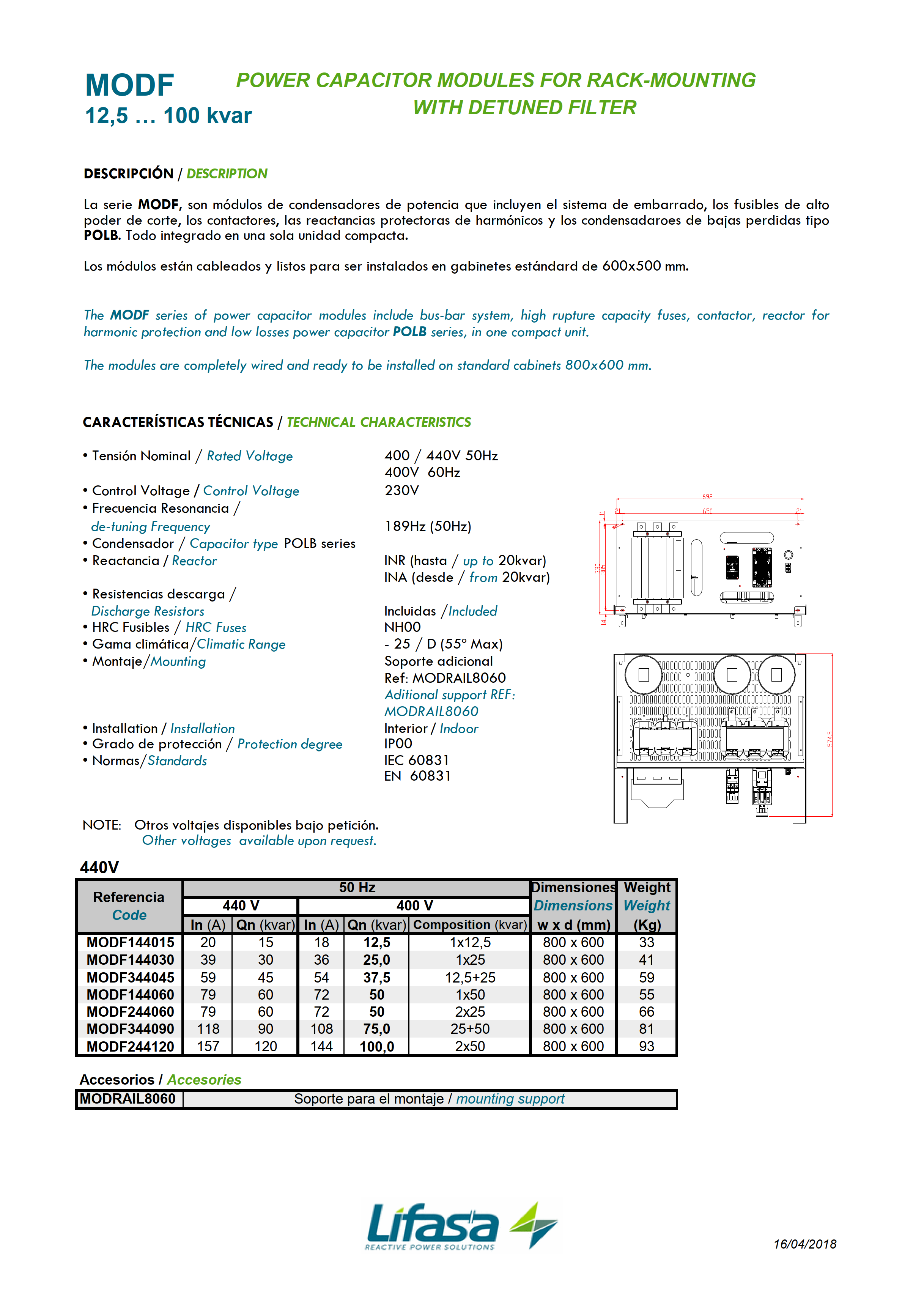

Rack-Mounting with standard contactors with harmonic filters 7% (189) Hz
The MODF-RACK module includes, in a compact size, all the components necessary to realize the switch of one step for a filter capacitor bank. The MODF-RACK modules are composed of two basic parts: switching block and control block. Both parts are mounted in a small frame to be installed in an electric board.
The MODF-RACK series of power capacitor modules include busbar system, high rupture capacity fuses, contactor, reactor for harmonic protection and low losses power capacitors POLB in one compact unit. The modules are completely wired and ready to be installed on standard cabinets 800x600mm. (W x D).
电压 | 400/440 Vca |
辅助电压 | 230伏 |
频率 | 50/60赫兹 |
共振频率 | 189赫兹(7%) |
电容器 | Tipo POLB |
反应堆 | INR类型(<20 kvar) INA型(≥20kvar) |
保险丝 | NH00 |
温度 | -40 / +55?C |
保护 | IP00 |
安装 | 室内 |
根据要求提供其他功率,电压和频率。

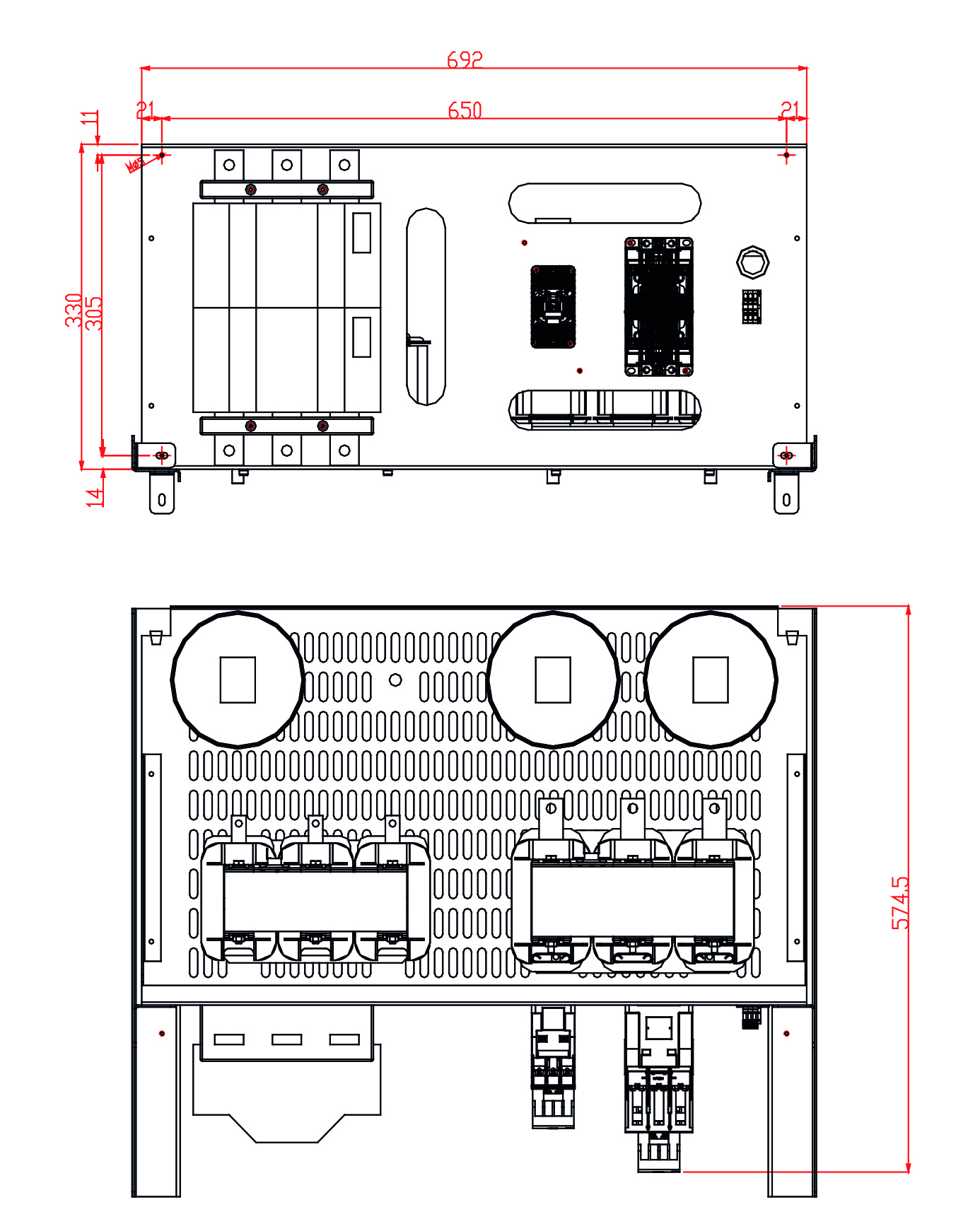

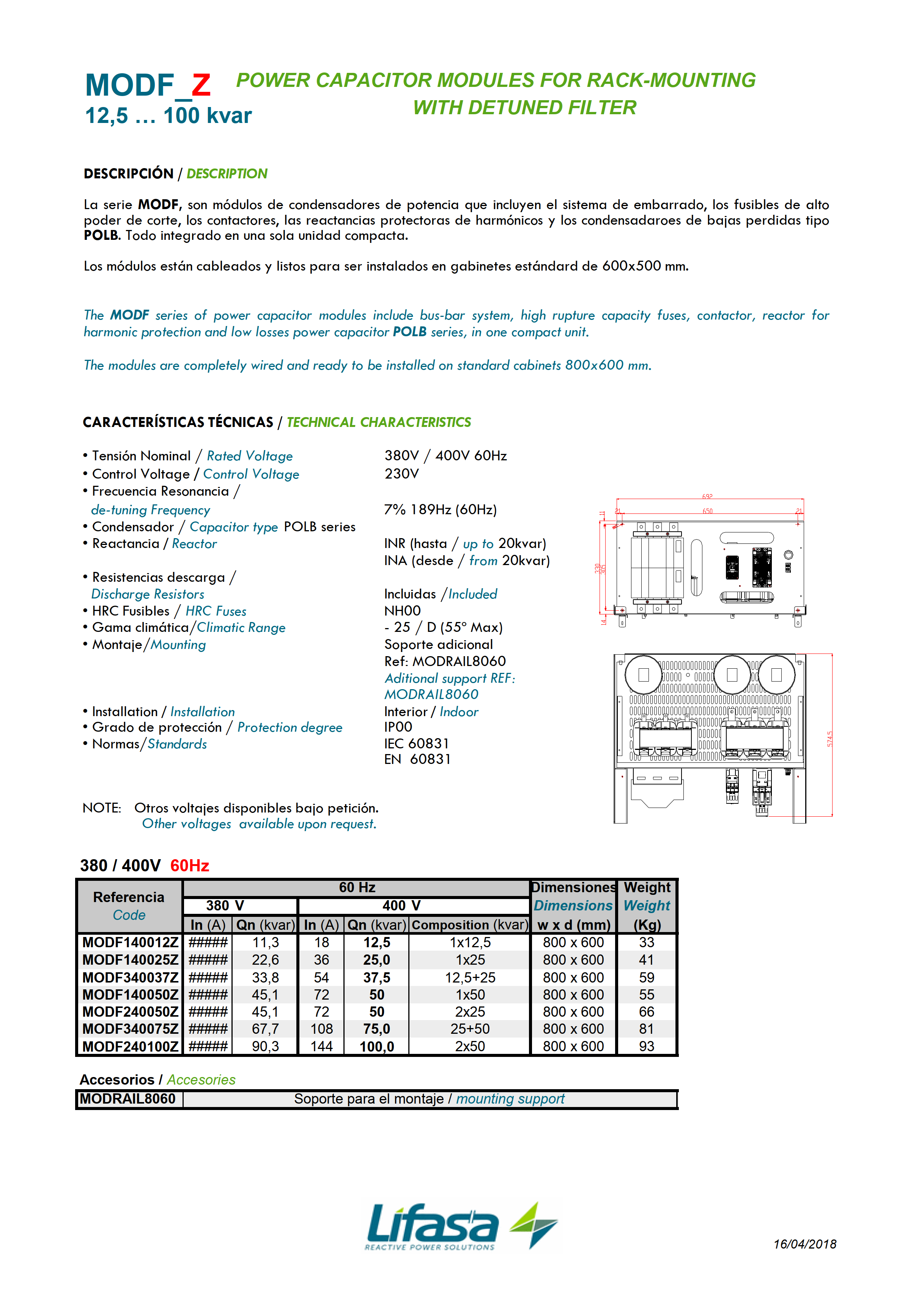

Voltage | 400/440 Vca |
Auxiliary voltage | 230 V |
Frequency | 50 / 60 Hz |
Resonance freq. | 189 Hz (7%) |
Capacitor | Tipo POLB |
Reactor | INR Type (<20 kvar) INA Type (≥20 kvar) |
Fuses | NH00 |
Temperature | -40/+ 55?C |
Protection | IP00 |
Installation | Indoor |
Other powers, voltages and frequencies on request.
440V | |||||||
Code | 50 Hz | Dimensions w x d(mm) | Weight (Kg) | ||||
440 V | 400 V | ||||||
In (A) | Qn (kvar) | In (A) | Qn (kvar) | ?Composition (kvar) | |||
MODF144015 | 20 | 15 | 18 | 12,5 | 1×12,5 | 800×600 | 33 |
MODF144030 | 39 | 30 | 36 | 25,0 | 1×25 | 800×600 | 41 |
MODF344045 | 59 | 45 | 54 | 37,5 | 12,5+25 | 800×600 | 59 |
MODF144060 | 79 | 60 | 72 | 50 | 1×50 | 800×600 | 55 |
MODF244060 | 79 | 60 | 72 | 50 | 2×25 | 800×600 | 66 |
MODF344090 | 118 | 90 | 108 | 75,0 | 25+50 | 800×600 | 81 |
MODF244120 | 157 | 120 | 144 | 100,0 | 2×50 | 800×600 | 93 |
380V / 400V 60Hz | |||||||
Code | 50 Hz | Dimensions w x d(mm) | Weight (Kg) | ||||
440 V | 400 V | ||||||
In (A) | Qn (kvar) | In (A) | Qn (kvar) | ?Composition (kvar) | |||
MODF140012Z | 11,3 | 18 | 12,5 | 1×12,5 | 800×600 | 33 | |
MODF140025Z | 22,6 | 36 | 25,0 | 1×25 | 800×600 | 41 | |
MODF340037Z | 33,8 | 54 | 37,5 | 12,5+25 | 800×600 | 59 | |
MODF140050Z | 45,1 | 72 | 50 | 1×50 | 800×600 | 55 | |
MODF240050Z | 45,1 | 72 | 50 | 2×25 | 800×600 | 66 | |
MODF340075Z | 67,7 | 108 | 75,0 | 25+50 | 800×600 | 81 | |
MODF240100Z | 90,3 | 144 | 100,0 | 2×50 | 800×600 | 93 | |
Accessories | |||||||
MODRAIL8060 | mounting support |
