Non-Contact Voltage Tester Flashlight

NCVT-3

  • Provides non-contact detection of AC voltage
  • Detects 12 to 1000V AC with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function
  • Visual LED bar graph indicates the presence of voltage – the higher the voltage sensed, or the closer to the voltage source, the more LEDs light up
  • Bar graph visual voltage indicator utilizes up to five vibrant LEDs for easy interpretation/viewing
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
  • ”Auto Power-Off” conserves and extends battery life
  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • IP67: Dustproof and waterproof
  • 6.6 feet / 2 meter drop protection
  • CAT IV safety rating for 1000V

非接触式电压测试仪手电筒

NCVT-3

  • 提供交流电压的非接触式检测
  • 检测12至1000V AC,同时具有视觉和听觉电压指示
  • 明亮的手电筒照亮工作区域,可以独立于电压检测功能使用
  • 可视LED条形图表示存在电压 – 感测到的电压越高,或者越接近电压源,LED点亮的越多
  • 条形图可视电压指示器最多可使用五个充满活力的LED,便于解释/查看
  • 可听电压指示器以更高的频率发出蜂鸣声,感测到的电压越高,或者越接近电压源
  • ”自动关机”可以节省并延长电池寿命
  • 带O形圈的螺纹电池盖可确保防尘和防水
  • 轻巧紧凑的工具,带有口袋夹,便于存放和快速访问
  • IP67:防尘防水
  • 6.6英尺/ 2米防坠落保护
  • CAT IV安全等级为1000V

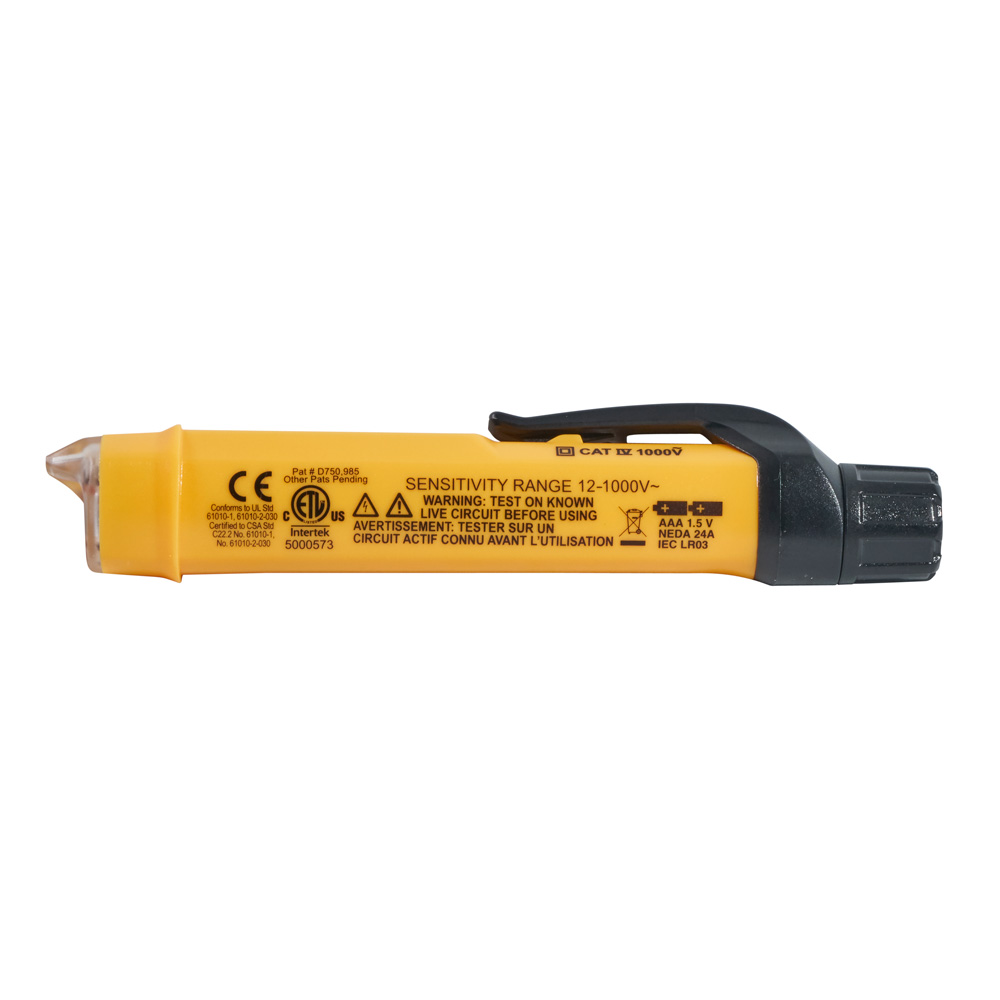

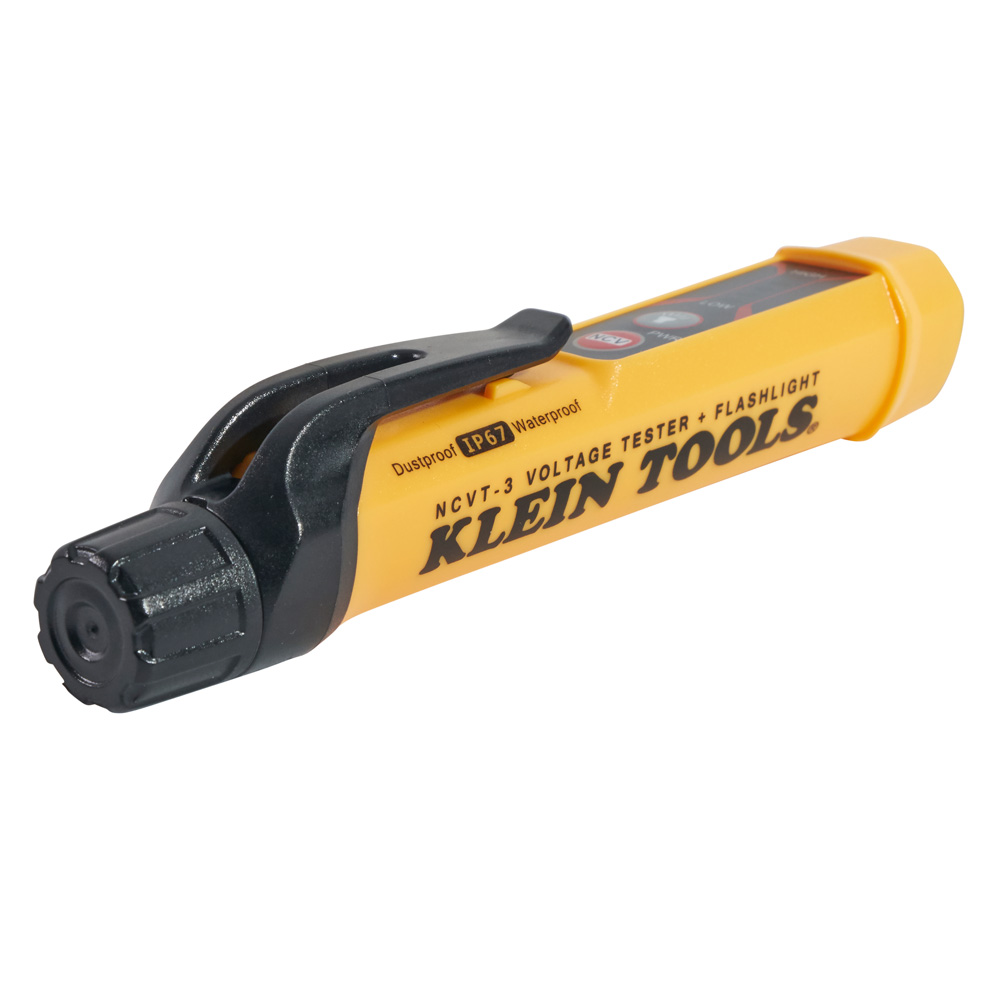

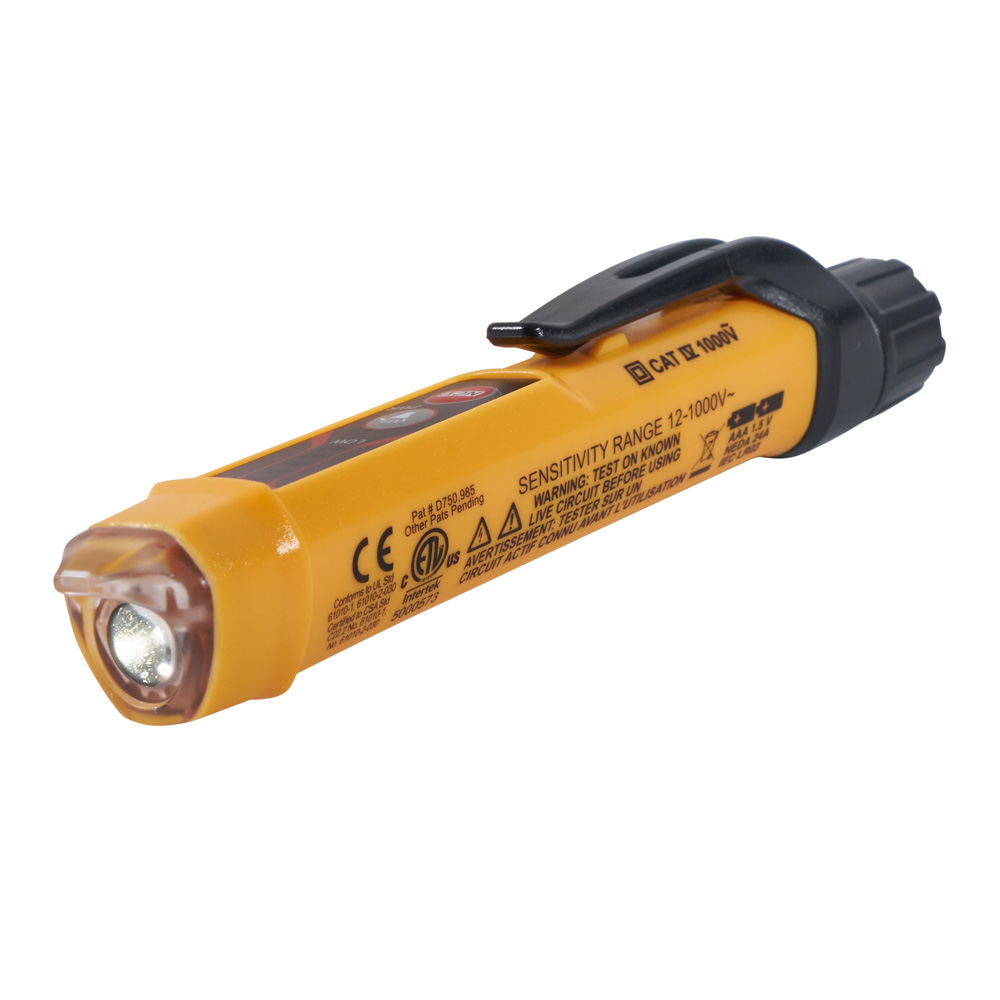

The NCVT-3 is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12-1,000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3 is rugged enough for any job site.

Specifications
Drop Protection:
6.6 ft (2 m)
Voltage:
12 – 1000V AC
Frequency:
50 – 500 Hz
Pollution Degree:
2
Ingress Protection:
IP67: Dustproof and Waterproof
Standard:
CAT IV 1000V
Weight w/Batteries:
2.5 oz (71 g)
Batteries:
2 x AAA
Overall Length:
5.828” (148 mm)
Overall Height:
1.156” (29.4 mm)
Overall Width:
0.719” (18.3 mm)
Weight:
1.2 oz (34 g)
UPC:
092644690082
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

NCVT-3是一款带有集成手电筒的非接触式电压测试仪。电压传感器可检测12-1,000V AC,并指示电缆,电线,断路器,灯具,开关,插座和电线中的电压以及门铃,恒温器,低压照明和灌溉系统中的交流电压。包括视觉和听觉信号。NCVT-3坚固耐用,适用于不同作业现场。

产品规格
掉落保护:
6.6英尺(2米)
电压:
12 – 1000V AC
频率:
50 – 500赫兹
污染程度:
2
入侵保护:
IP67:防尘防水
标准:
CAT IV 1000V
电池重量:
2.5盎司(71克)
电池:
2 x AAA
总长度:
5.828”(148毫米)
总体高度:
1.156”(29.4 mm)
总宽度:
0.719”(18.3 mm)
重量:
1.2盎司(34克)
UPC:
092644690082
警告
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 切勿假设中性线或接地线断电。多线分支电路中的中性线可以在断开时通电,并且必须在处理之前重新测试。
