非接触电压测试笔,双量程,带激光笔

NCVT-5A

  • 电压测试仪可用于非接触式确定电缆,电线,断路器,开关,插座和电线中的交流电压,以及安全,娱乐,通信,环境控制和灌溉系统中的交流电压
  • 双量程测试:选择12到1000V AC,适合低压系统,例如门铃,环境控制或灌溉系统,或选择70到1000V AC,适合检测系统,例如电源
  • 集成了明亮的激光指示器,可在工作现场远距离识别感兴趣的物体
  • 简单易用的直观界面易于在电压检测范围之间切换,并易于确定当前有效范围
  • 当检测到交流电压时,同时提供视觉和听觉电压指示器
  • 可听见的电压指示器以较高的频率发出哔哔声,表示感测到的电压越高,或者离电压源越近
  • 为承受9.9英尺/ 3米高的跌落而设计
  • “自动关机”可延长电池寿命
  • 螺纹电池盖
  • 带有口袋夹的轻巧紧凑工具,提供了方便的存储和快速访问
  • CAT IV 1000V安全等级

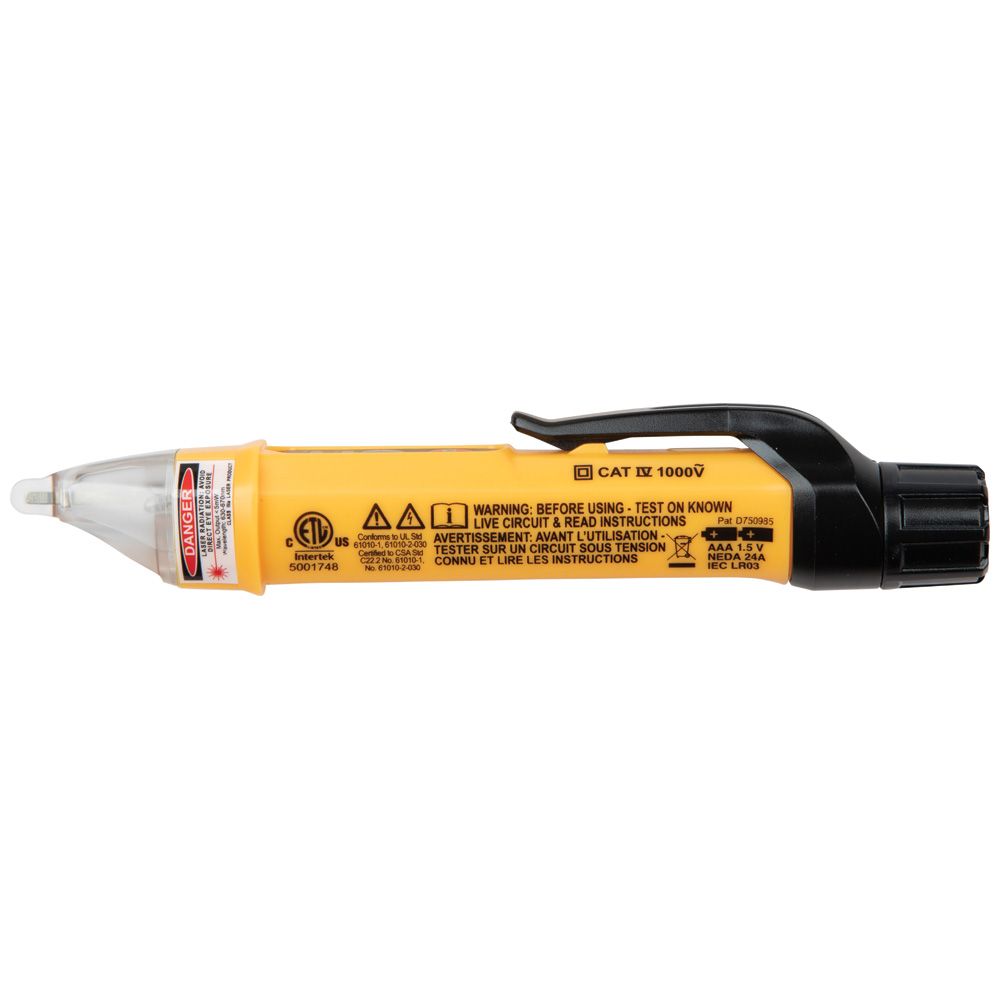

Non-Contact Voltage Tester Pen, Dual Range, with Laser Pointer

NCVT-5A

  • Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
  • Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply

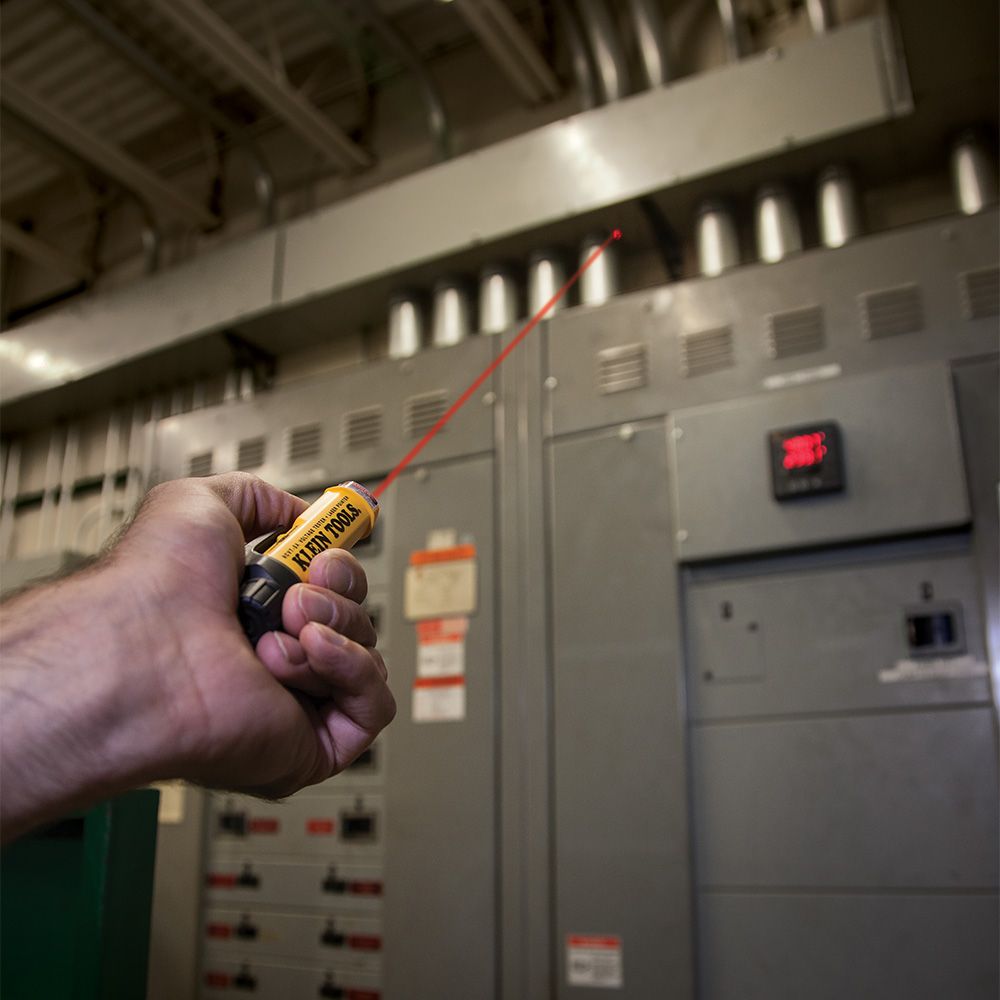

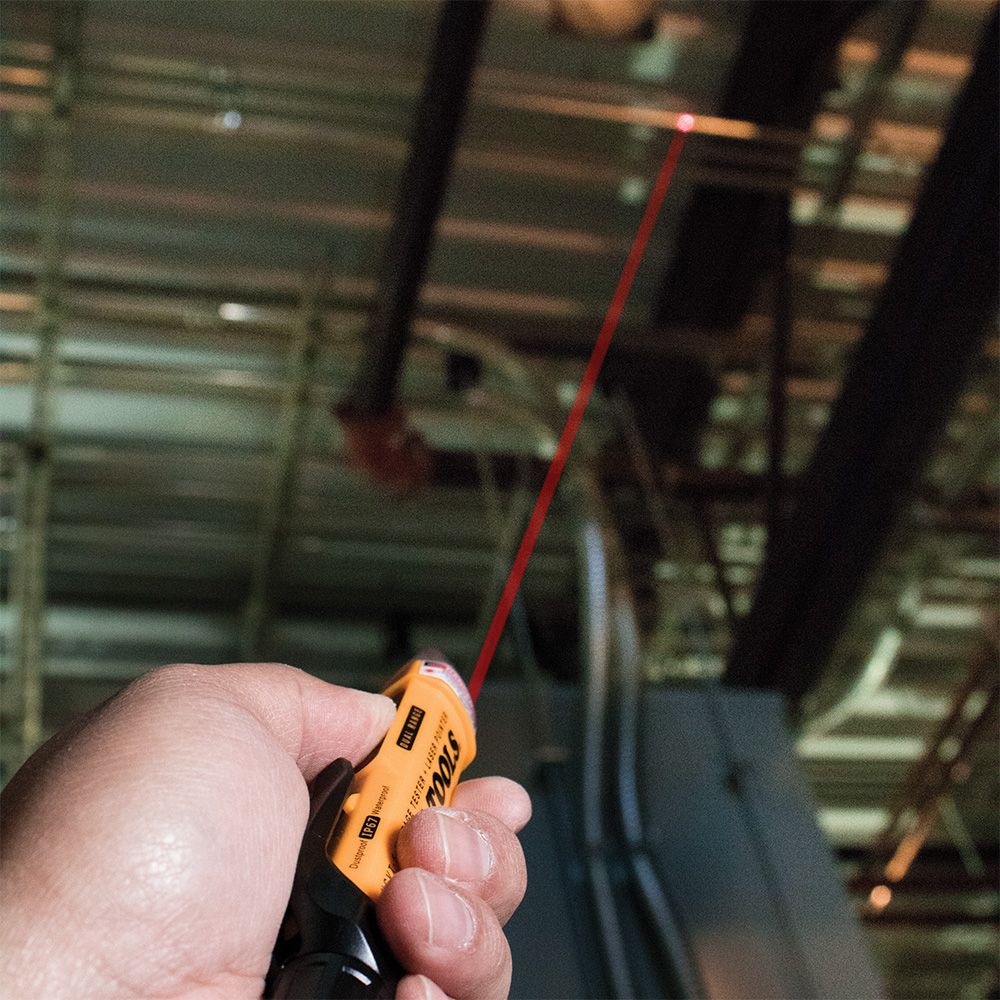

  • Bright integrated laser pointer for identifying objects of interest at distance on the jobsite

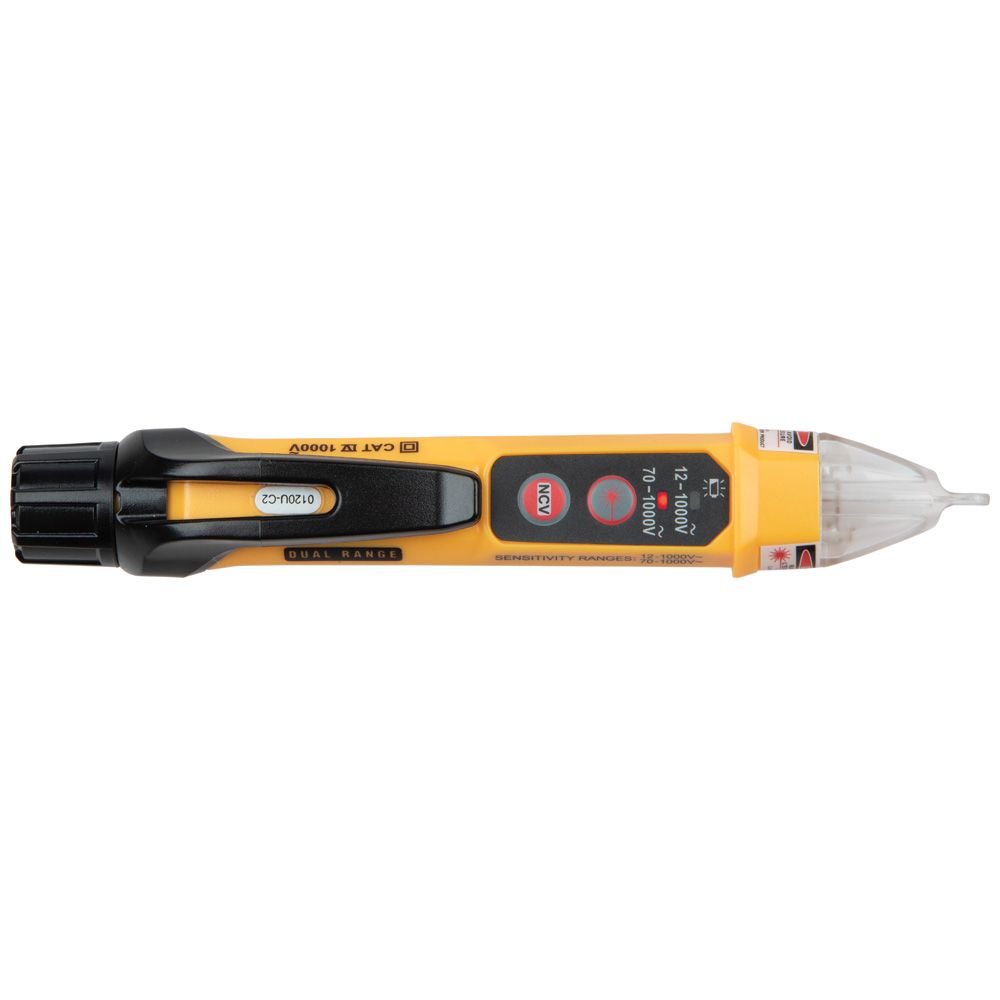

  • Simple to use intuitive interface is easy to change between voltage detection ranges and easy to determine the currently active range

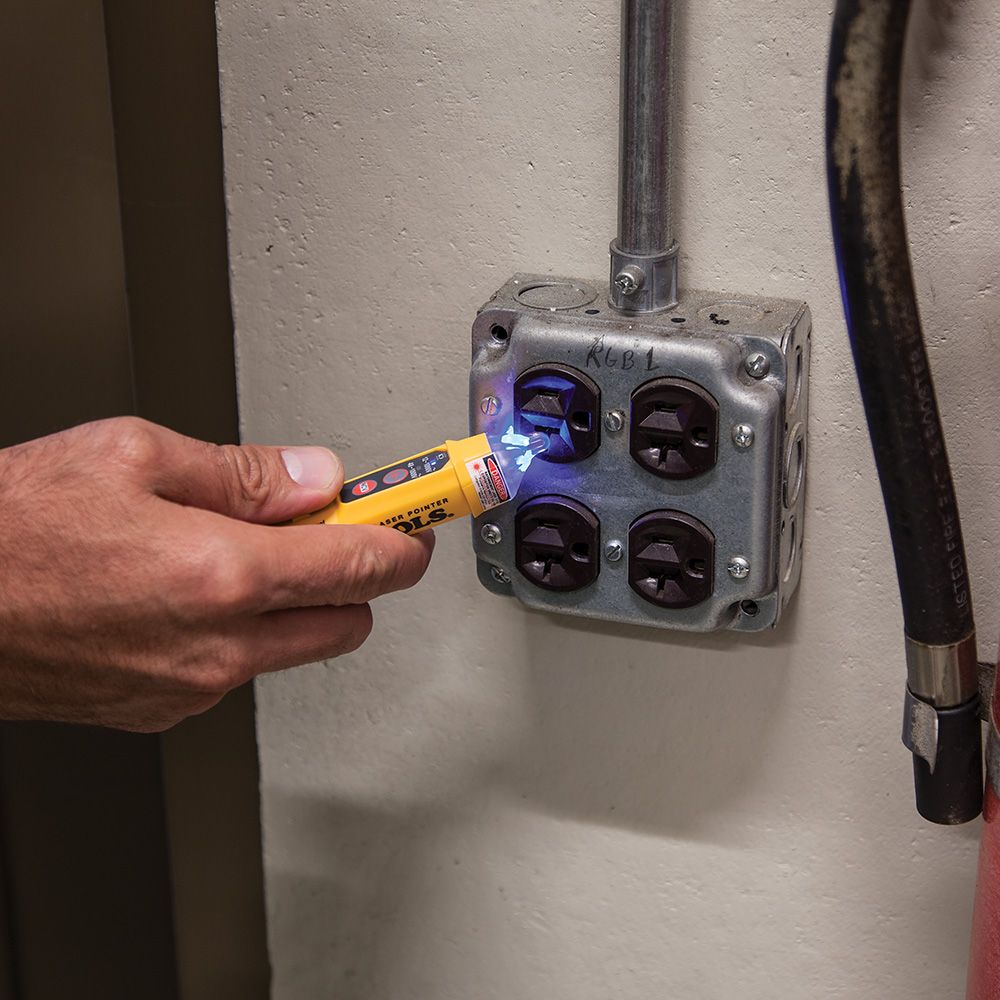

  • Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
  • Built to withstand a 9.9-Foot / 3-meter drop
  • ”Auto Power-Off” conserves battery life

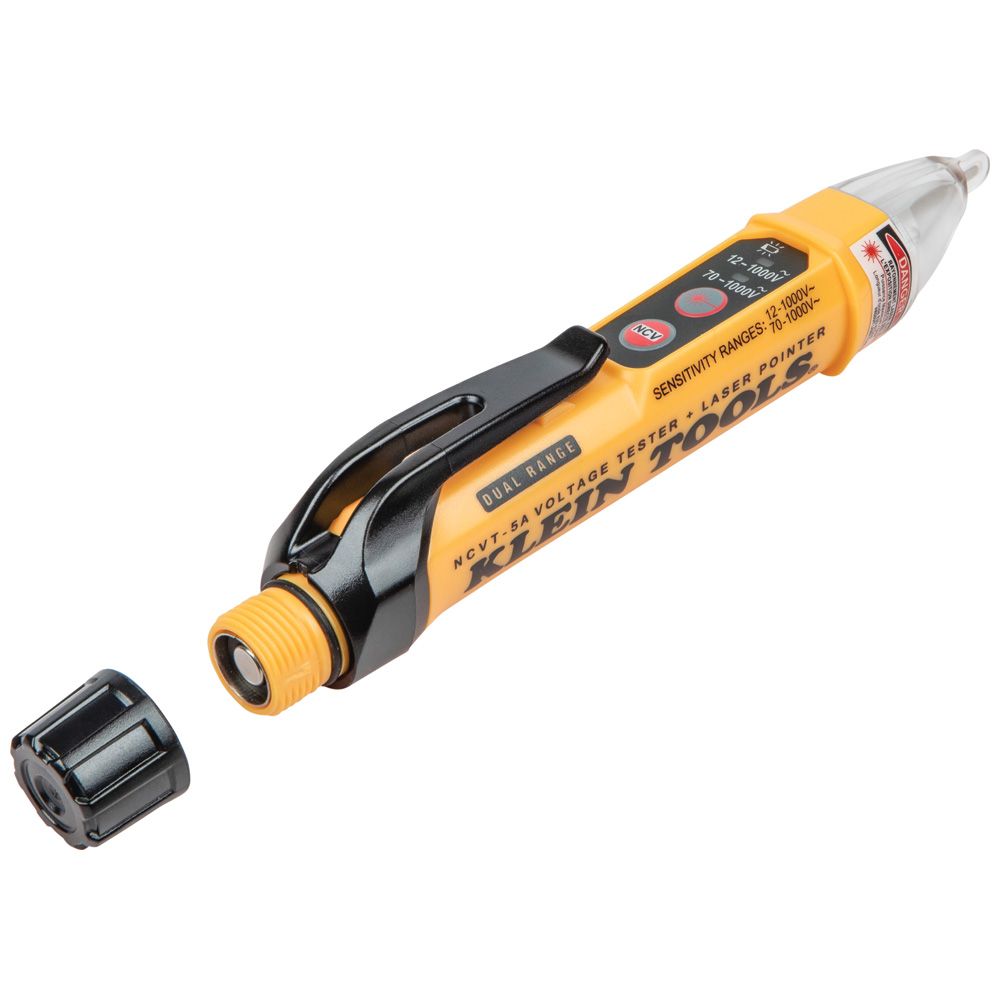

  • Screw-thread battery cap
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • CAT IV 1000V safety rating

Klein Tools NCVT-5A是具有集成激光指示器的双量程非接触电压测试仪(NCVT)。可以将测试仪设置为检测70至1000V AC(模式1)或12至1000V AC(模式2)的电压。当感测到更高的电压或与电压源的距离越来越近时,高音调警报会以更高的频率发出蜂鸣声。激光指示器可以独立于NCVT或与NCVT同时起作用。CAT IV 1000V安全等级。

技术指标
类型:
非接触电压测试仪
应用:
双量程非接触式检测12-1000 VAC或70-1000V AC交流电压的存在
特殊功能:
集成的高强度红色激光笔,双量程测试仪(70-1000V; 12V-1000V)交流电压检测,在存在交流电压的情况下同时具有可视和可听电压指示器
材料:
塑料和电子组件
跌落保护:
9.8英尺(3m)
电压:
12至1000 VAC
频率:
50至500 Hz
污染度:
2
标准:
CAT IV 1000V;?激光:IIIa级,630-670nm,至大功率<5mW
包括:
电池
电池:
2个AAA
电池寿命:
激光开启:31小时;带视觉和听觉警报的NCV开启:25小时
总长度:
6英寸(15.2厘米)
总高度:
0.96英寸(2.4厘米)
总宽度:
1.16英寸(2.9厘米)
重量:
1.5盎司(43克)
UPC:
092644692949
警告事项
  • 每次使用前,请阅读,理解并遵循所有测试和测量设备随附和/或随附的所有说明,注意事项和警告。
  • 切勿假定零线或地线已断电。断开时,多线分支电路中的中性点可能会通电,在处理之前必须重新测试。
  • 激光辐射,IIIa类激光。请勿将激光束直射到眼睛中,请勿凝视光束或请勿使用光学仪器直接观察,因为这可能会导致严重而永久的眼睛伤害。
  • 以制造商指定的方式以外的任何其他方式使用此测试仪可能会损害安全操作,从而导致严重的人身伤害甚至死亡。

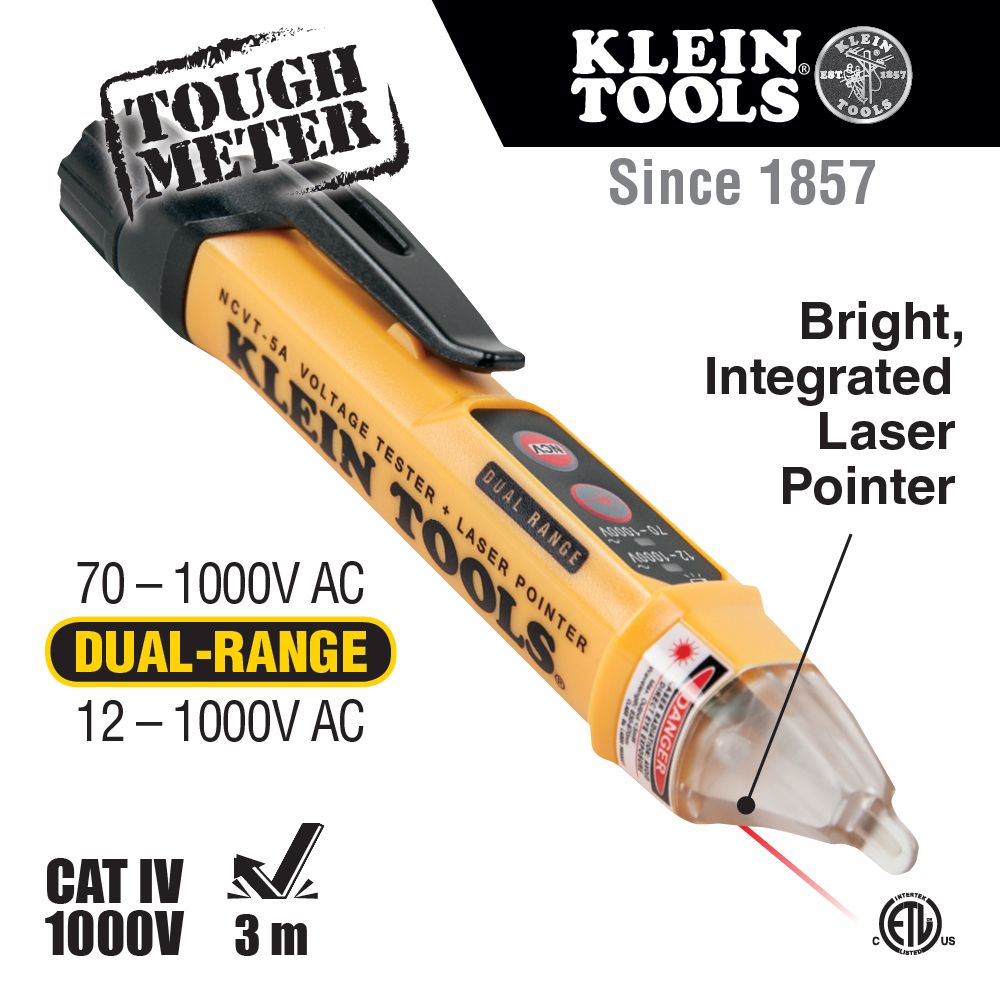

The Klein Tools NCVT-5A is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.

Specifications
Type:
Non-Contact Voltage Tester
Application:
Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
Special Features:
Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage
Material:
Plastic and Electronic Assemblies
Drop Protection:
9.8′ (3 m)
Voltage:
12 to 1000 VAC
Frequency:
50 to 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
Included:
Batteries
Batteries:
2 x AAA
Battery Life:
Laser On: 31 Hrs; NCV On with Visual and Audible Alerts: 25 Hrs
Overall Length:
6” (15.2 cm)
Overall Height:
0.96” (2.4 cm)
Overall Width:
1.16” (2.9 cm)
Weight:
1.5 oz (43 g)
UPC:
092644692949
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • LASER RADIATION, Class IIIa laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
  • Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death
