Dual-Range Non-Contact Voltage Tester w/Laser Pointer

NCVT-5

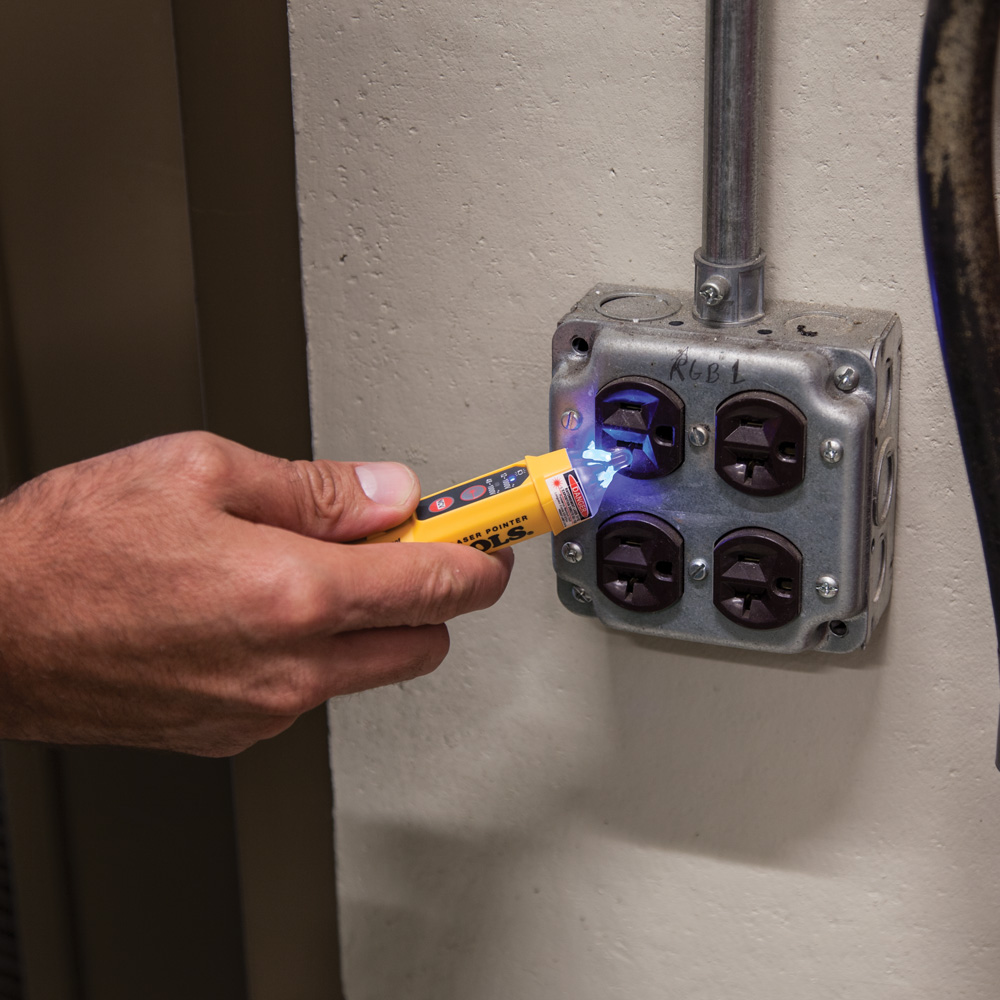

  • Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
  • Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply

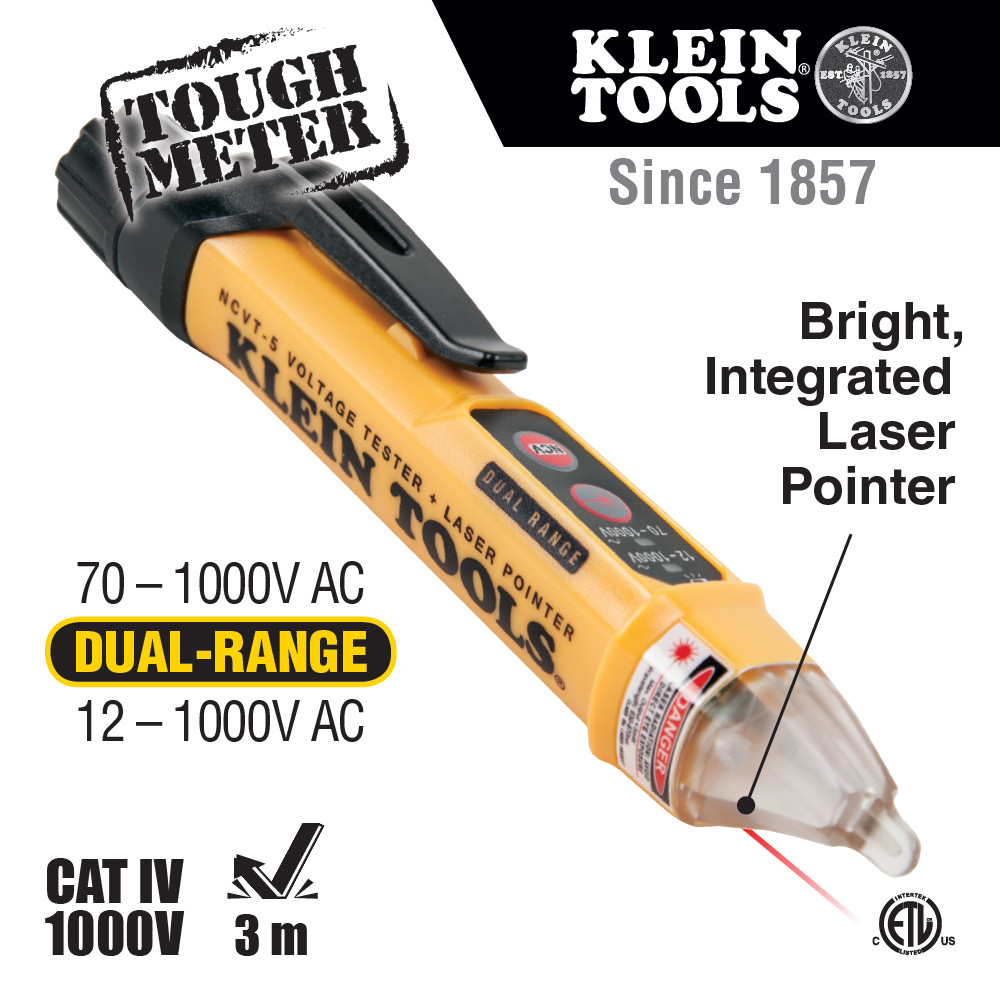

  • Bright integrated laser pointer for identifying objects of interest at distance on the jobsite

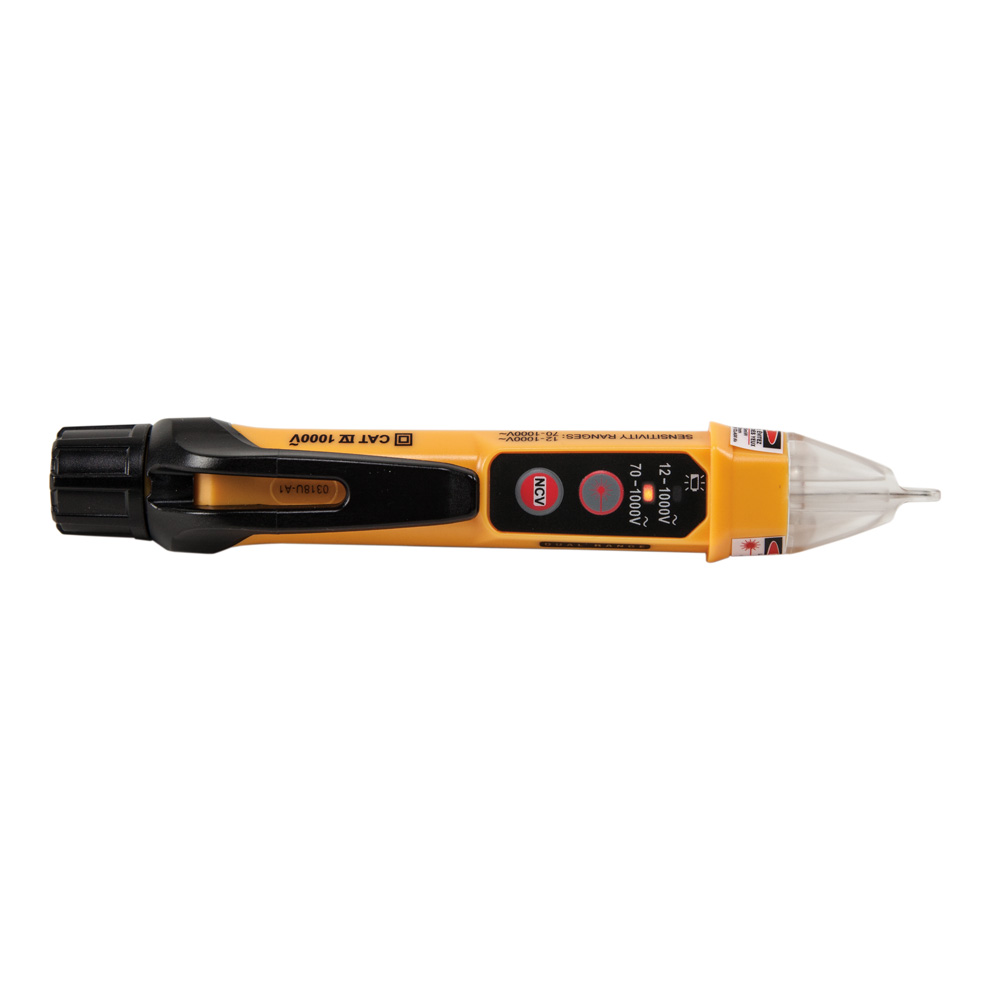

  • Simple to use intuitive interface is easy to change between voltage detection ranges and easy to determine the currently active range
  • Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
  • Built to withstand a 9.9-Foot / 3-meter drop
  • ”Auto Power-Off” conserves battery life

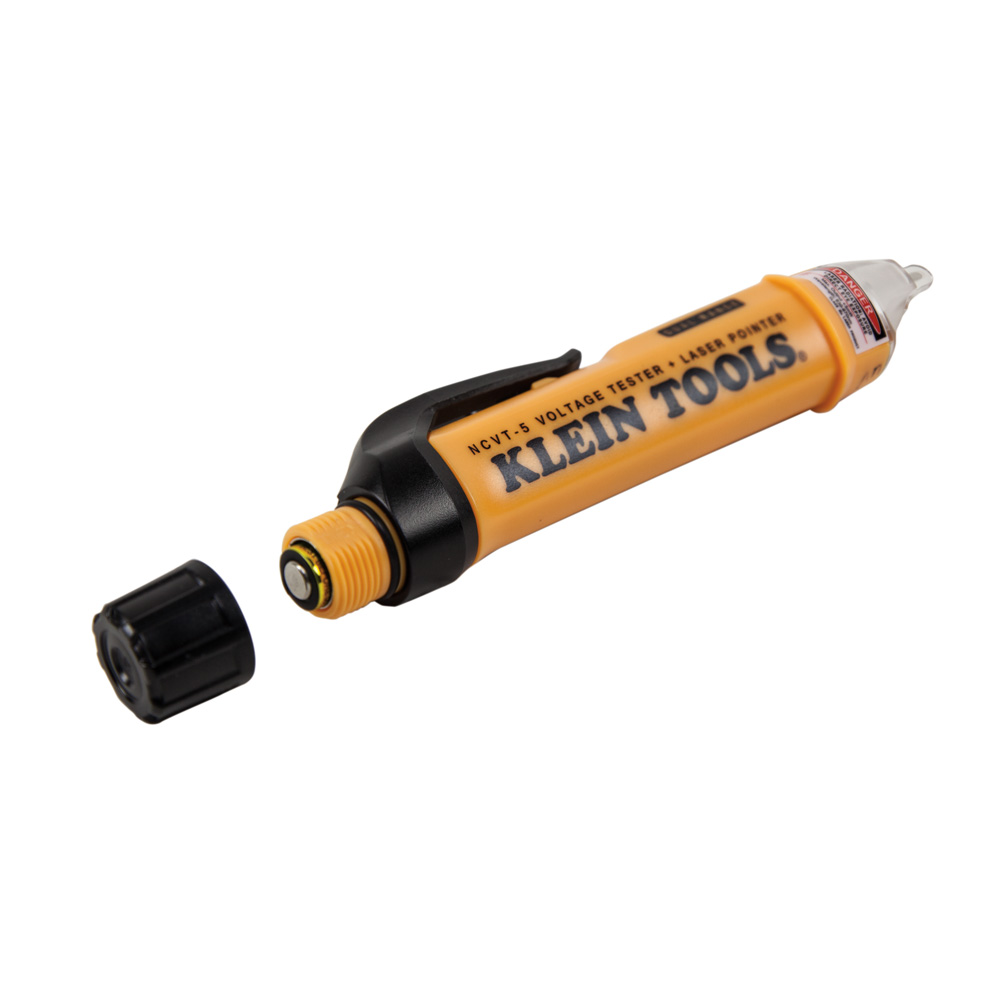

  • Screw-thread battery cap
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • CAT IV 1000V safety rating

具有激光指示器的双量程非接触式电压测试仪

NCVT-5

  • 提供非接触式确定电缆，电线，断路器，开关，插座和电线中的交流电压，以及安全，娱乐，通信，环境控制和灌溉系统中的交流电压
  • 双量程测试：选择12至1000V AC，适用于门铃，环境控制或灌溉系统等低压系统，或选择70至1000V AC，非常适合检测电源等系统
  • 明亮的集成激光指示器，用于识别工地上距离感兴趣的物体
  • 简单易用的直观界面易于在电压检测范围之间切换，易于确定当前有效范围
  • 检测到交流电压时，同时提供视觉和听觉电压指示
  • 可听电压指示器以更高的频率发出蜂鸣声，感测到的电压越高，或者越接近电压源
  • 可承受9.9英尺/ 3米的跌落
  • ”自动关机”可延长电池寿命
  • 螺纹电池盖
  • 轻巧紧凑的工具，带有口袋夹，便于存放和快速访问
  • CAT IV 1000V安全等级

The Klein Tools NCVT-5 is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.

Specifications
Type:
Non-Contact Voltage Tester
Application:
Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000V AC or from 70-1000V AC
Special Features:
Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
Material:
Plastic and Electronic Assemblies
Drop Protection:
9.9′ (3 m)
Voltage:
12 – 1000V AC
Frequency:
50 – 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
Included:
2 x AAA Batteries
Weight w/Batteries:
2.5 oz (72g )
Batteries:
2 x AAA
Battery Life:
Laser On: ~31 Hrs; NCV On with Visual and Audible Alerts: ~25 Hrs
Overall Length:
6.0” (152.4 mm)
Overall Height:
0.96” (24.4 mm)
Overall Width:
1.16” (29.4 mm)
Weight:
1.5 oz (43 g)
UPC:
092644691430
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • LASER RADIATION, Class IIIa laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
  • Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

Klein Tools NCVT-5是一款带有集成激光指示器的双量程非接触式电压测试仪（NCVT）。可以将测试仪设置为检测70至1000V AC（模式1）或12至1000V AC（模式2）的电压。当感测到更高的电压或者接近电压源时，高音调的警报会以更高的频率发出蜂鸣声。激光指示器可以独立于NCVT或与NCVT同时起作用。CAT IV 1000V安全等级。

产品规格
类型：
非接触式电压测试仪
应用：
双量程非接触式检测12-1000V AC或70-1000V AC的交流电压
特殊功能：
集成高强度红色激光指示器，双量程测试仪（70-1000V; 12V-1000V）交流电压检测，在交流电压存在的同时视觉和听觉电压指示器
材料：
塑料和电子组件
掉落保护：
9.9’（3米）
电压：
12 – 1000V AC
频率：
50 – 500赫兹
污染程度：
2
标准：
CAT IV 1000V;?激光：IIIa级，630-670nm，最大功率<5mW
包括：
2节AAA电池
电池重量：
2.5盎司（72克）
电池：
2 x AAA
电池寿命：
激光打开：~31小时;?NCV On with Visual and Audible Alerts：~25小时
总长度：
6.0”（152.4 mm）
总体高度：
0.96”（24.4 mm）
总宽度：
1.16”（29.4 mm）
重量：
1.5盎司（43克）
UPC：
092644691430
警告
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 切勿假设中性线或接地线断电。多线分支电路中的中性线可以在断开时通电，并且必须在处理之前重新测试。
  • 激光辐射，IIIa类激光。切勿将激光束直射入眼睛，不要直视光束，或不要直接用光学仪器观察，因为这会导致严重和永久性的眼睛损伤。
  • 以制造商指定的方式使用本测试仪会影响安全操作，导致严重伤害或死亡
