带激光测距仪的非接触式电压测试仪

NCVT-6

  • 提供非接触式确定电缆，电线，断路器，开关，插座和电线中的交流电压，以及安全，娱乐，通信，环境控制和灌溉系统中的交流电压
  • 通过视觉和听觉指示器检测12至1000V的交流电压
  • 包含一个66英尺（20米）激光测距仪，可以米为单位，英寸为小数，英寸为分数，英尺为小数，或英尺为分数
  • 高可见度反向对比度显示，可在低光照条件下更好地观看
  • 激光等级II，630至670nm，最大值功率<1mW
  • 简单易用的直观界面;在激光距离测量和电压检测之间轻松实现单键更改
  • 检测到交流电压时，同时提供视觉和听觉电压指示
  • 可听电压指示器以更高的频率发出蜂鸣声，感测到的电压越高，或者越接近电压源
  • 可承受6.6英尺（2米）的跌落
  • 自动关机可以节省电池并延长电池寿命
  • 螺纹电池盖
  • 带口袋夹的轻巧工具，便于日常携带和存放
  • CAT IV 1000V安全等级
  • 防护等级IP40防尘

Non-Contact Voltage Tester with Laser Distance Meter

NCVT-6

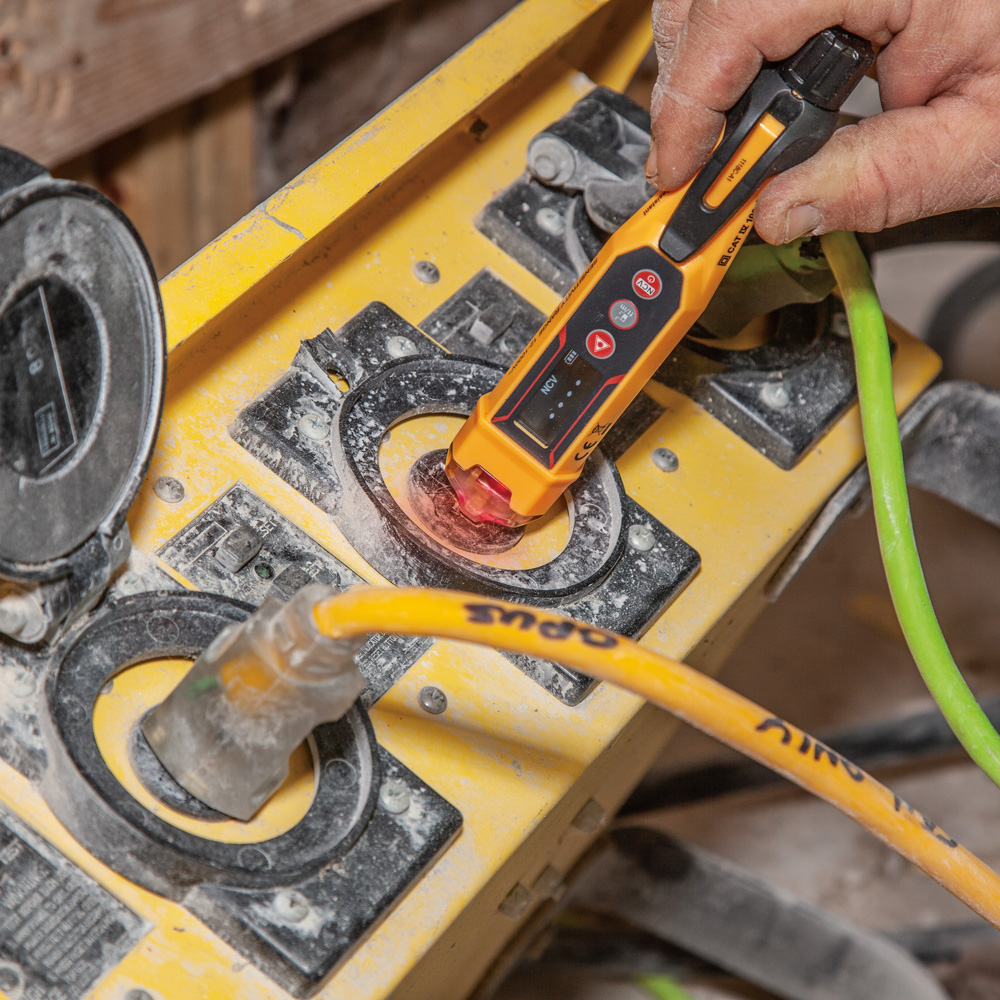

  • Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control, and irrigation systems
  • Detects AC voltage from 12 to 1000V with visual and audible indicators

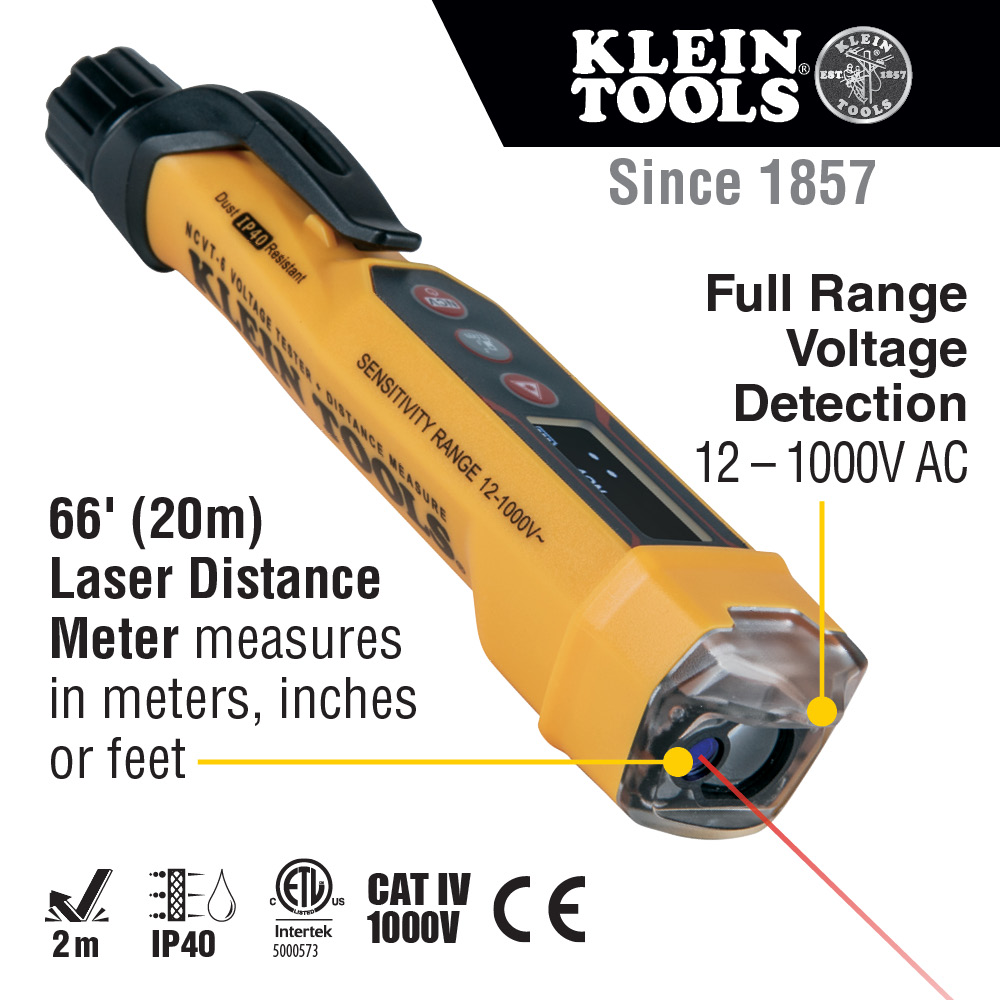

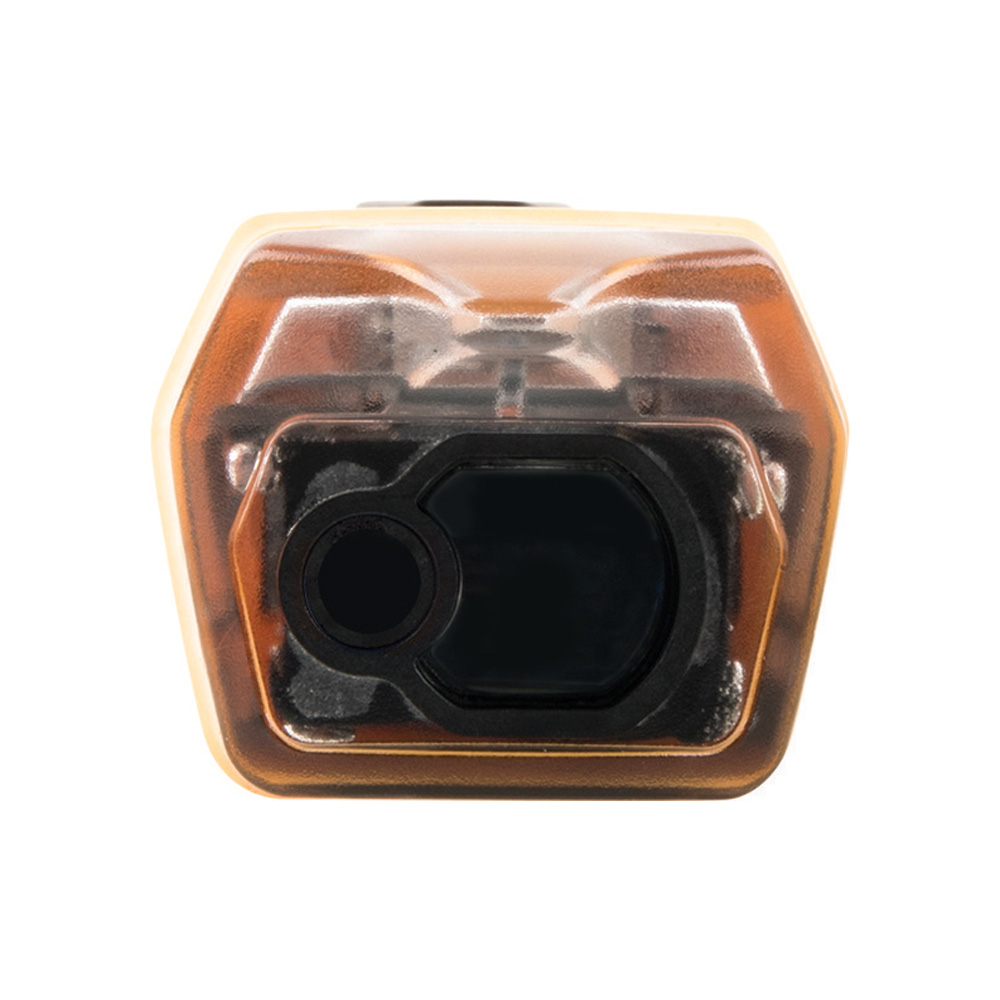

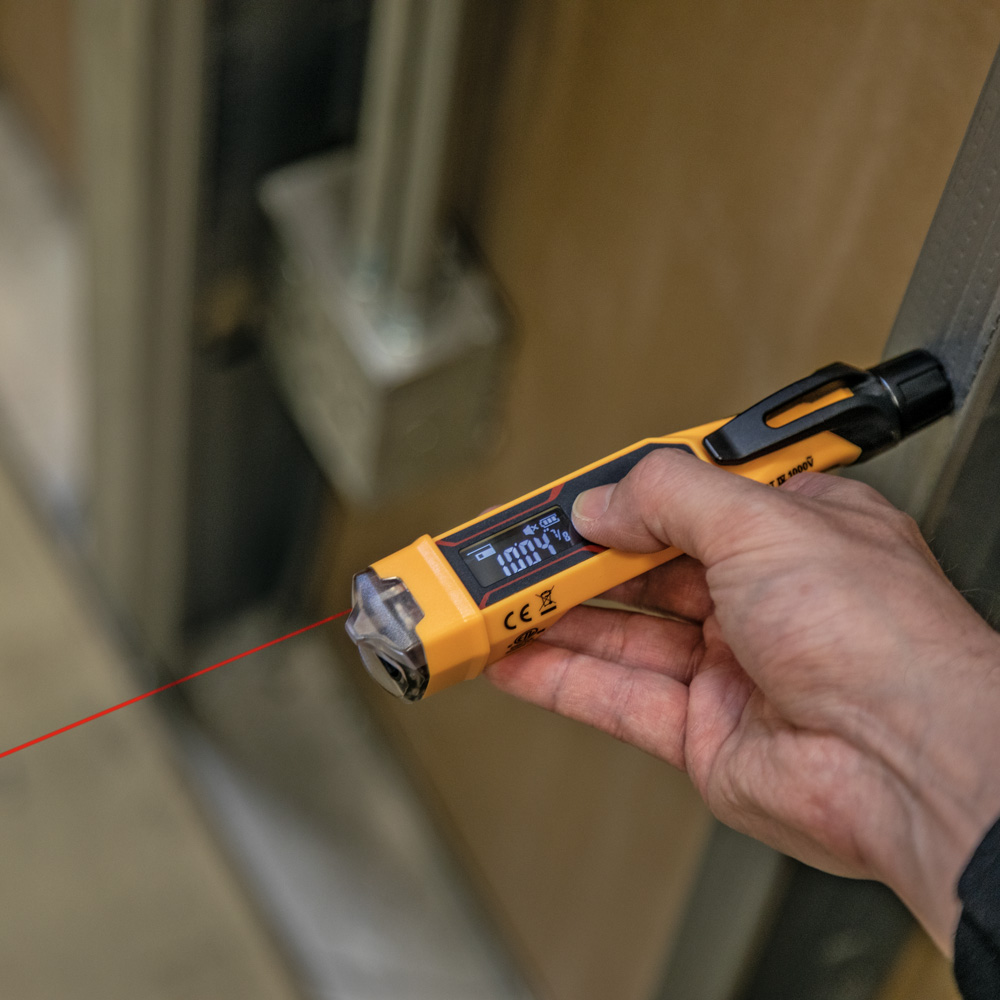

  • Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with fractions

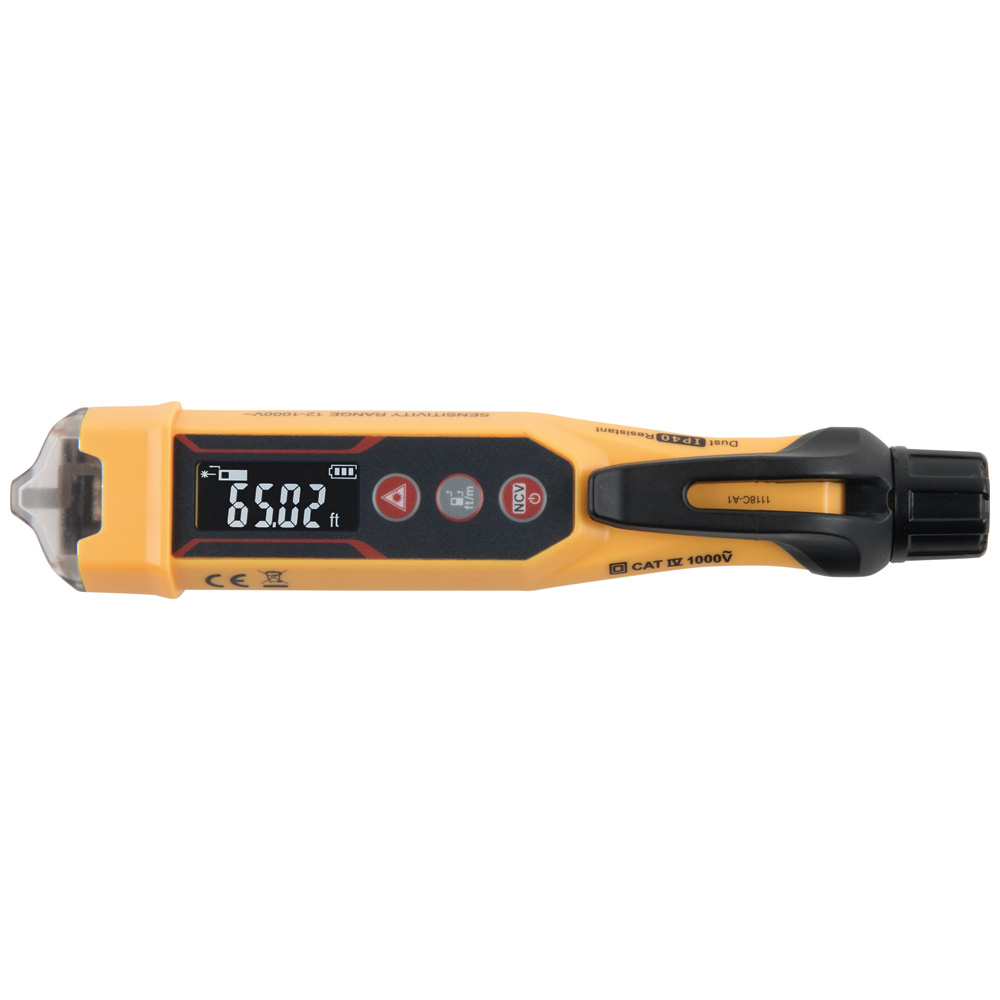

  • High-visibility reverse contrast display for better viewing in low light conditions
  • Laser Class II, 630 to 670nm, Max. Power <1mW
  • Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
  • Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
  • Built to withstand a 6.6-Foot (2 m) drop
  • Auto Power-Off conserves and extends battery life

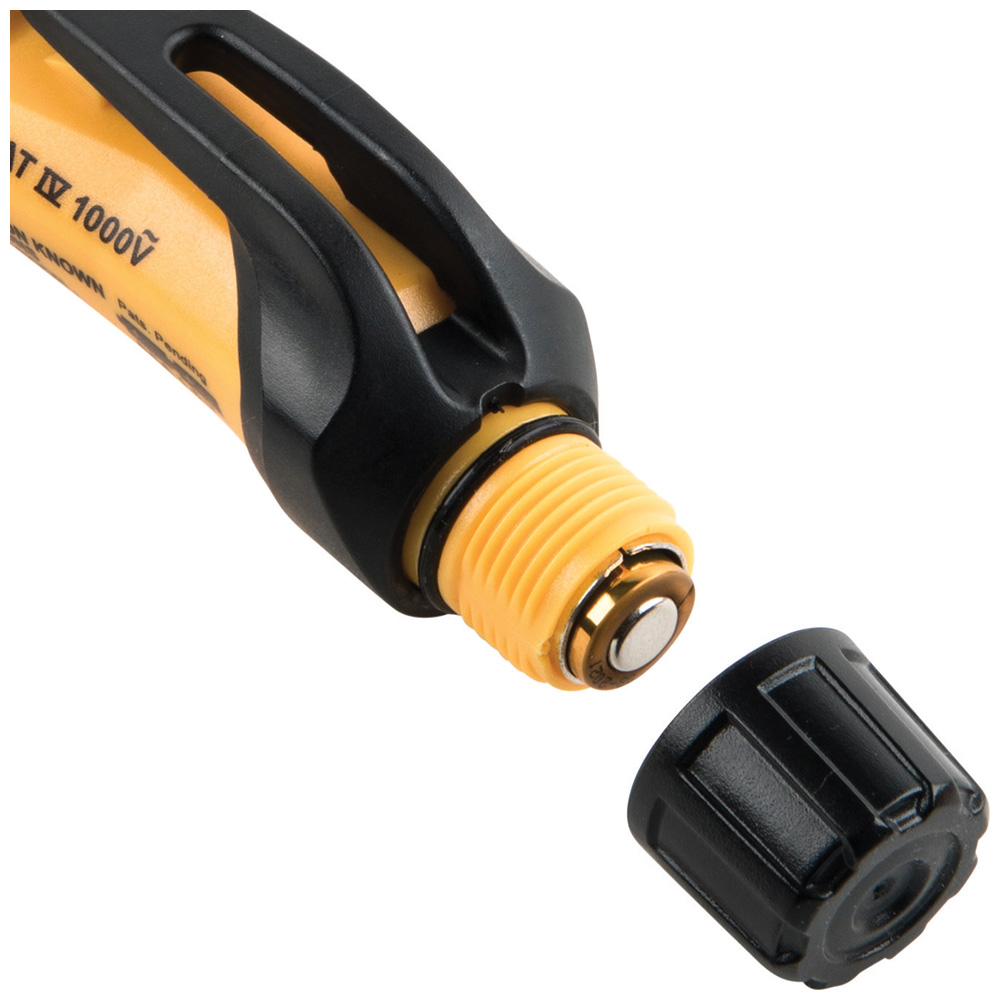

  • Screw-thread battery cap
  • Lightweight tool with pocket clip for easy everyday carrying and storage
  • CAT IV 1000V safety rating
  • Ingress Protection IP40 Dust Resistant

Klein Tools NCVT-6是一款带有集成激光测距仪的非接触式电压测试仪（NCVT）。它可以检测12至1000 VAC的全范围电压，并可以测量从2英寸（51毫米）到66英尺（20米）的距离。激光测距仪独立于NCVT，具有简单易用的直观界面。电压检测和激光距离测量之间的简单单按钮变化。

产品规格
类型：
非接触式电压测试仪
应用：
采用集成激光测距仪的非接触式检测和交流电压测试
特殊功能：
12至1000 VAC的全范围电压检测，带有视觉和听觉指示器;激光测距仪;高可见度反向对比度显示
材料：
塑料和电子组件
掉落保护：
6.6’（2 m）
电压：
12-1000 VAC
频率：
50 – 500赫兹
污染度：
2
入侵保护：
IP40防尘
标准：
CATIV 1000V，激光：II级，630nm至670nm，最大功率<1mW
包括：
两节碱性1.5V AAA
电池：
两个碱性1.5V AAA（包括）
总长度：
6.45英寸（164毫米）
总体高度：
1.21英寸（31毫米）
总宽度：
1.32英寸（34毫米）
重量：
2.5盎司（72克）
UPC：
092644692253
警告
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 切勿假设中性线或接地线断电。多线分支电路中的中性线可以在断开时通电，并且必须在处理之前重新测试。
  • 激光辐射，II类激光。切勿将激光束直射入眼睛，不要直视光束，也不要直接用光学仪器观察，因为这会导致严重和永久性的眼睛损伤。
  • 始终遵守当地和国家安全法规。使用个人防护设备，以防止暴露危险带电导体时的冲击和电弧爆炸伤害。
  • 不以制造商指定的方式使用本测试仪会影响安全操作，导致严重伤害或死亡。

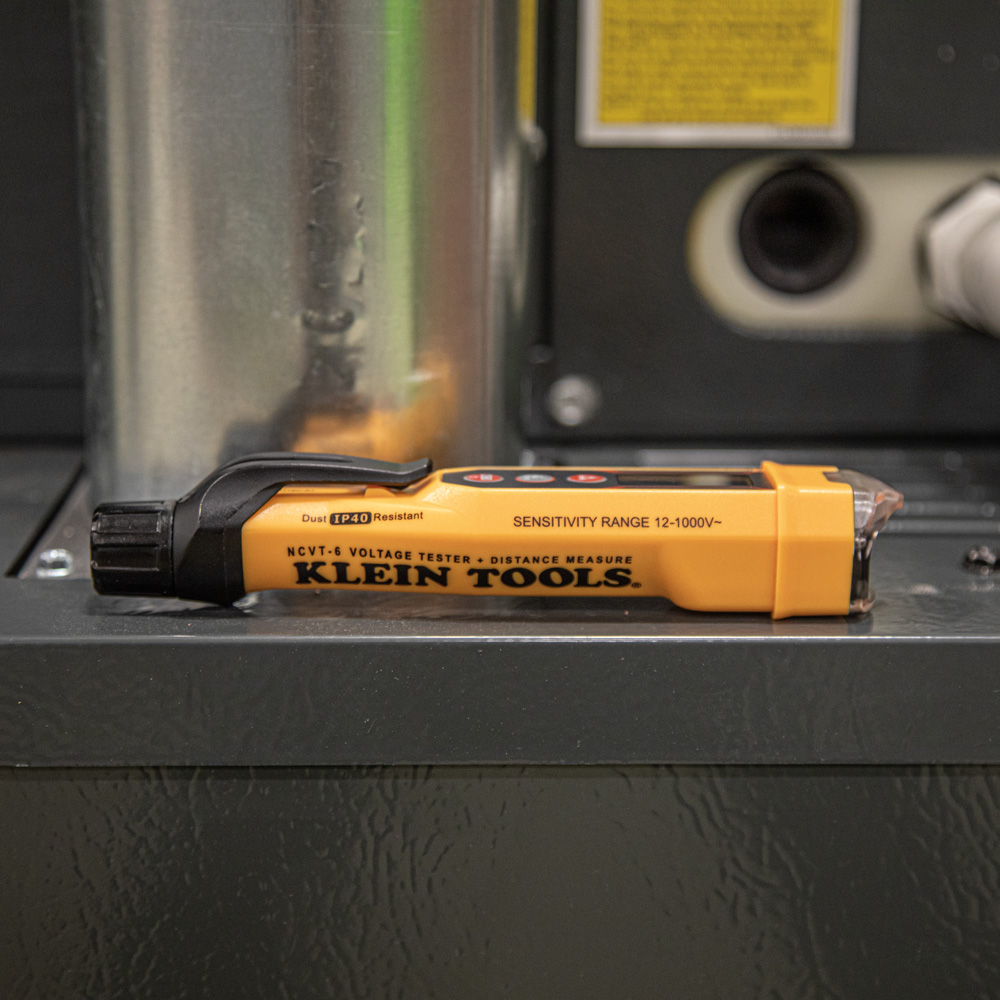

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.

Specifications
Type:
Non-Contact Voltage Tester
Application:
Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter
Special Features:
Full-Range Voltage Detection From 12-1000 VAC with Visual and Audible Indicators; Laser Distance Meter; High Visibility Reverse Contrast Display
Material:
Plastic and Electronic Assemblies
Drop Protection:
6.6′ (2 m)
Voltage:
12-1000 VAC
Frequency:
50 – 500 Hz
Pollution Degree:
2
Ingress Protection:
IP40 Dust Resistant
Standard:
CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
Included:
Two Alkaline 1.5V AAA
Batteries:
Two Alkaline 1.5V AAA (Included)
Overall Length:
6.45”(164 mm)
Overall Height:
1.21” (31 mm)
Overall Width:
1.32” (34 mm)
Weight:
2.5 oz (72 g)
UPC:
092644692253
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • LASER RADIATION, Class II laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
