带手电筒的双量程非接触电压测试仪，交流12-1000V

NCVT3P

  • 双量程功能使测试仪能够检测12至1000 V AC或70至1000V AC的电压，适用于各种低压或标准电压应用
  • 通过视觉和听觉电压指示器同时检测电压
  • 强光手电筒照亮工作区域，可以独立于电压检测功能使用
  • 绿灯表示无电压
  • 带有口袋夹的轻巧紧凑工具，提供了方便的存储和快速访问
  • 自动关闭电源功能可以节省并延长电池寿命
  • CAT IV 1000V额定值可提供扩展的操作和保护
  • 带O型圈的螺纹电池盖可确保防尘和防水
  • 6.6英尺（2 m）跌落保护
  • IP67：防尘防水
  • 符合CE要求

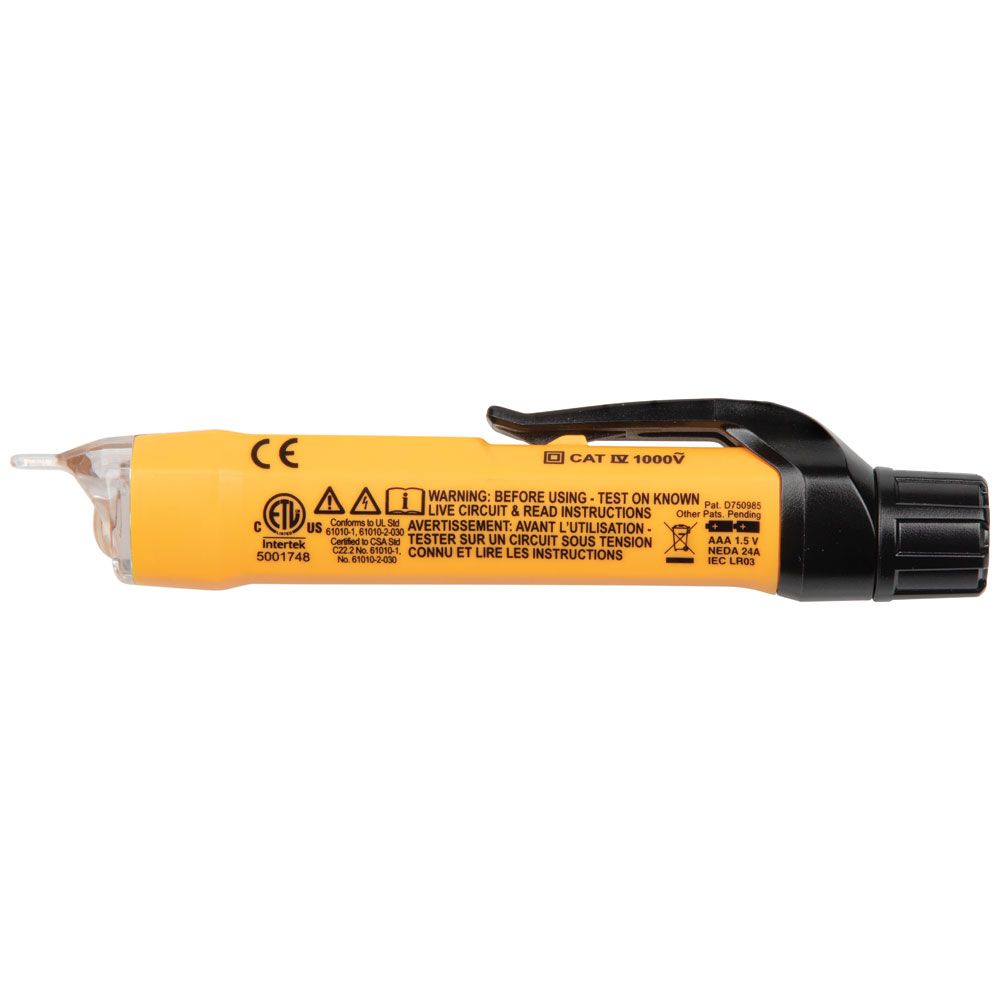

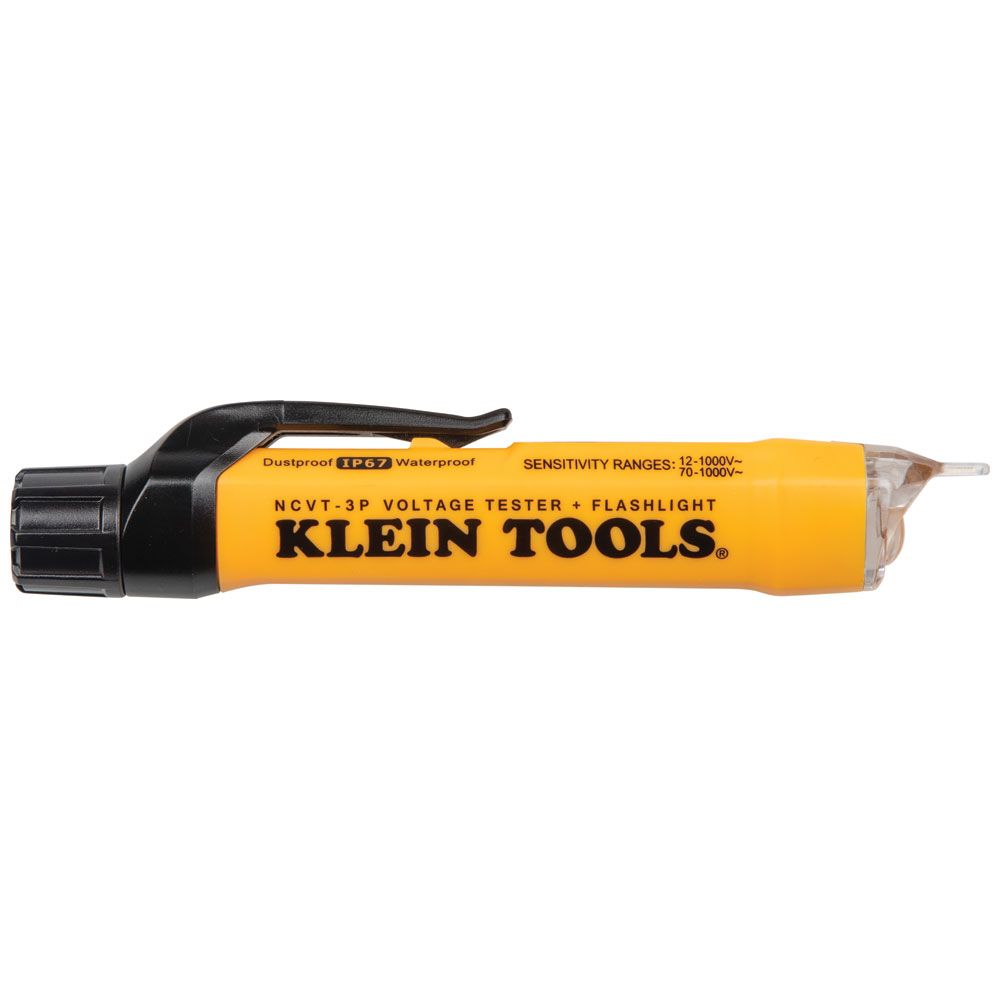

Dual Range Non-Contact Voltage Tester with Flashlight, 12 – 1000V AC

NCVT3P

  • Dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Detects voltage with simultaneous visual and audible voltage indicators

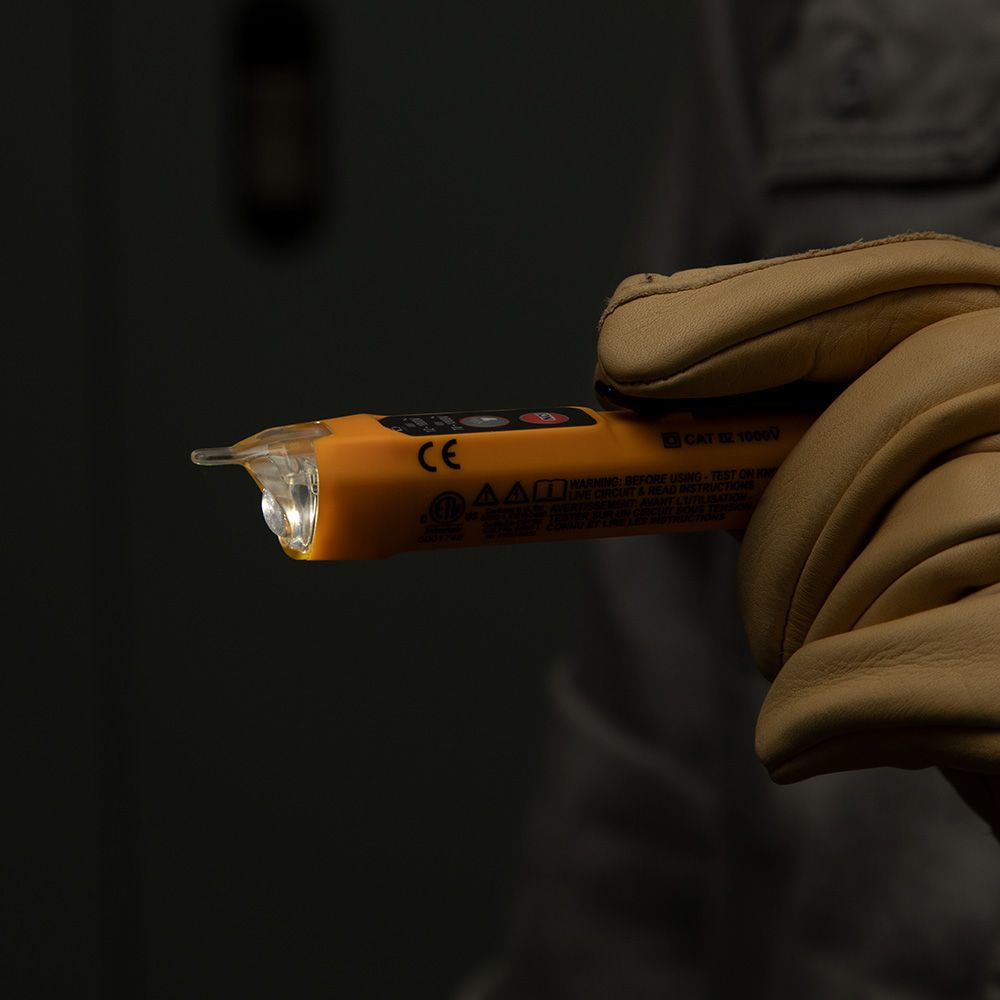

  • Bright flashlight illuminates work area and may be used independent of voltage detection function
  • Green light indicates no voltage
  • Lightweight, compact tool with pocket clip provides convenient storage and quick access
  • Auto power-off feature conserves and extends battery life
  • CAT IV 1000V rating provides expanded operation and protection
  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
  • 6.6-Foot (2 m) drop protection
  • IP67: Dustproof and waterproof
  • Conforms to CE requirements

NCVT-3P是带有手电筒的非接触电压测试仪。电压传感器可检测12至1000V AC，并指示电缆，电线，断路器，灯具，开关，插座和电线中是否存在电压，以及门铃，恒温器，低压照明和灌溉系统中是否存在AC电压。包括视觉和听觉信号。NCVT-3P坚固耐用，可用于不同作业现场。

技术指标
类型：
双范围带手电筒
应用：
交流电压的非接触式检测和测试
特殊功能：
两种模式：70至1000V AC和12至1000V AC。手电筒
材料：
聚碳酸酯纤维
跌落保护：
6.6’（2 m）
电压：
12-1000V AC
频率：
50-500赫兹
污染度：
2
防护等级：
IP67：防尘防水
标准：
CAT IV 1000V
包括：
电池
电池：
2个AAA
电池寿命：
125小时
总长度：
5.70英寸（14.5厘米）
总高度：
1.09英寸（2.8厘米）
总宽度：
0.93英寸（2.4厘米）
重量：
1.9盎司（51.0克）
UPC：
092644693236
警告事项
  • 在操作或维修该测试仪之前，请阅读，理解并遵循手册中的所有警告，注意事项，安全信息和说明。不遵守指示可能导致死亡或重伤。
  • 切勿假定零线或地线已断电。断开时，多线分支电路中的中性点可能会通电，在处理之前必须重新测试。

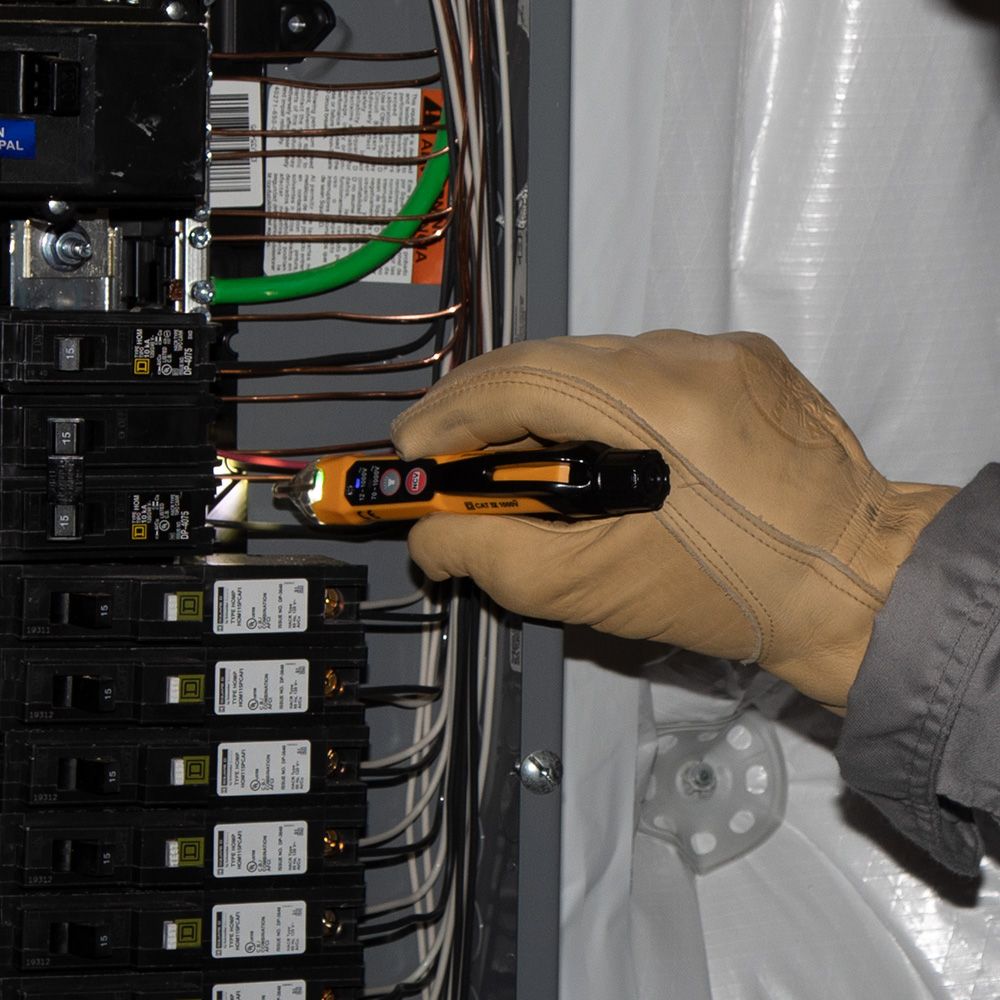

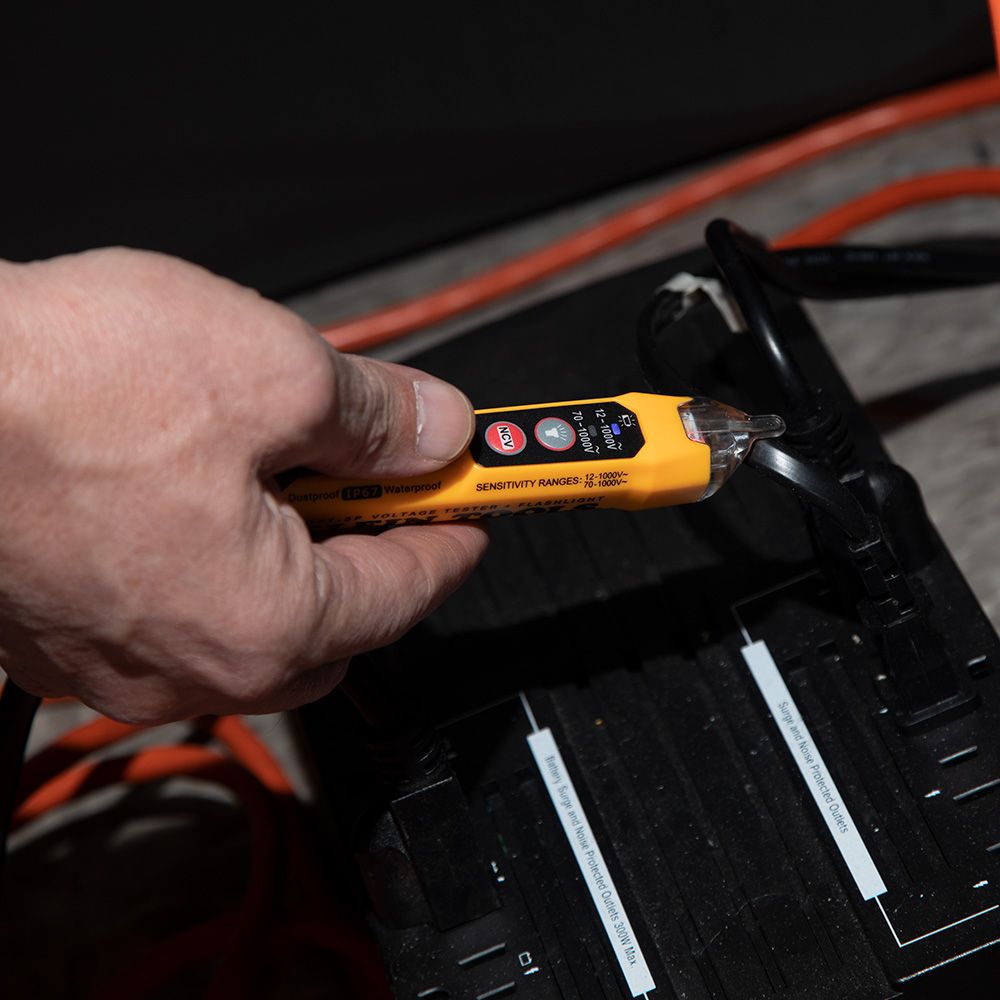

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.

Specifications
Type:
Dual Range with Flashlight
Application:
Non-Contact Detection and Testing of AC Voltage
Special Features:
Two Distinctive Modes: 70 to 1000V AC and 12 to 1000V AC; Flashlight
Material:
Polycarbonate
Drop Protection:
6.6′ (2 m)
Voltage:
12 – 1000V AC
Frequency:
50 – 500 Hz
Pollution Degree:
2
Ingress Protection:
IP67: Dustproof and Waterproof
Standard:
CAT IV 1000V
Included:
Batteries
Batteries:
2 x AAA
Battery Life:
125 Hrs
Overall Length:
5.70” (14.5 cm)
Overall Height:
1.09” (2.8 cm)
Overall Width:
0.93” (2.4 cm)
Weight:
1.9 oz (51.0 g)
UPC:
092644693236
WARNINGS
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
