带有双量程NCVT和GFCI插座测试仪的电气测试仪套件

NCVT5KIT

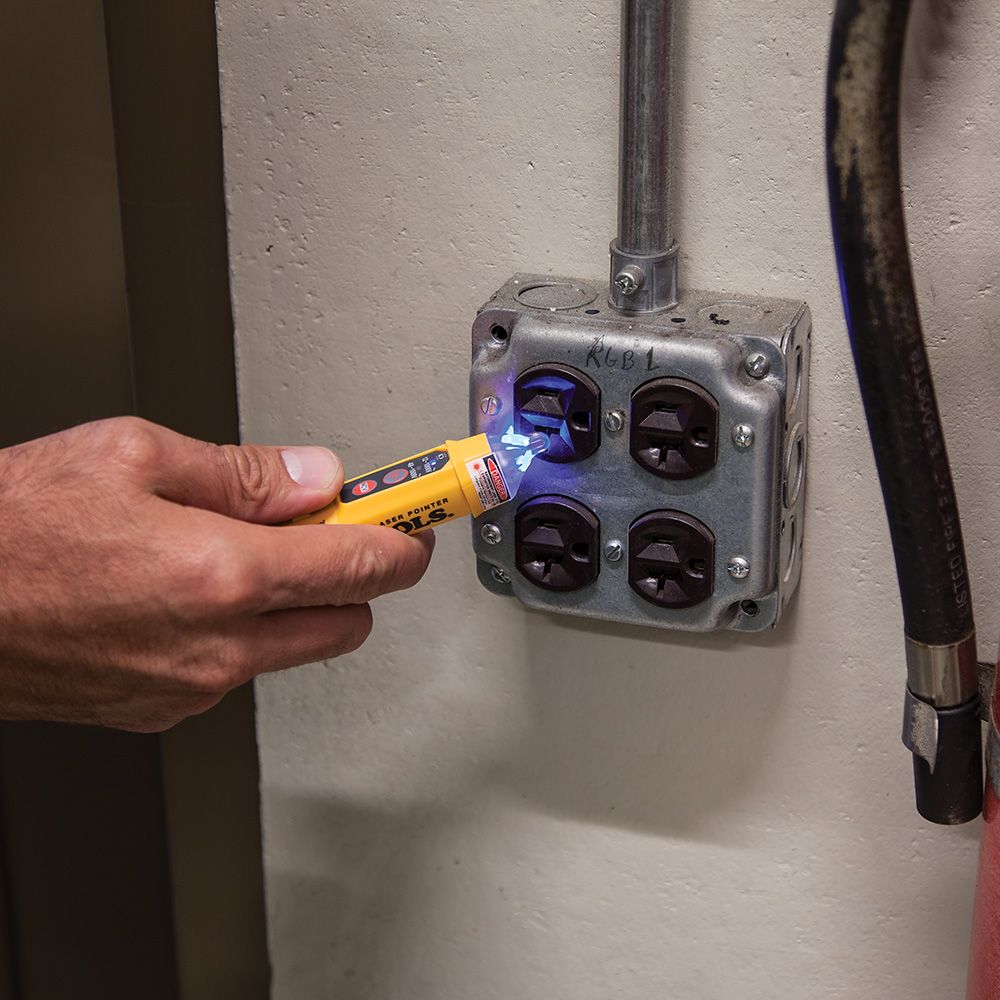

  • NCVT-5A可非接触式确定电缆，电线，断路器，开关，插座和电线中的交流电压，以及安全，娱乐，通信，环境控制和灌溉系统中的交流电压
  • 双量程测试：选择12到1000V AC，适合低压系统，例如门铃，环境控制或灌溉系统，或选择70到1000V AC，适合检测系统，例如电源
  • 当检测到交流电压时，NCVT-5A同时提供视觉和听觉电压指示器
  • 可听见的电压指示器以较高的频率发出哔哔声，表示感测到的电压越高，或者它离电压源越近
  • 集成了明亮的激光指示器，可在工作现场远距离识别感兴趣的物体
  • RT210可检测标准和GFCI插座中常见的接线问题
  • 在GFCI插座上工作并确认接地保护装置的运行
  • RT210指示的条件：开路，反极性，热线断开，中性线断开，热/地线反向

Electrical Tester Kit with Dual-Range NCVT and GFCI Receptacle Tester

NCVT5KIT

  • NCVT-5A provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
  • Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply
  • NCVT-5A delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source it is

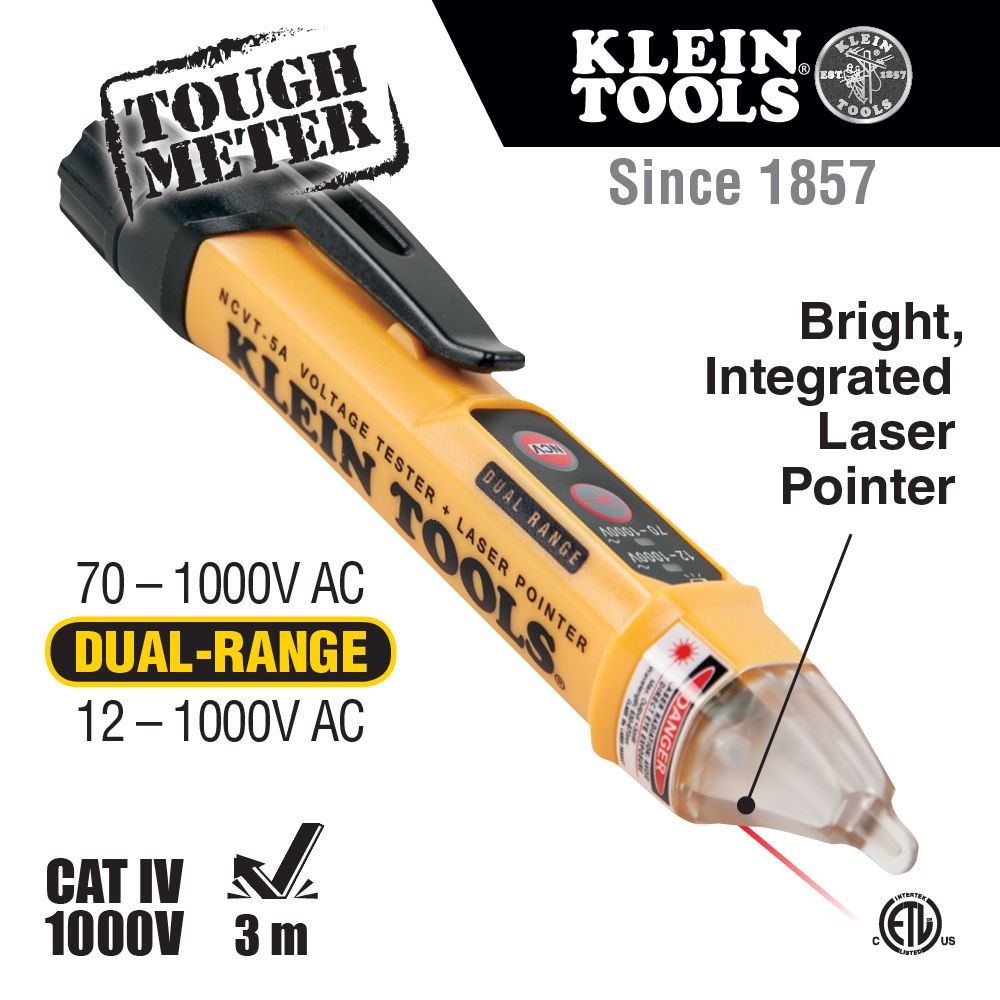

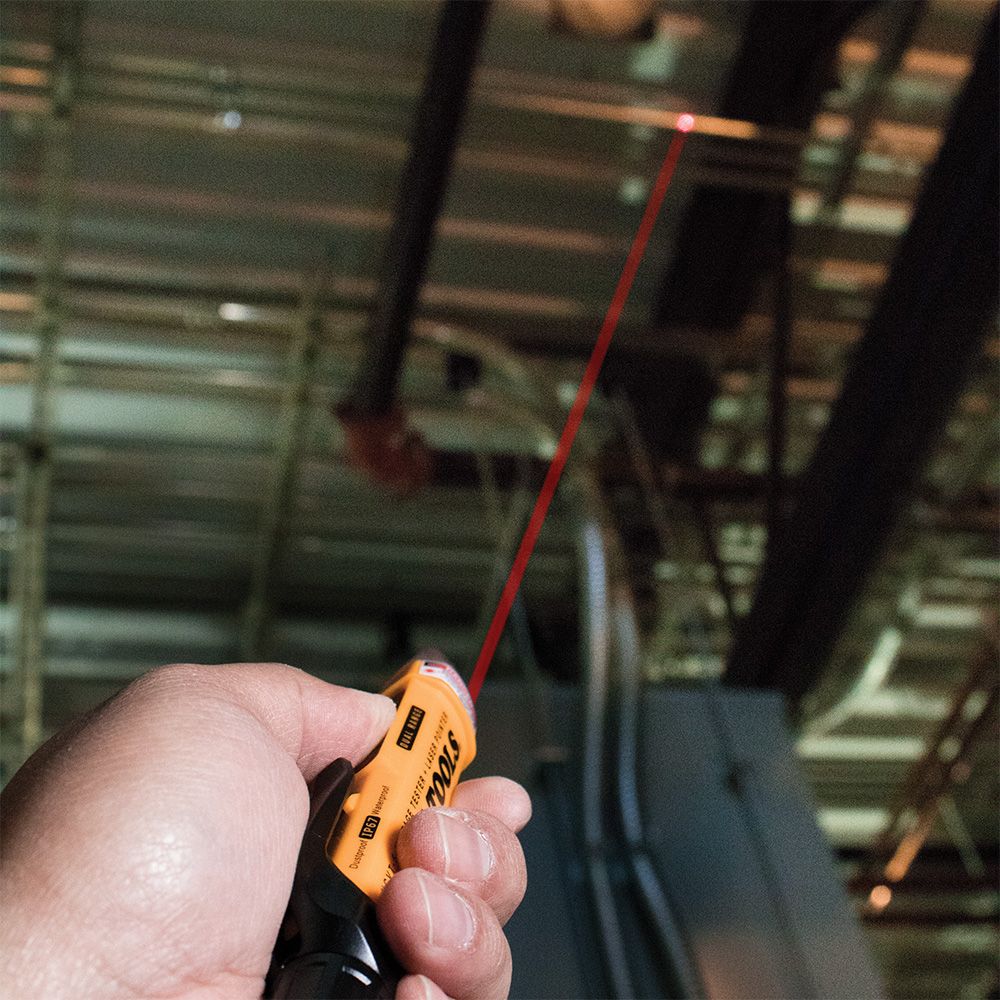

  • Bright integrated laser pointer for identifying objects of interest at distance on the jobsite

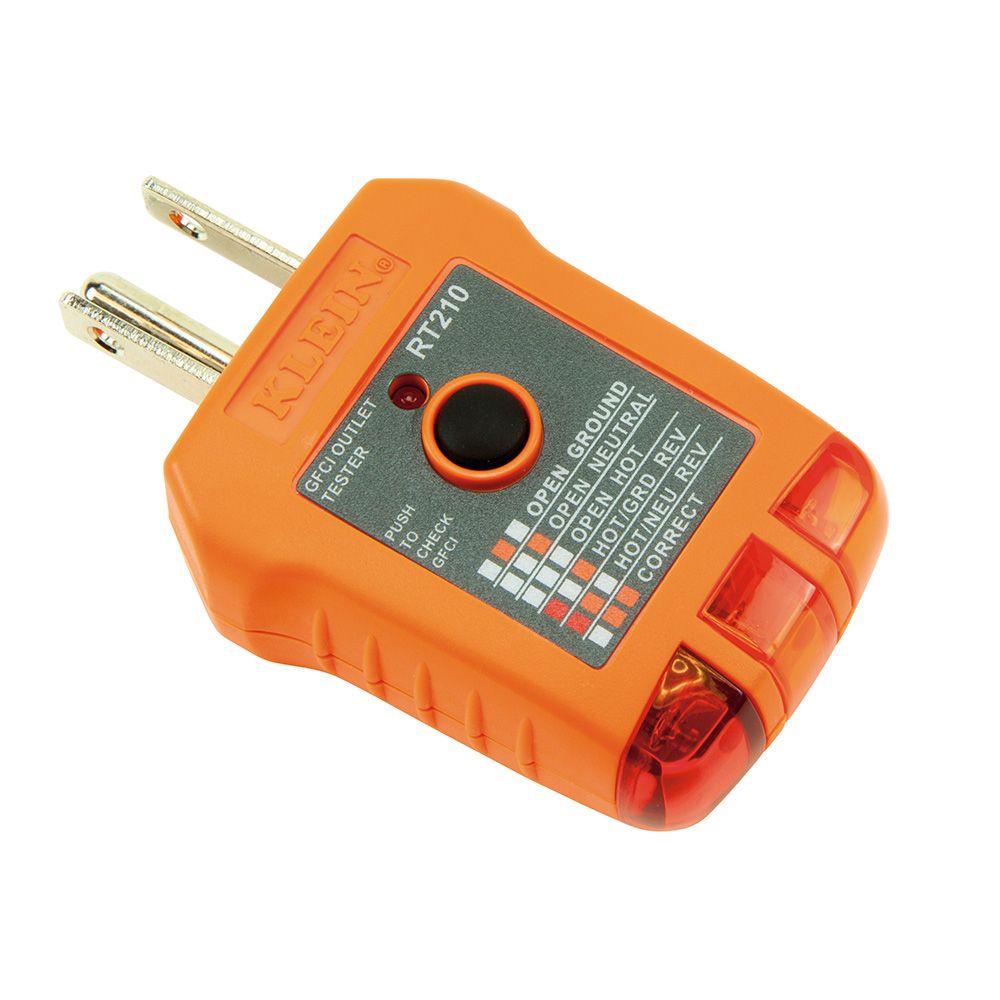

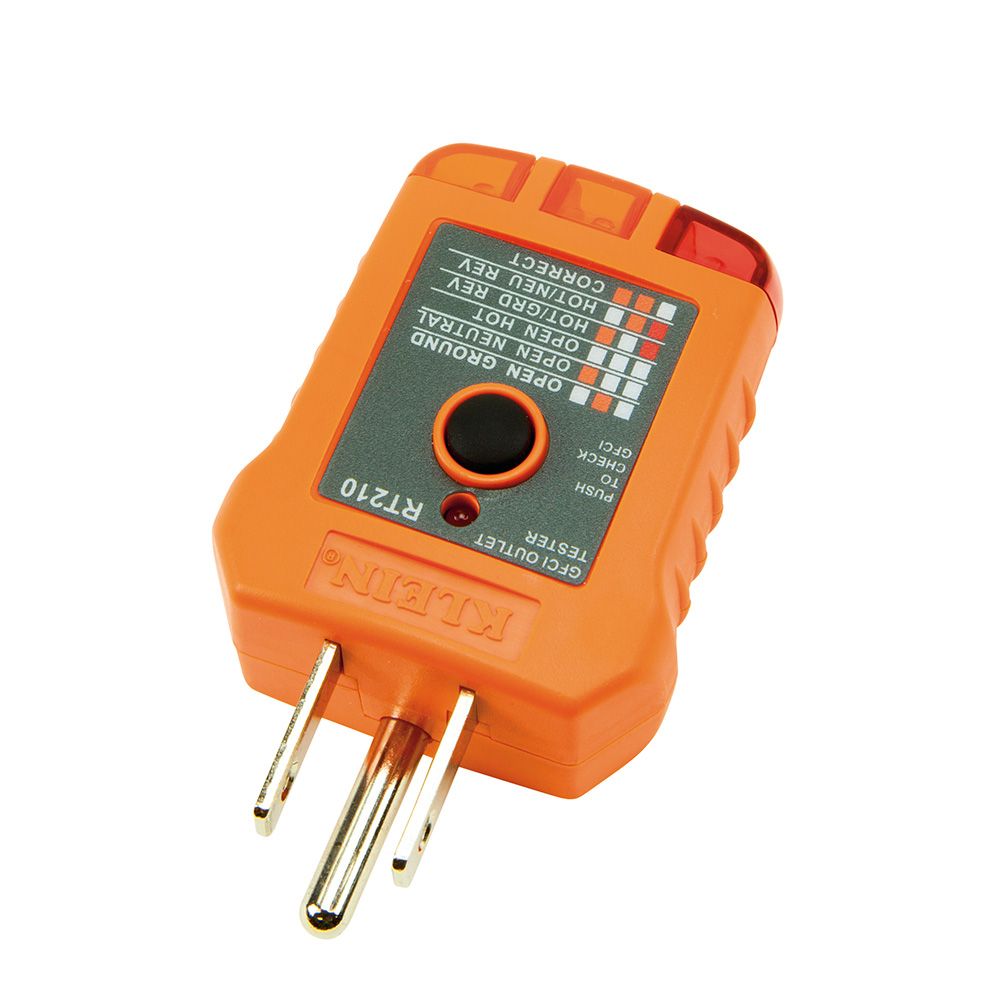

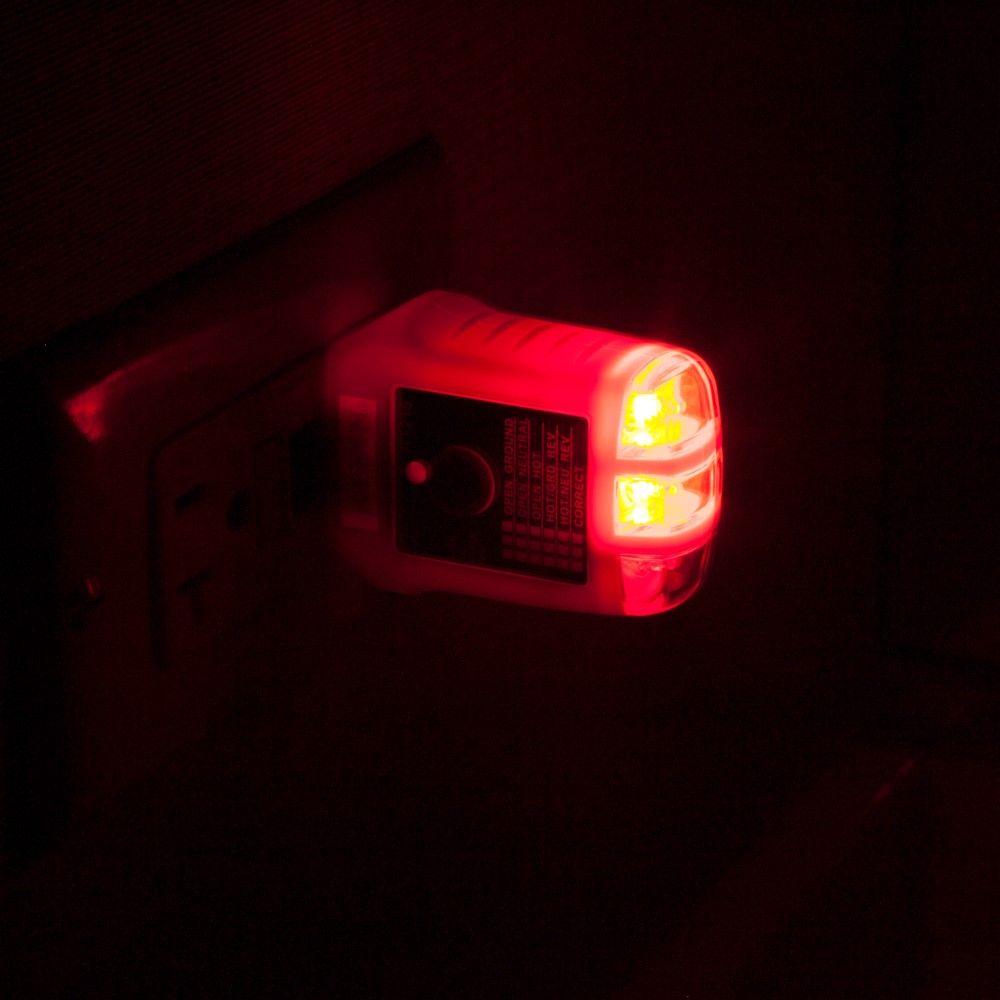

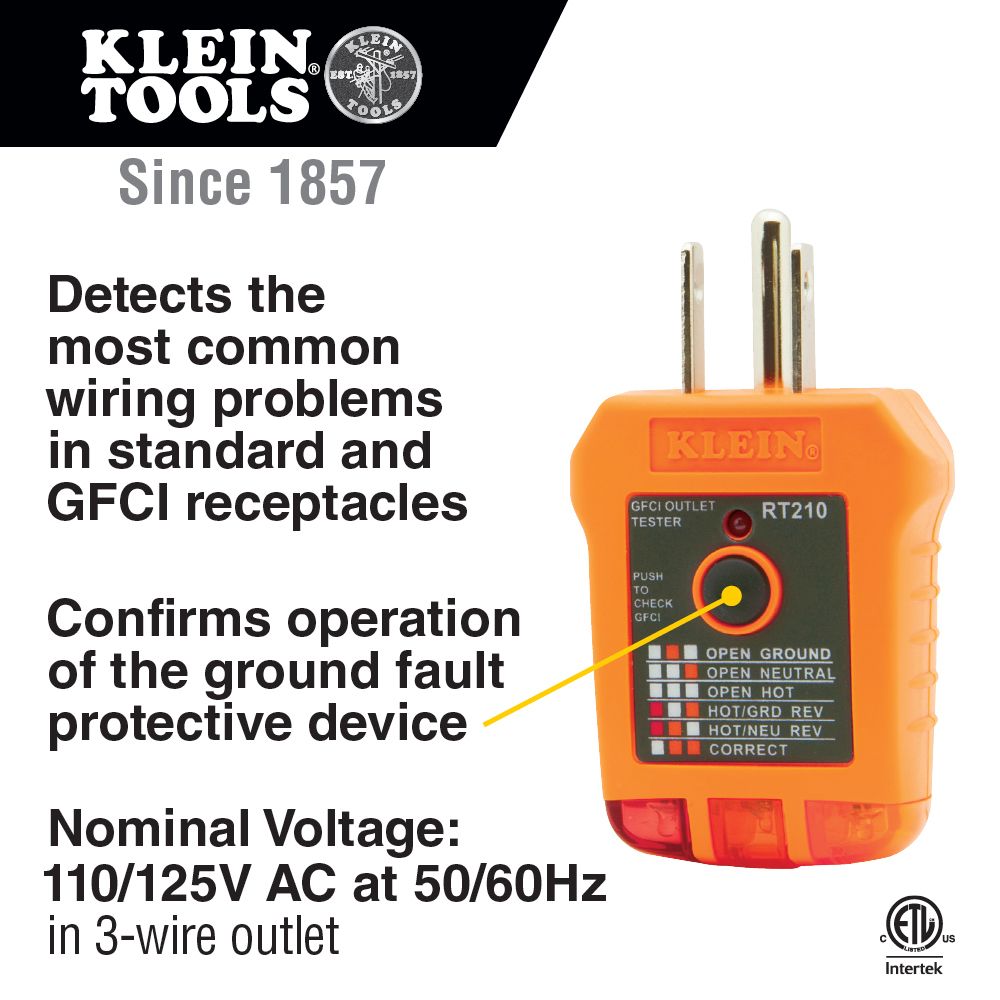

  • RT210 detects the most common wiring problems in standard and GFCI receptacles

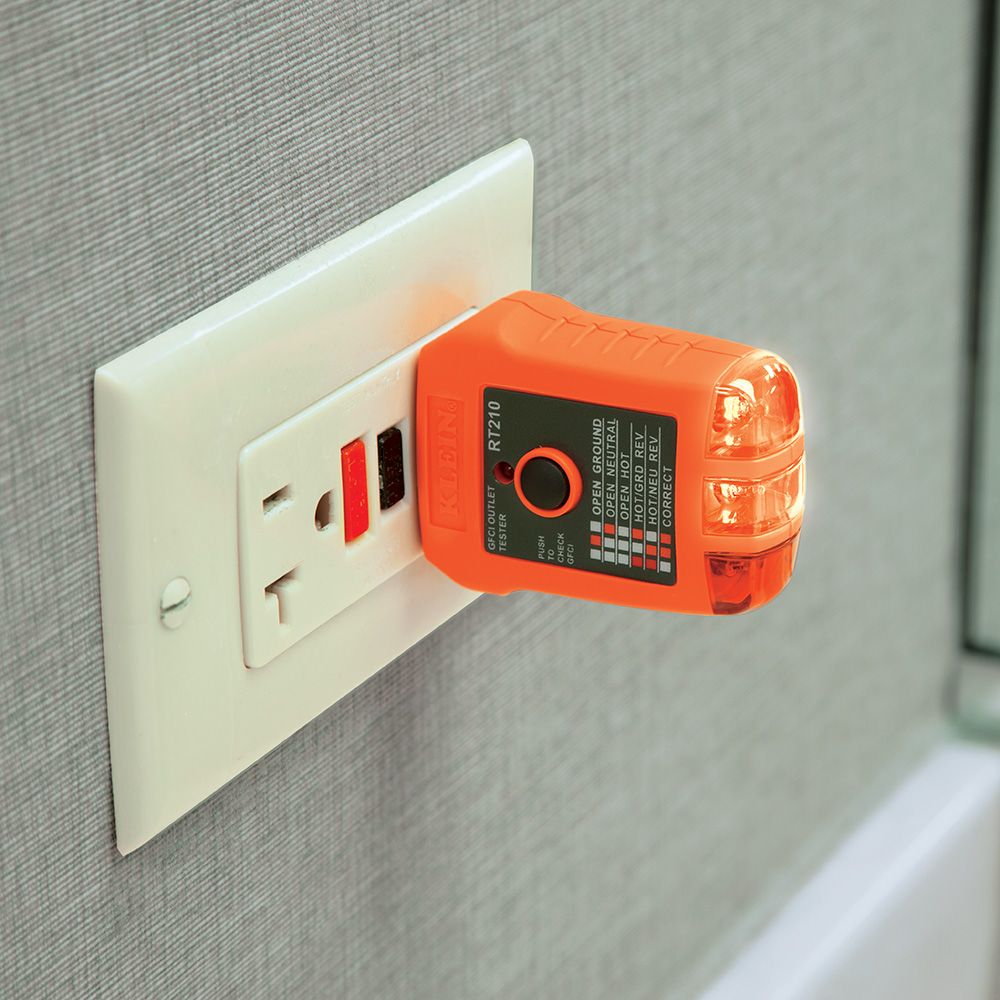

  • Works on GFCI outlets and confirms operation of the ground fault protective device
  • Conditions the RT210 indicates: open ground, reverse polarity, open hot, open neutral, hot/ground reversed

NCVT5KIT包括一个带激光指示器的双量程非接触电压测试仪和一个GFCI插座测试仪。NCVT-5A自动检测并指示电压（12-1000V），可广泛应用。RT210将解决标准和GFCI插座中常见的接线问题。

技术指标
类型：
非接触式交流电压测试仪，GFCI插座测试仪
应用：
双量程非接触式检测12-1000 VAC或70-1000V AC交流电压的存在
特殊功能：
集成的高强度红色激光笔，双量程测试仪（70-1000V; 12V-1000V）交流电压检测，在存在交流电压的情况下同时具有可视和可听电压指示器
材料：
塑料和电子组件
跌落保护：
9.8英尺（3m）
电压：
12至1000 VAC
频率：
50至500 Hz
污染度：
2
标准：
CAT IV 1000V;?激光：3a级，630-670nm，至大功率<5mW
包括：
NCVT-5A带电池，RT210
电池：
2个AAA
电池寿命：
激光开启：31小时；带视觉和听觉警报的NCV开启：25小时
总长度：
6英寸（15.2厘米）
总高度：
0.96英寸（2.4厘米）
总宽度：
1.16英寸（2.9厘米）
重量：
1.5盎司（43克）
UPC：
092644692369
警告事项
  • 每次使用前，请阅读，理解并遵循所有测试和测量设备随附和/或随附的所有说明，注意事项和警告。
  • 切勿假定零线或地线已断电。断开时，多线分支电路中的中性点可能会通电，在处理之前必须重新测试。
  • 激光辐射，3a类激光。请勿将激光束直射到眼睛中，请勿凝视光束或请勿使用光学仪器直接观察，因为这可能会导致严重而永久的眼睛伤害。
  • 以制造商指定的方式以外的任何其他方式使用此测试仪可能会损害安全操作，从而导致严重的人身伤害甚至死亡。

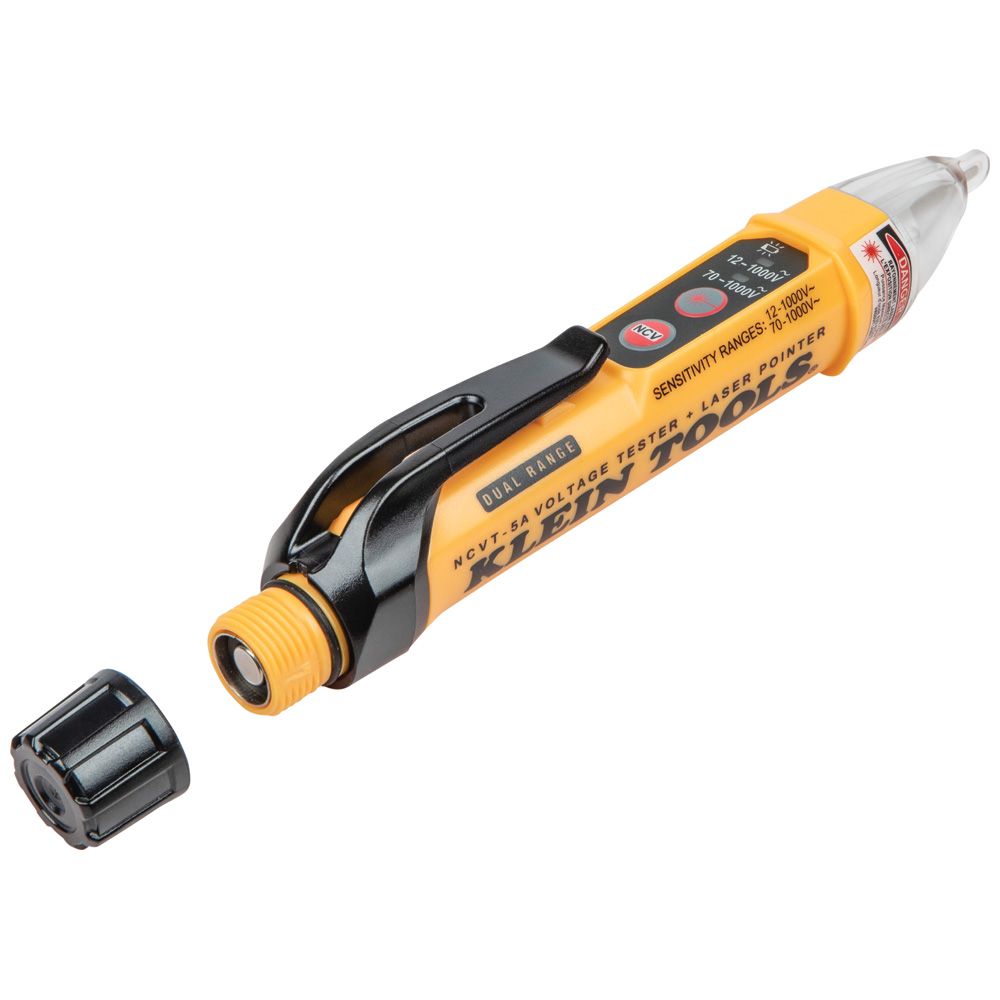

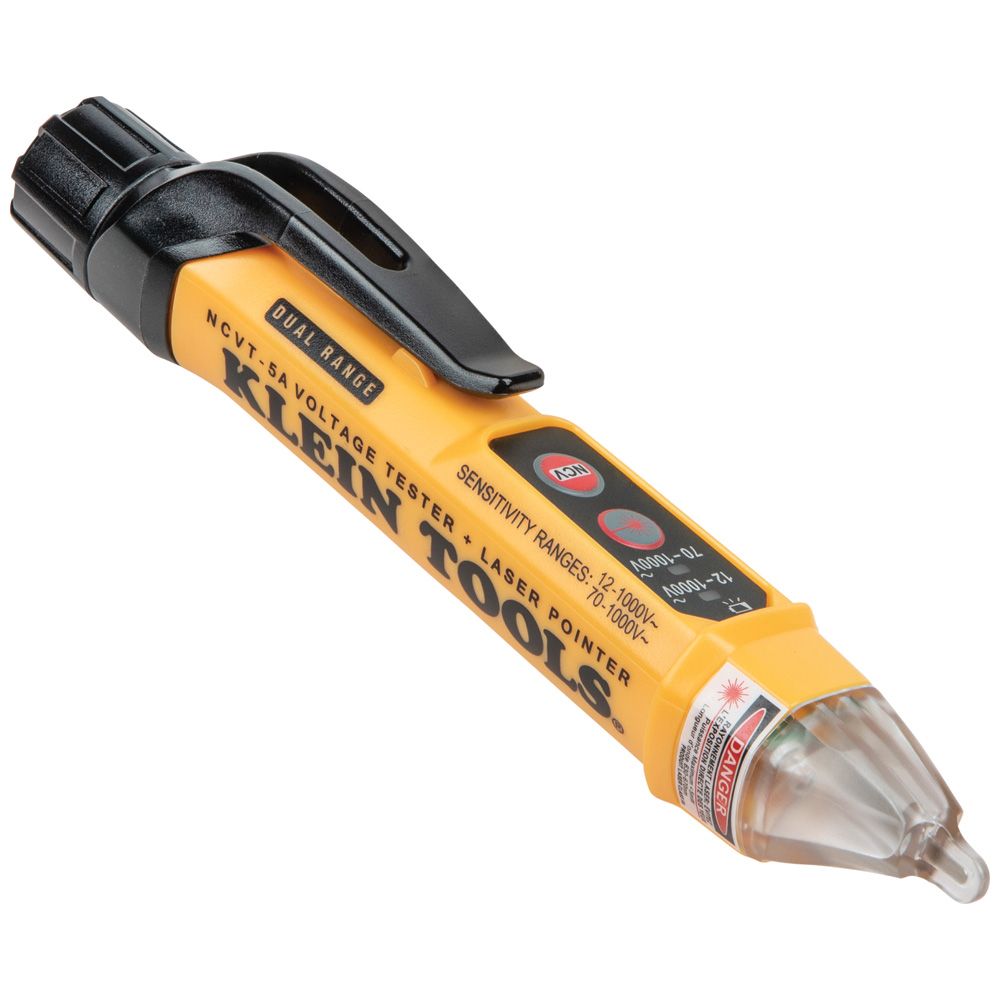

The NCVT5KIT includes a dual-range non-contact voltage tester with laser pointer and a GFCI receptacle tester. The NCVT-5A automatically detects and indicates voltage (12 – 1000V) allowing broad application. The RT210 will troubleshoot the most common wiring problems in standard and GFCI receptacles.

Specifications
Type:
Non-Contact AC Voltage Tester, GFCI Receptacle Tester
Application:
Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
Special Features:
Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage
Material:
Plastic and Electronic Assemblies
Drop Protection:
9.8′ (3 m)
Voltage:
12 to 1000 VAC
Frequency:
50 to 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V; Laser: Class 3a, 630-670nm, Max Power <5mW
Included:
NCVT-5A with Batteries, RT210
Batteries:
2 x AAA
Battery Life:
Laser On: 31 Hrs; NCV On with Visual and Audible Alerts: 25 Hrs
Overall Length:
6” (15.2 cm)
Overall Height:
0.96” (2.4 cm)
Overall Width:
1.16” (2.9 cm)
Weight:
1.5 oz (43 g)
UPC:
092644692369
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • LASER RADIATION, Class 3a laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
  • Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death
