Project Description

NG216RB为E216RB升级型号。

把握过去50年来手套技术的进步。带有可选RFID技术的Electriflex手套提高了灵活性,提供了额外的舒适性,增强了产品生命周期的可追溯性,并且采用了霍尼韦尔·salisbury(Honeywell Salisbury)期望的相同优质和严格标准。

RFID技术可使用霍尼韦尔软件解决方案轻松,高效地跟踪资产。您可以轻松,实时地确定您的工人是否准备好,配备了正确的PPE,经过适当的培训以安全地完成工作。Electriflex手套的柔韧性比我们以前制造的其他手套有所提高。经过专业设计,可为线路工人带来很好的舒适感和控制力。

Electriflex可很大程度地减少手部疲劳并提高性能-同时提供所需的保护。

功能和优点:
互联的工作人员
可选的RFID技术可使用霍尼韦尔软件解决方案轻松,高效地跟踪资产。
实时准确的安全智能,以创建一个更安全,更高效的企业。
●在人与合规之间。
●在正确的设备和正确的工作之间。
●更好的连接。
采用Flex技术的Electriflex手套具有:
●柔性提高
●线路工人更喜欢
●经过测试并符合要求
●* Electriflex手套的柔性比霍尼韦尔·salisbury生产的其他橡胶绝缘手套高。

订购信息:袖口样式:默认=直袖口,BC =贝尔袖口,C =轮廓袖口(仅18英寸长可用)颜色:B =黑色,YB =黄色内层,

射频识别:

/射频

尺寸:

*BC有9号到12号两种型号,仅包括半码-不提供11.5号

Take hold of the biggest advancement in glove technology in the last 50 years. Electriflex Gloves with optional RFID technology increases flexibility, provides extra comfort, enhances product life cycle traceability and is engineered with the same superior quality and exacting standards you’ve come to expect from Honeywell Salisbury.

RFID technology allows for easy and efficient asset tracking using Honeywell software solutions. You can easily determine, in real-time, if your workers are ready, equipped with the right PPE, and properly trained to safely do their jobs.

Electriflex Gloves are 30% more flexible* than any other glove we’ve ever made and are expertly designed to give linemen the ultimate in comfort and control.Electriflex minimizes hand fatigue and maximizes performance – all while giving the protection you need.

Features & Benefits:

Connected Worker

Optional RFID Technology allows for easy and efficient asset tracking using Honeywell software solutions.

Real-time accurate safety intelligence to create a safer and more productive enterprise.

● Between people and compliance.

● Between the right equipment and the right job.

● Better connections.

Electriflex Gloves with flex technology are:

● 30% more flexible*

● 82% preferred by linemen

● 100% tested and compliant

● * Electriflex gloves are 30% more flexible than any other rubber insulating glove produced by Honeywell Salisbury.

Ordering Information:

Cuff Style: Default=Straight Cuff, BC=Bell Cuff, C=Contour Cuff (available only in 18” length)

Color:

B=Black, YB=Yellow inner, black outer, RB= Red inner, black outer

RFID:

/RF

Sizes:

*BC available in sizes 9 through 12 including half sizes only – Size 11.5 is not Available

电气参数特性
等级交流测试电压
Voltage, rms, V
直流测试电压
Voltage, avg, V
使用交流电压
Voltag Ac, rms, V
使用直流电压
Voltage dc, avg, V
220000500001700025500
330000600002650039750
440000700003600054000
?????
材料参数特性????
材料I型天然橡胶 不耐臭氧???
抗拉强度2,500 磅/平方英尺 (17.2 MPa)???
200%拉应力300 磅/平方英尺 (2.1 MPa)???
极限延伸率600%???
张力设定,值为400%15%???
抗撕裂性120 扭矩 (21 kN/m)???
穿刺阻力100 扭矩 (18 kN/m)???
硬度,支撑A值47???
加速老化70±2°C(158±3.6°F),
循环空气,7天
试样的抗拉强度和延伸率不得小于原试样的80%???
?????
物理参数特性????
等级厚度???
20.040-0.090 英寸 (1.02-2.29 毫米)???
30.060-0.115 英寸 (1.52-2.92 毫米)???
40.080-0.140 英寸 (2.03-3.56 毫米)???
?????
订购信息????
等级手套袖口样式长度 英寸 (毫米)颜色尺码
NG2直口14 (356) , 16 (406)黑色, 内红外黑, 内黄外黑7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG2直口18 (457)内黄外黑7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG3直口16 (406)黑色, 内红外黑, 内黄外黑7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG4直口16 (406)内红外黑9, 9H, 10, 10H, 11, 12
?????
等级手套袖口样式长度 英寸 (毫米)颜色尺码
NG2钟形口16 (406)内红外黑, 内黄外黑8, 8H, 9, 9H, 10, 10H, 11, 12
NG3钟形口16 (406)内红外黑8, 8H, 9, 9H, 10, 10H, 11, 12
NG4钟形口16 (406)内红外黑9, 9H, 10, 10H, 11, 12
?????
等级手套袖口样式长度 英寸 (毫米)颜色尺码
NG2斜口18 (457)内红外黑, 内黄外黑7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG3斜口18 (457)内红外黑7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG4斜口18 (457)内红外黑9, 9H, 10, 10H, 11, 12
?????
高压连指手套款式????
等级手套袖口样式长度 英寸 (毫米)颜色尺码
NG2钟形口14 (356) , 16 (406)黑色, 内红外黑, 内黄外黑9, 10, 11
NG3钟形口16 (406)内黄外黑9, 10, 11
?????
产品标识????
贴在手背每只手套袖口上的标签包括salisbury,符合ASTM D120标准,尺寸,最大使用电压,等级,类型,基于等级的颜色编码???
拇指侧袖口附近的手套上标记的序列号提供产品可追溯性???
电气试验日期标记根据客户要求提供??

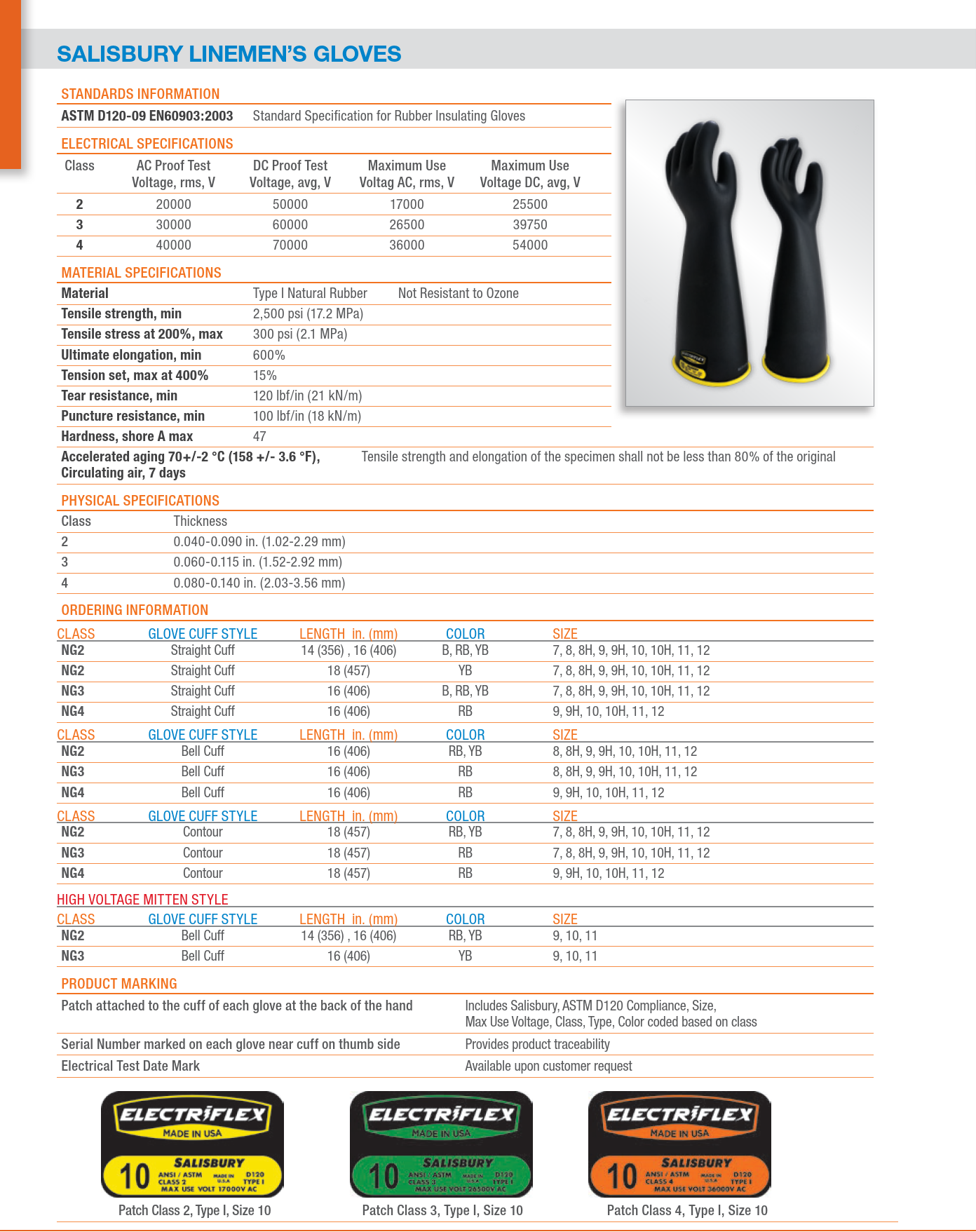

classAc proof test
Voltage, rms, V
dc proof test
Voltage, avg, V
maximum Use
Voltag Ac, rms, V
maximum Use
Voltage dc, avg, V
220000500001700025500
330000600002650039750
440000700003600054000
?????
mAtErIAl SpEcIfIcAtIonS????
MaterialType I Natural Rubber。Not Resistant to Ozone???
Tensile strength, min2,500 psi (17.2 MPa)???
Tensile stress at 200%, max300 psi (2.1 MPa)???
Ultimate elongation, min600%???
Tension set, max at 400%15%???
Tear resistance, min120 lbf/in (21 kN/m)???
Puncture resistance, min100 lbf/in (18 kN/m)???
Hardness, shore A max47???
Accelerated aging 70+/-2 °C (158 +/- 3.6 °F),
Circulating air, 7 days
Tensile strength and elongation of the specimen shall not be less than 80% of the original???
?????
phySIcAl SpEcIfIcAtIonS????
classThickness???
20.040-0.090 in. (1.02-2.29 mm)???
30.060-0.115 in. (1.52-2.92 mm)???
40.080-0.140 in. (2.03-3.56 mm)???
?????
ordErInG InformAtIon????
CLASSGLOVE CUFF STYLELENGTH in. (mm)COLORSIzE
NG2Straight Cuff14 (356) , 16 (406)B, RB, YB7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG2Straight Cuff18 (457)YB7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG3Straight Cuff16 (406)B, RB, YB7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG4Straight Cuff16 (406)RB9, 9H, 10, 10H, 11, 12
?????
CLASSGLOVE CUFF STYLELENGTH in. (mm)COLORSIzE
NG2Bell Cuff16 (406)RB, YB8, 8H, 9, 9H, 10, 10H, 11, 12
NG3Bell Cuff16 (406)RB8, 8H, 9, 9H, 10, 10H, 11, 12
NG4Bell Cuff16 (406)RB9, 9H, 10, 10H, 11, 12
?????
CLASSGLOVE CUFF STYLELENGTH in. (mm)COLORSIzE
NG2Contour18 (457)RB, YB7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG3Contour18 (457)RB7, 8, 8H, 9, 9H, 10, 10H, 11, 12
NG4Contour18 (457)RB9, 9H, 10, 10H, 11, 12
?????
HIGH VOLTAGE MITTEN STYLE????
CLASSGLOVE CUFF STYLELENGTH in. (mm)COLORSIzE
NG2Bell Cuff14 (356) , 16 (406)RB, YB9, 10, 11
NG3Bell Cuff16 (406)YB9, 10, 11
?????
prodUct mArkInG????
patch attached to the cuff of each glove at the back of the handIncludes Salisbury, ASTM D120 Compliance, Size,
Max Use Voltage, Class, Type, Color coded based on class
???
Serial number marked on each glove near cuff on thumb sideProvides product traceability???
Electrical test date markAvailable upon customer request??
