PS65
液压切割头可达65 mm
设计用于切割铝和铜电缆
PS65
Hydraulic Cutting Head up to 65 mm
Designed to cut aluminium and copper cables
技术特征
?打开切割头,指导切割刀片
?坚固紧凑的结构,切割头部主体完全由铝制成
?快速制作弹簧锁连接和不可拆卸的防尘帽
?必须通过700 bar液压泵操作该装置,以达到
60 kN的压缩力
?非常好的处理
切割直径 | 65毫米 |
---|---|
切削力 | 44 kN |
运营压力 | 700巴(70MPa) |
工具重量 | 4,7公斤 |
工具尺寸 | 154 x 369 x 88毫米 |
描述 | 订单号。 | 外形尺寸 | 重量 |
---|---|---|---|
切割头PS65 | PS65 | 400 x 330 x 140毫米 | 6,3公斤 |
可移动的切割刀片 | SMI65 | – | 450克 |
刀导板 | MFI65 | – | 70克 |
设备
- 液压切割头
- 塑料外壳
Technical Characteristics
? Open cutting head with guidance for the cutting blades
? Sturdy and compact structure, cutting head body made ??entirely in aluminum
? Quick make snap lock connection and non-detachable dust cap
? The unit must be operated through 700 bar hydraulic pump to reach
compression force of 60 kN
? Very good handling
Cutting diameter | 65 mm |
---|---|
Cutting force | 44 kN |
Operating pressure | 700 bar (70MPa) |
Tool weight | 4,7 kg |
Tool dimensions | 154 x 369 x 88?mm |
Description | Order No. | Dimensions | Weight |
---|---|---|---|
Cutting Head?PS65 | PS65 | 400 x?330 x 140 mm | 6,3?kg |
Moveable cutting blade | SMI65 | – | 450 g |
Knife guiding plate | MFI65 | – | 70 g |

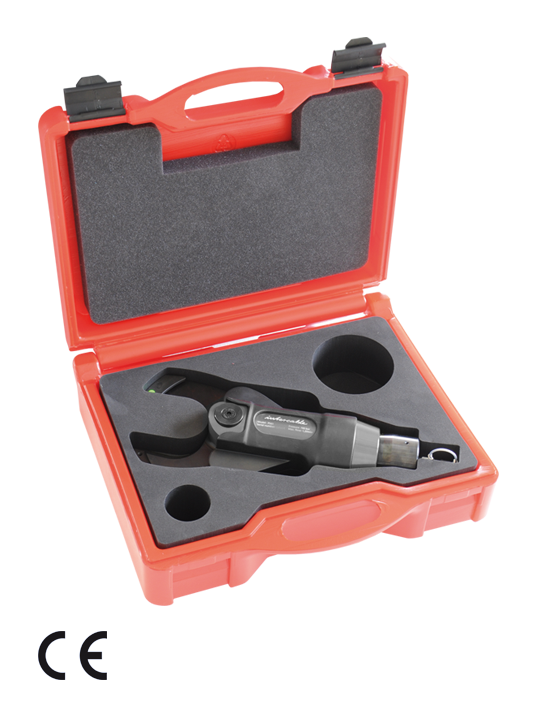

SET Equipment
- Hydraulic cutting head
- Plastic case
