PS95
液压切割头可达95 mm
设计用于切割铝和铜电缆
PS95
Hydraulic Cutting Head up to 95 mm
Designed to cut aluminium and copper cables
技术特征
?打开切割头，指导切割刀片
?坚固紧凑的结构，切割头部主体完全由铝制成
?快速制作弹簧锁连接和不可拆卸的防尘帽
?必须通过700 bar液压泵操作该装置，以达到
60 kN的压缩力
?双手柄，操作性和地板安装性能良好
| 切割直径 | 95毫米 |
|---|---|
| 切削力 | 65 kN |
| 运营压力 | 700巴（70MPa） |
| 工具重量 | 6,9公斤 |
| 工具尺寸 | 201 x 465 x 91毫米 |
| 描述 | 订单号。 | 外形尺寸 | 重量 |
|---|---|---|---|
| 切割头PS95 | PS95 | 610 x 400 x 140毫米 | 9,4公斤 |
| 可移动的切割刀片 | SMI95 | – | 900克 |
| 刀导板 | MFI95 | – | 80克 |
设备
- 液压切割头
- 塑料外壳
Technical Characteristics
? Open cutting head with guidance for the cutting blades
? Sturdy and compact structure, cutting head body made ??entirely in aluminum
? Quick make snap lock connection and non-detachable dust cap
? The unit must be operated through 700 bar hydraulic pump to reach
compression force of 60 kN
? Very good handling and floor mount due to the double handle
| Cutting diameter | 95 mm |
|---|---|
| Cutting force | 65 kN |
| Operating pressure | 700 bar (70MPa) |
| Tool weight | 6,9 kg |
| Tool dimensions | 201 x 465 x 91?mm |
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Cutting Head?PS95 | PS95 | 610 x?400 x 140 mm | 9,4?kg |
| Moveable cutting blade | SMI95 | – | 900 g |
| Knife guiding plate | MFI95 | – | 80 g |

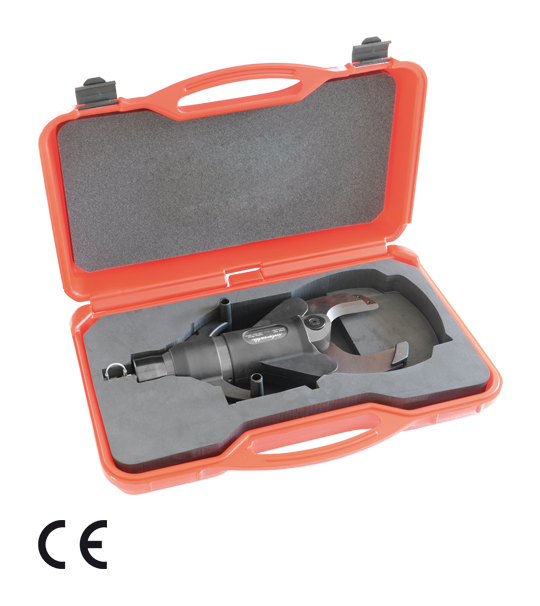

SET Equipment
- Hydraulic cutting head
- Plastic case
