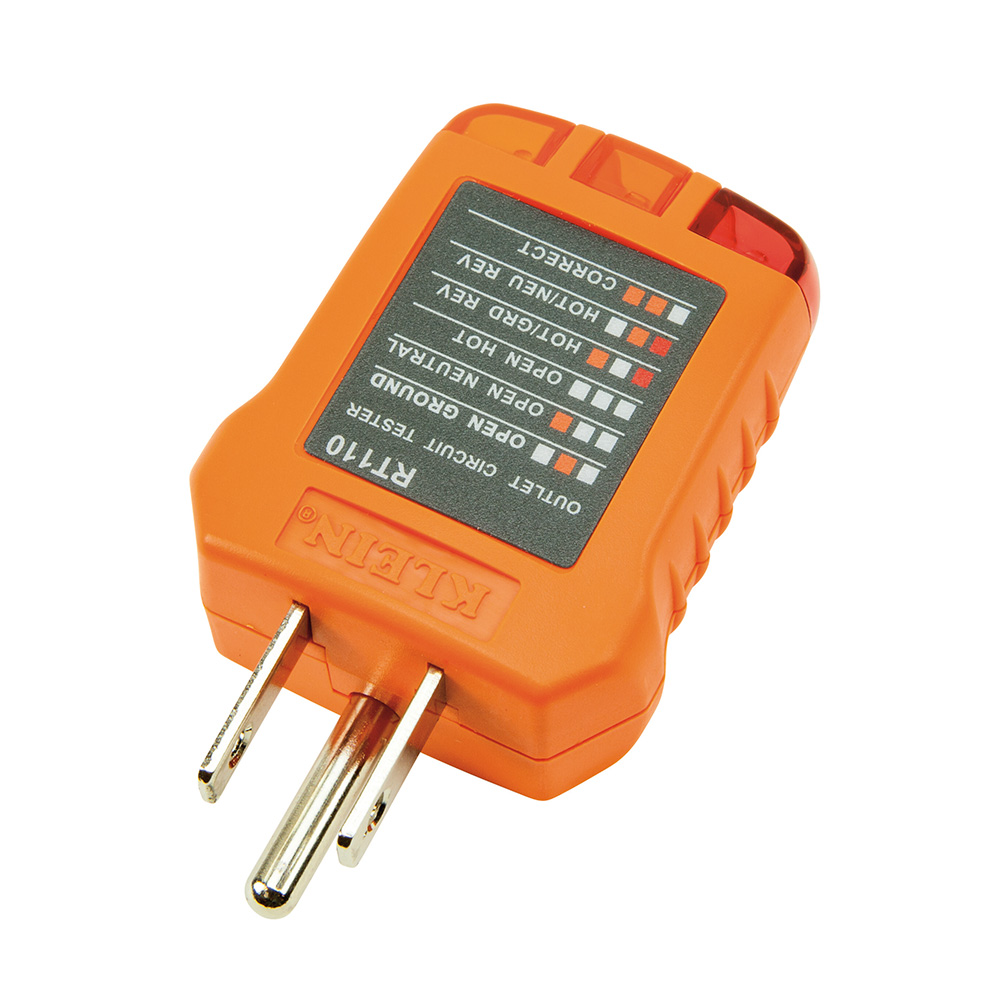

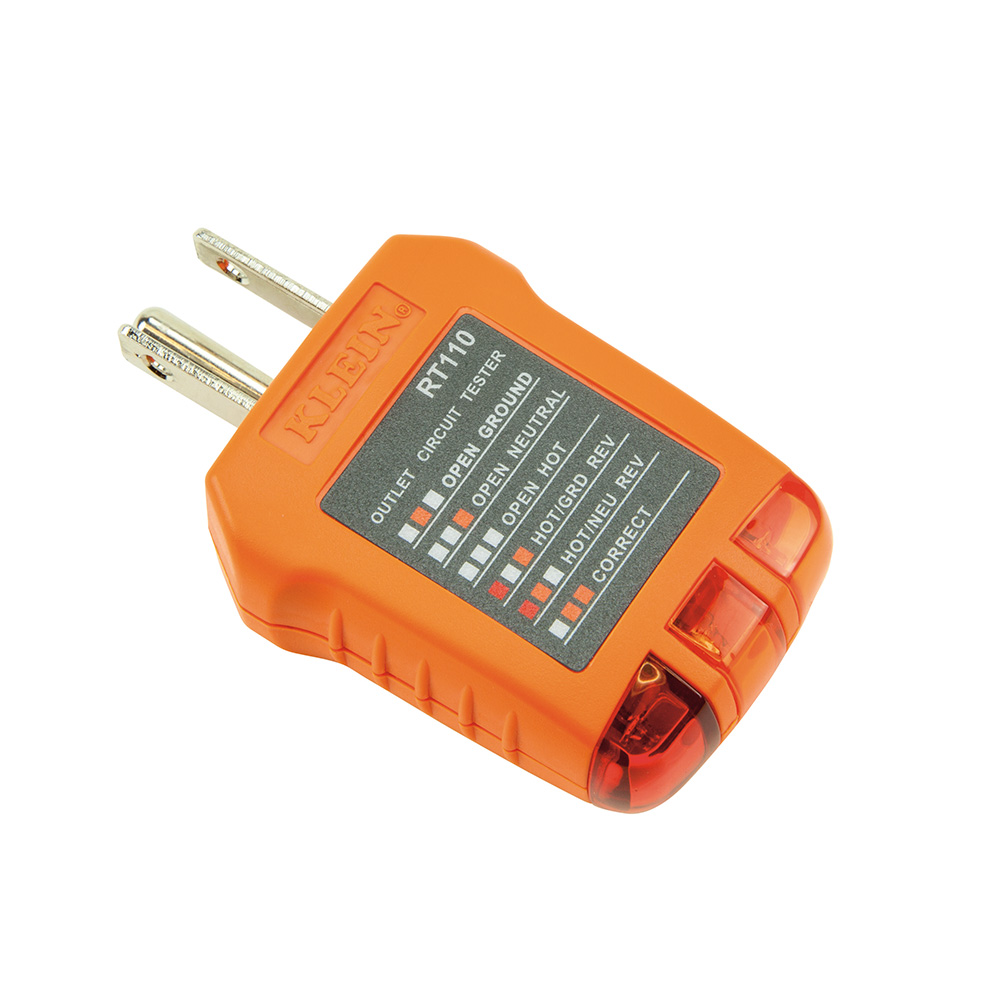

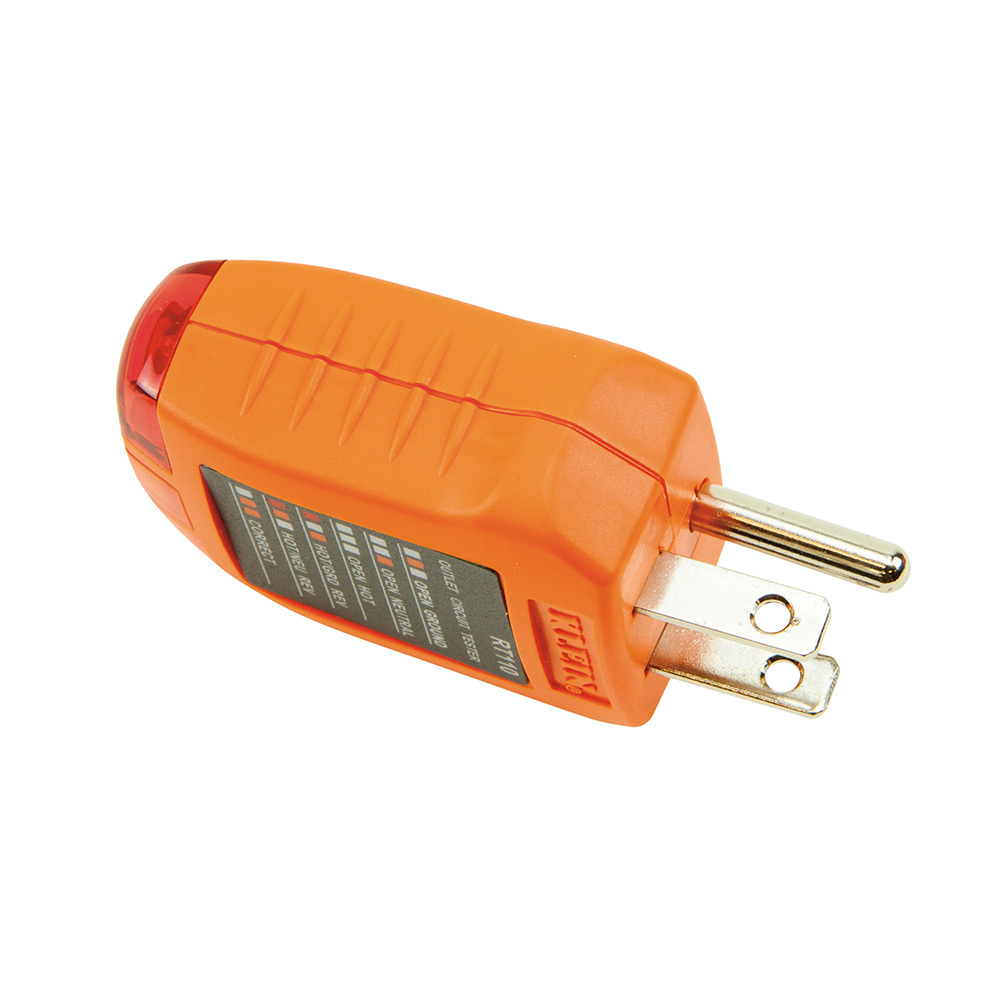

Receptacle Tester
RT110
- Light sequence indicates correct/incorrect wiring
- Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
- Built to withstand a 6.6-foot (2m) drop
- Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
- Designed to detect the most common wiring problems in standard receptacles
插座测试仪
RT110
- 指示灯序列表示接线正确/错误
- 工作温度：32华氏度到140华氏度（0摄氏度到40摄氏度）
- 可承受6.6英尺（2米）的跌落
- 标称电压：在3线插座中，50 / 60Hz时为110 / 125V AC
- 旨在检测标准插座中常见的接线问题

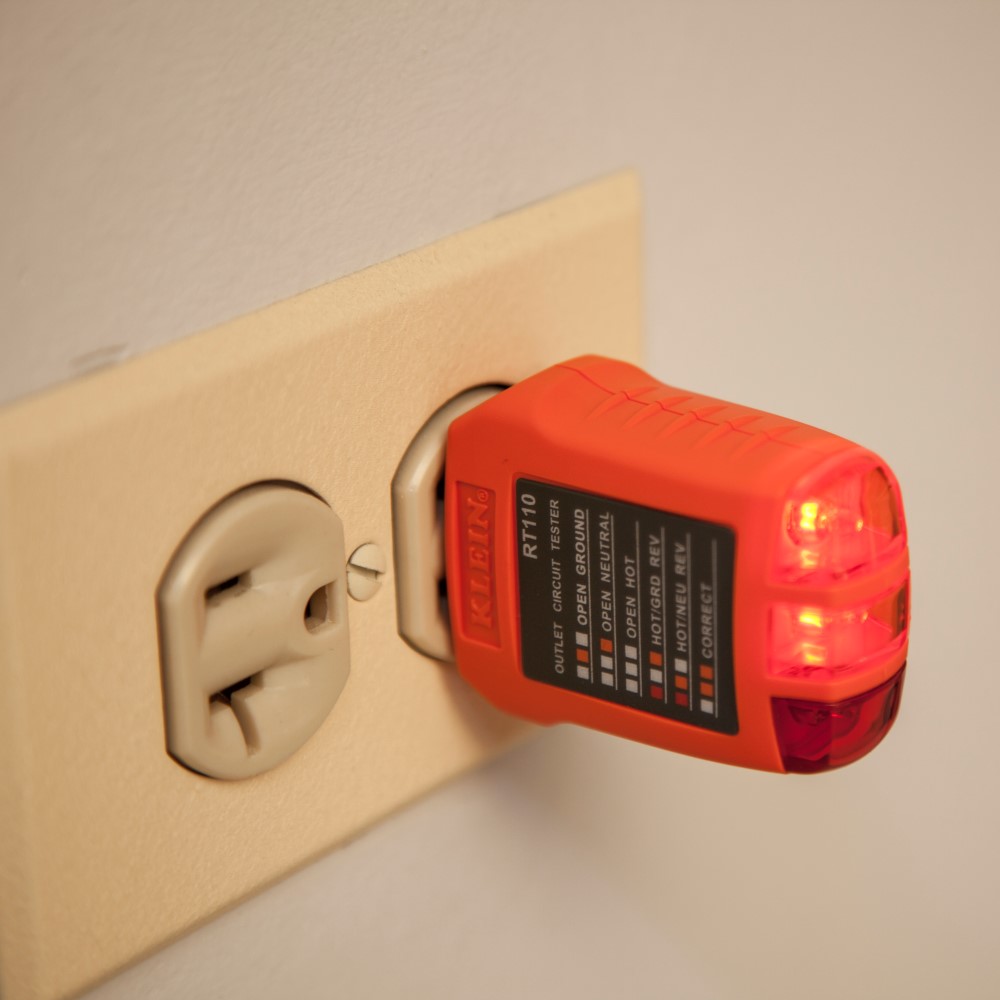

Klein Tools RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.
Specifications
Drop Protection:
6.6 ft (2 m)
GFCI:
No
Voltage:
110/125V AC at 50/60Hz in 3-Wire Outlet
Overall Length:
1.625” (41.3 mm)
Overall Height:
2.875” (73 mm)
Overall Width:
1.875” (47.6 mm)
Weight:
0.12 lb (0.06 kg)
UPC:
092644690266
WARNINGS
- Read, understand, and follow all warnings and instructions before operating testers.
- Always consult a qualified electrician to resolve wiring problems.
- Always wear approved eye protection.
Klein Tools RT110插座测试仪可检测标准插座中常见的接线问题。条件显示：接线正确，接地开路，极性反接，开路热，开路中性，热/地反转。未标明的条件：接地质量，多条热线，缺陷组合，接地导线和接地导线的反转。
产品规格
掉落保护：
6.6英尺（2米）
GFCI：
没有
电压：
110 / 125V AC，50 / 60Hz，3线插座
总长度：
1.625”（41.3 mm）
总体高度：
2.875英寸（73毫米）
总宽度：
1.875”（47.6 mm）
重量：
0.12磅（0.06千克）
UPC：
092644690266
警告
- 在操作测试人员之前，请阅读，理解并遵循所有警告和说明。
- 务必咨询合格的电工以解决接线问题。
- 始终佩戴认可的护目镜。
