Project Description

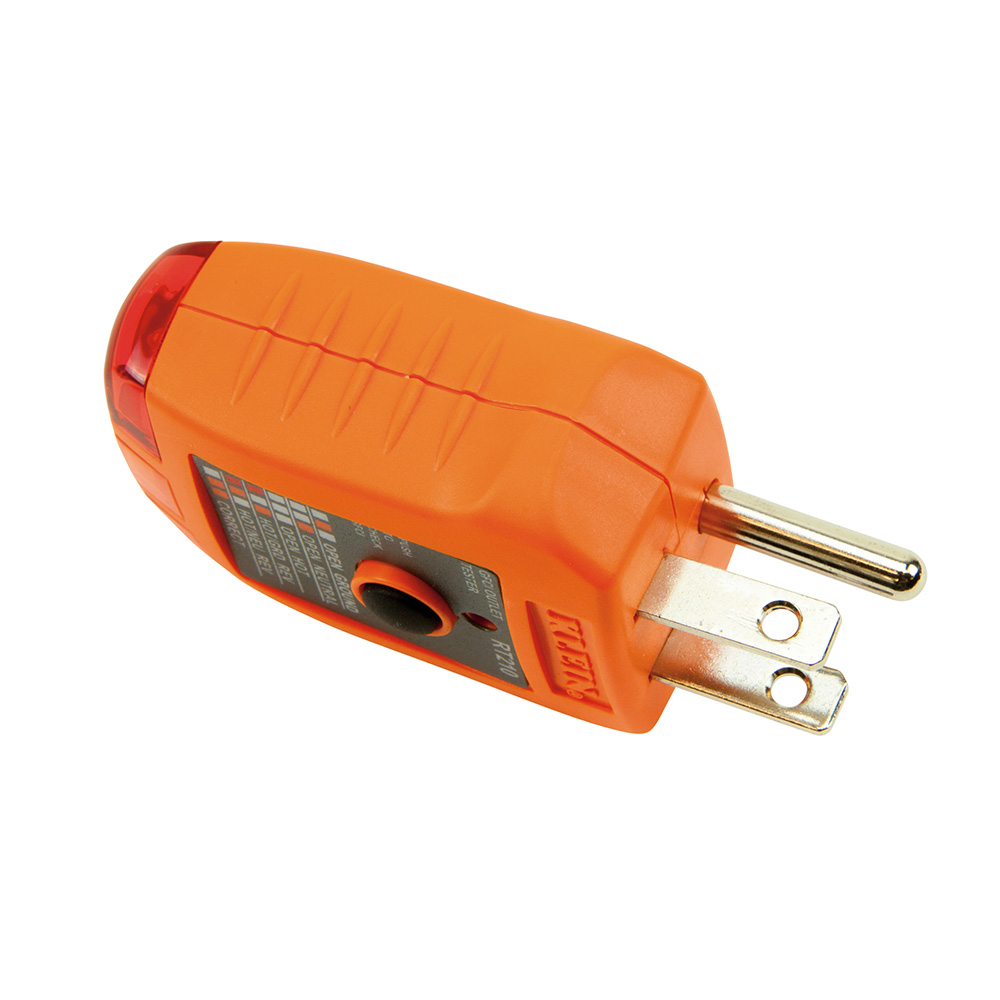

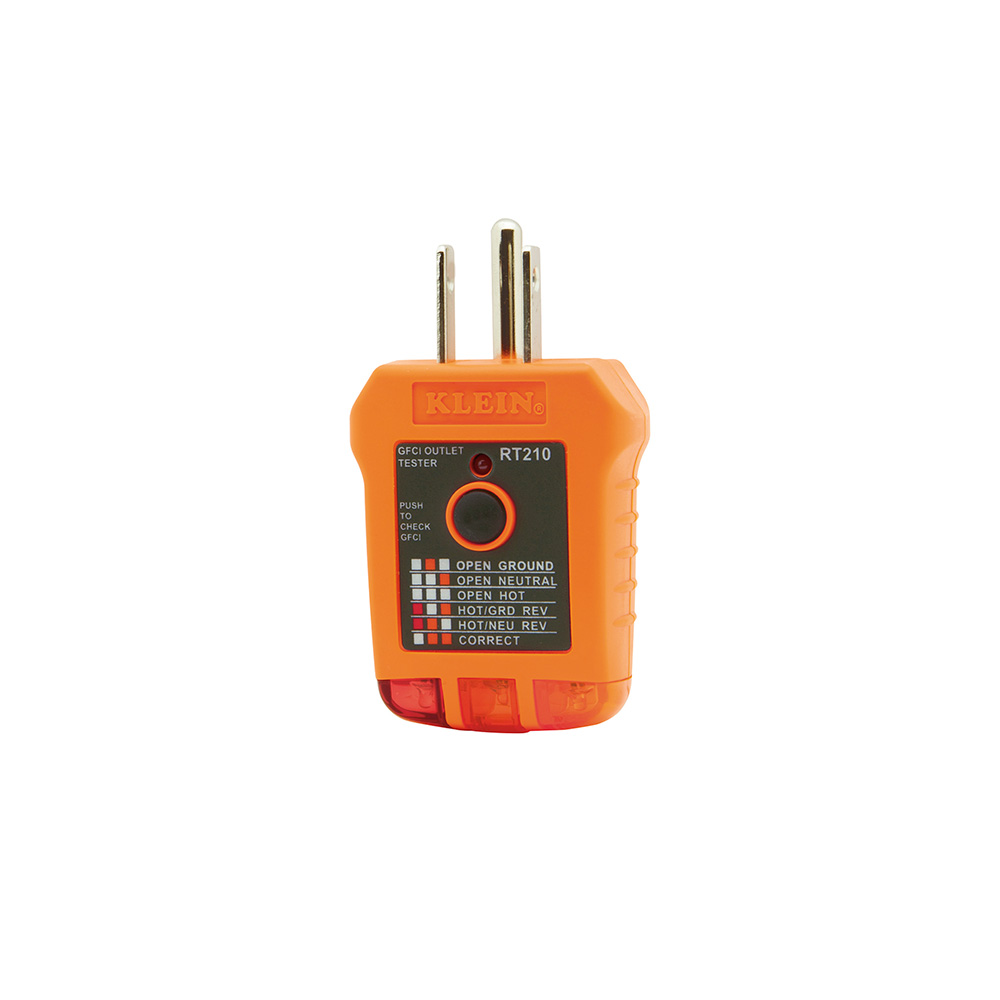

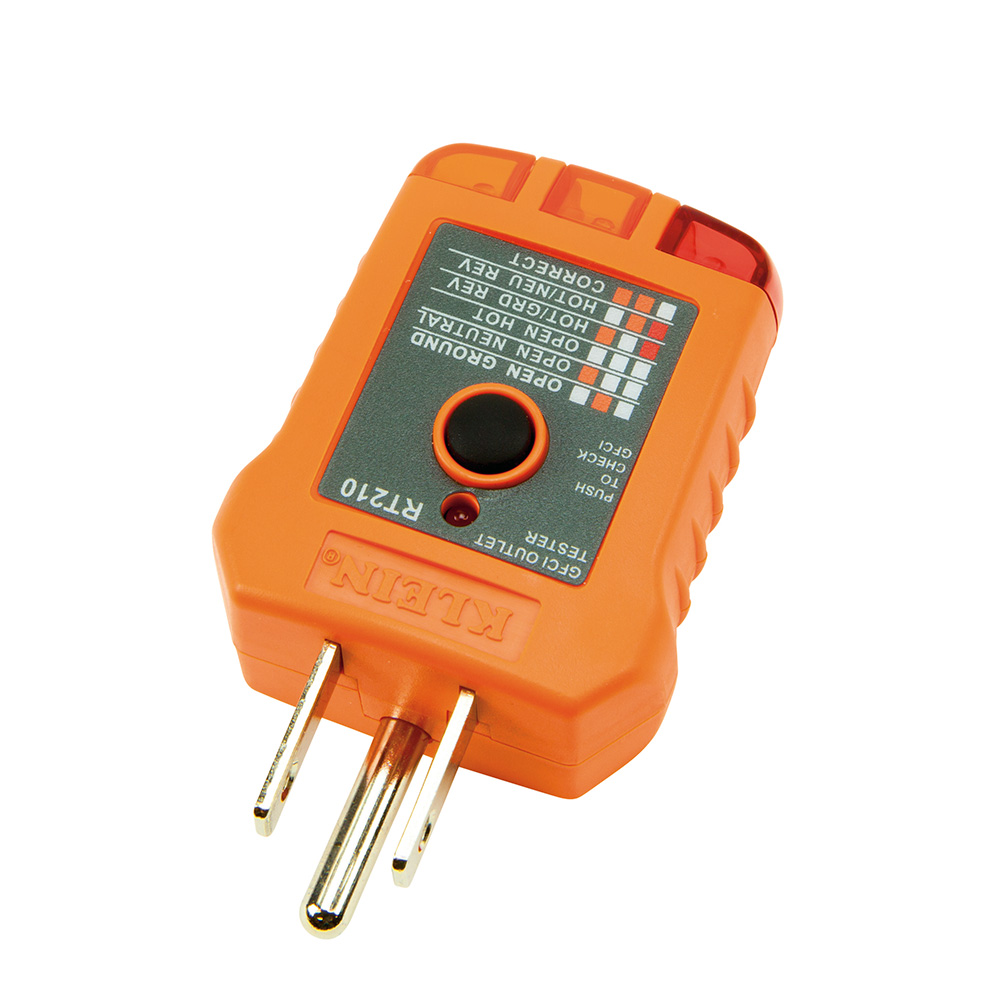

GFCI Receptacle Tester

RT210

  • Detects the most common wiring problems in standard and GFCI receptacles
  • Works on GFI outlets and confirms operation of the ground fault protective device
  • Built to withstand a 6.6-foot (2m) drop
  • Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
  • Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet

GFCI插座测试仪

RT210

  • 检测标准和GFCI插座中常见的接线问题
  • 适用于GFI插座并确认接地故障保护装置的操作
  • 可承受6.6英尺(2米)的跌落
  • 工作温度:32华氏度到140华氏度(0摄氏度到40摄氏度)
  • 标称电压:在3线插座中,50 / 60Hz时为110 / 125V AC

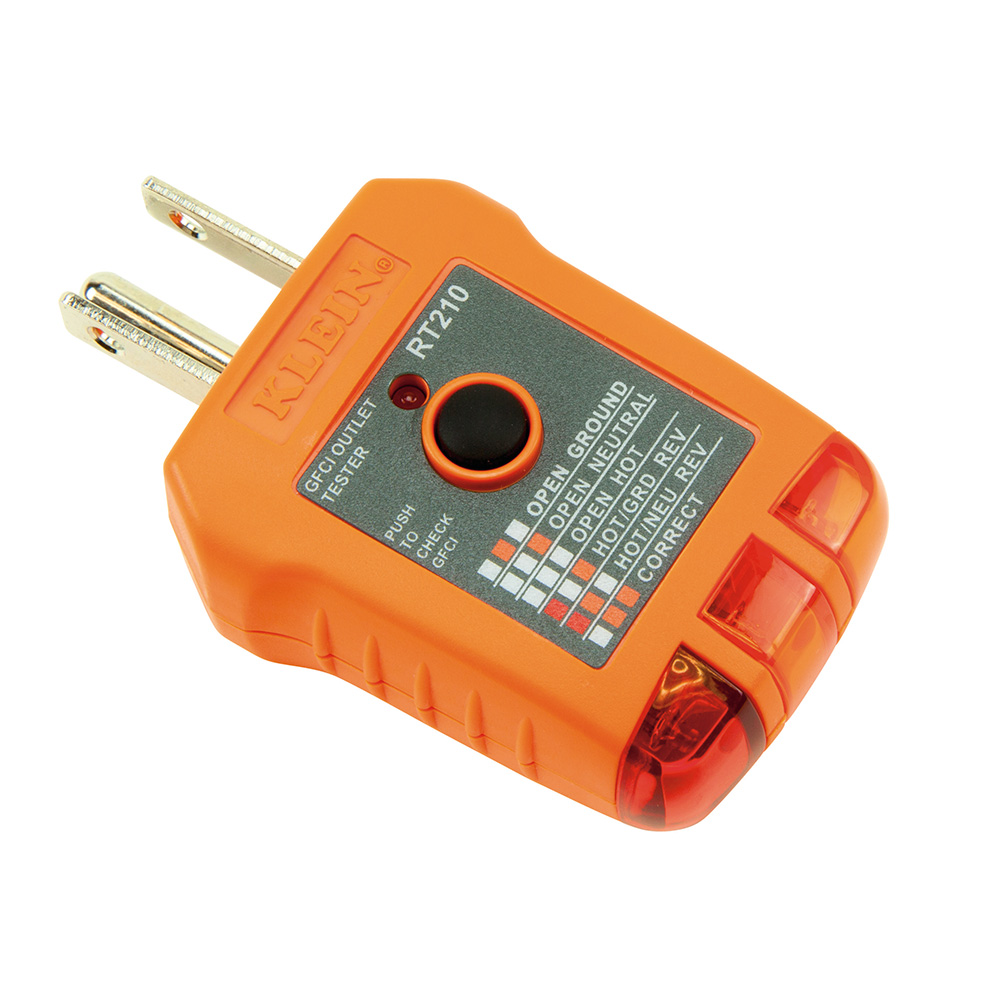

Klein Tools Receptacle Testers are designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot/ground reversed.

Specifications
Type:
GFCI and Standard Receptacle Tester
Application:
Determine Wiring Condition in Outlet
Special Features:
Convenient Chart on the Tester
Drop Protection:
6.6 ft (2 m)
GFCI:
Yes
Voltage:
110/125V AC at 50/60Hz in. 3-Wire Outlet
Overall Length:
1.625” (41.3 mm)
Overall Height:
2.875” (73 mm)
Overall Width:
1.875” (47.6 mm)
Weight:
0.12 lb (0.06 kg)
UPC:
092644690273
WARNINGS
  • Read, understand, and follow all warnings and instructions before operating testers.
  • Always consult a qualified electrician to resolve wiring problems.
  • Always wear approved eye protection.

Klein Tools插座测试仪旨在检测标准和GFCI插座中常见的接线问题。测试仪上方便的图表有助于根据LED灯的结果确定插座的接线状况。条件显示:开路接地,极性反接,开路热,开路中性,热/地反转。

产品规格
类型:
GFCI和标准插座测试仪
应用:
确定出口的接线条件
特殊功能:
测试仪上方便的图表
掉落保护:
6.6英尺(2米)
GFCI:
电压:
110 / 125V AC,50 / 60Hz in.3线插座
总长度:
1.625”(41.3 mm)
总体高度:
2.875英寸(73毫米)
总宽度:
1.875”(47.6 mm)
重量:
0.12磅(0.06千克)
UPC:
092644690273
警告
  • 在操作测试人员之前,请阅读,理解并遵循所有警告和说明。
  • 务必咨询合格的电工以解决接线问题。
  • 始终佩戴认可的护目镜。
