FCI / GFCI Outlet Tester插座测试仪
RT310
- 检测标准,AFCI和GFCI电源插座中常见的接线故障
- 通过模拟电弧故障条件测试AFCI设备
- 通过模拟接地故障条件来测试GFCI设备
- 能够同时检测开路中性线和开放式地线的双开路故障
- 测试仪可以清晰地显示电源插座的接线状况
- 设计用于测试120V AC电路中的北美式接地电源插座(采用三针插头)
- 电源插头位于10英寸(254毫米)柔性电源线上,可以接触难以到达的位置的电源插座
- 低电量指示灯和易于使用的电池盒;?使用3 x 1.5V AAA碱性电池(附带)
- 大约2分钟不使用后自动关机以延长电池寿命
- 可承受6.6英尺(2米)的跌落
- CATIII 135V安全等级
- 测量类别III适用于连接到建筑物低压电源装置分配部分的测试和测量电路
- RT310采用AFCI测试方法

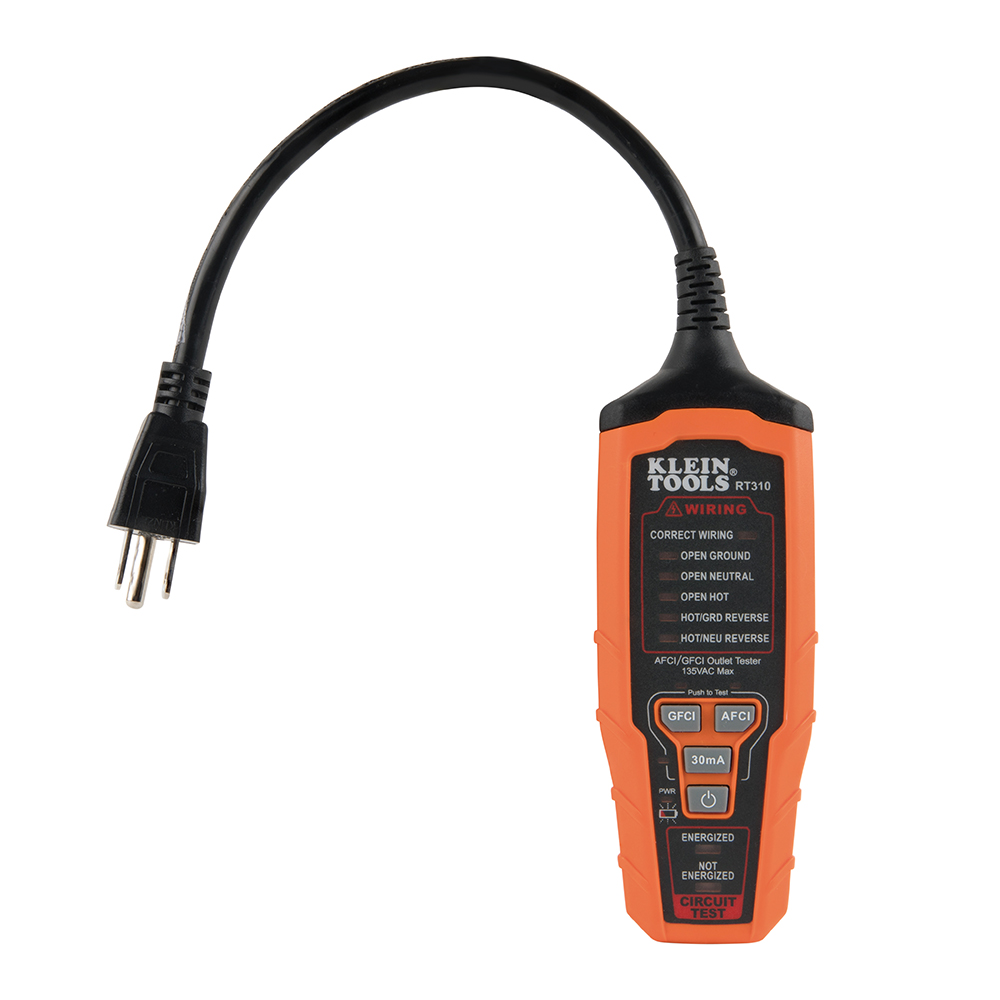

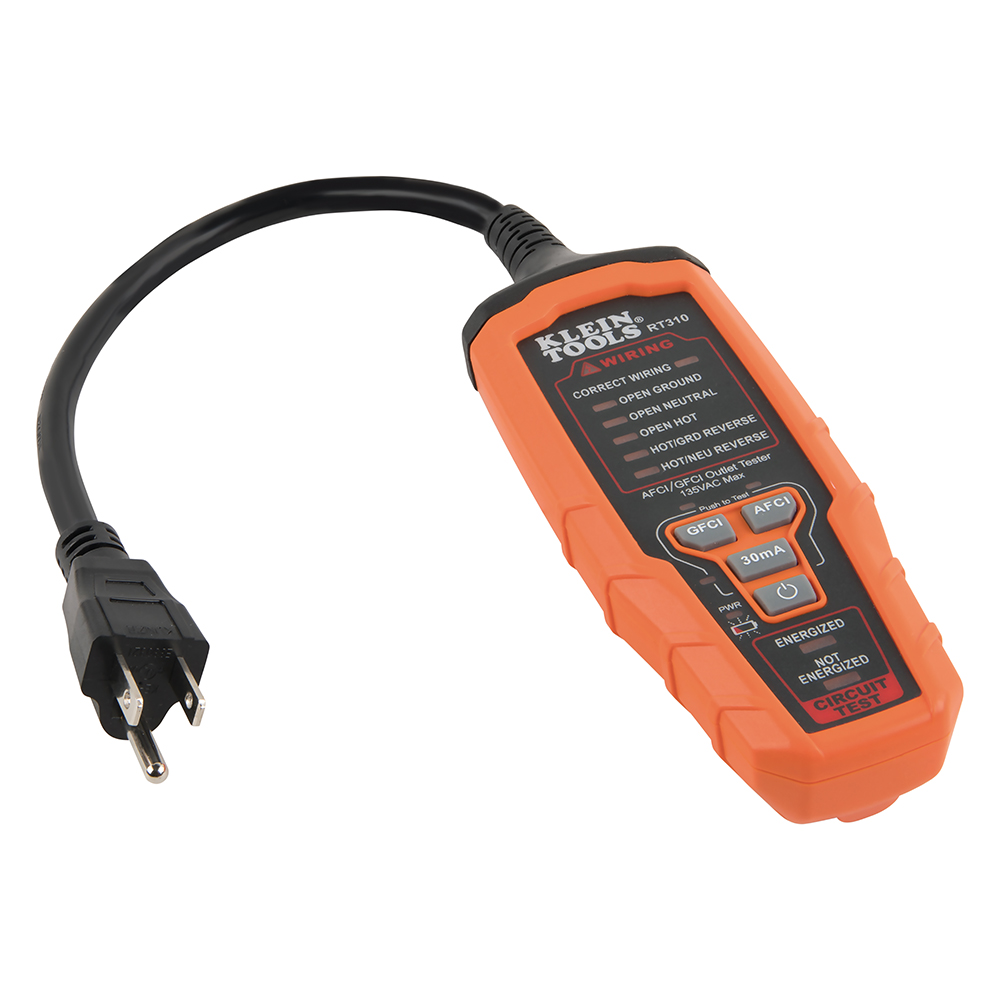

AFCI /GFCI Outlet Tester
RT310
- Detects the most common wiring faults in standard, AFCI, and GFCI electrical outlets
- Test AFCI devices by simulating arc fault conditions
- Test GFCI devices by simulating ground fault conditions
- Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires

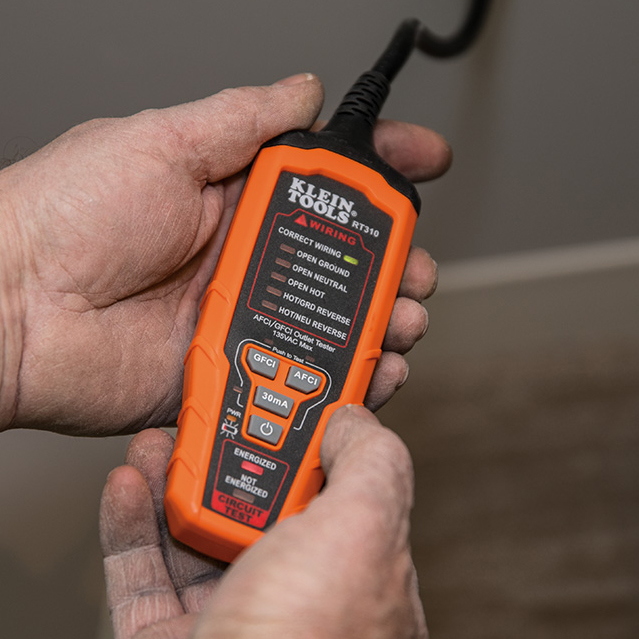

- Tester delivers clear visual indication of the wiring condition at the electrical outlet
- Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
- Electrical plug is on a 10-Inch (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations
- Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included)
- Powers off automatically after approximately 2 minutes of non-use to conserve battery life
- Built to withstand a 6.6-Foot (2 m) drop
- CATIII 135V safety rating
- Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage MAINS installation
- The RT310 features AFCI test method that is unique to Klein Tools
RT310是一款电气测试仪,可测试电源插座的接线状况,并检查和检查AFCI和GFCI设备。它设计用于北美120V电源插座。它可以检测和识别常见的接线故障。包括3 x 1.5V AAA碱性电池。
产品规格
类型:
AFCI / GFCI电池供电出口测试仪
应用:
RT310是一个电源插座测试仪,用于测试电源插座中的接线故障,以及测试AFCI和GFCI设备
特殊功能:
测试AFCI和GFCI,模拟接地故障和弧闪条件,检测双开路接线故障
材料:
带电子元件的PC / ABS外壳
掉落保护:
6.6’(2.0米)
AFCI:
是
GFCI:
是
电压:
3线接地电源插座中的120V AC
电池:
3 x 1.5V AAA电池
包括:
3 x 1.5V AAA碱性电池
标准:
CATIII 135V
总长度:
7.4”(188.0 mm)
总体高度:
1.3”(33.0 mm)
总宽度:
2.3”(58.4 mm)
重量:
8.5盎司(241克)
UPC:
092644691829
警告
- 在操作测试人员之前,请阅读,理解并遵循所有警告和说明
- 在每次使用之前,通过测试已知的带电和正确接线的插座和电路来验证测试仪的操作
- 如果测试仪出现任何损坏,请勿使用
- 该测试仪仅供室内使用。测试仪设计用于120V AC电气系统。请勿连接到更高电压的电源。
- 该测试仪仅检测常见的接线问题。请勿在错误连接的插座上尝试进行电气测试
- 务必咨询合格的电工以解决接线问题。
RT310 is an electrical tester that tests the wiring condition at an electrical outlet, and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets. It can detect and identify common wiring faults. Includes 3 x 1.5V AAA alkaline batteries.
Specifications
Type:
AFCI/GFCI Electrical Battery Operated Outlet Tester
Application:
RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
Special Features:
Tests AFCI and GFCI, Simulates Ground Fault and Arc Flash Conditions, Detects Dual-Open Wiring Fault
Material:
PC/ABS Housing with Electronic Components
Drop Protection:
6.6′ (2.0 m)
AFCI:
Yes
GFCI:
Yes
Voltage:
120V AC in 3-Wire Grounded Electrical Outlet
Batteries:
3 x 1.5V AAA Batteries
Included:
3 x 1.5V AAA Alkaline Batteries
Standard:
CATIII 135V
Overall Length:
7.4” (188.0 mm)
Overall Height:
1.3” (33.0 mm)
Overall Width:
2.3” (58.4 mm)
Weight:
8.5 oz (241 g)
UPC:
092644691829
WARNINGS
- Read, understand, and follow all warnings and instructions before operating testers
- Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit
- DO NOT use if the tester appears damaged in any way
- The tester is intended for indoor use only. Tester is designed for use with 120V AC electrical systems. DO NOT connect to higher voltage electrical supplies.
- This tester only detects common wiring problems. DO NOT attempt electrical testing on an incorrectly wired outlet
- Always consult a qualified electrician to resolve wiring problems.
