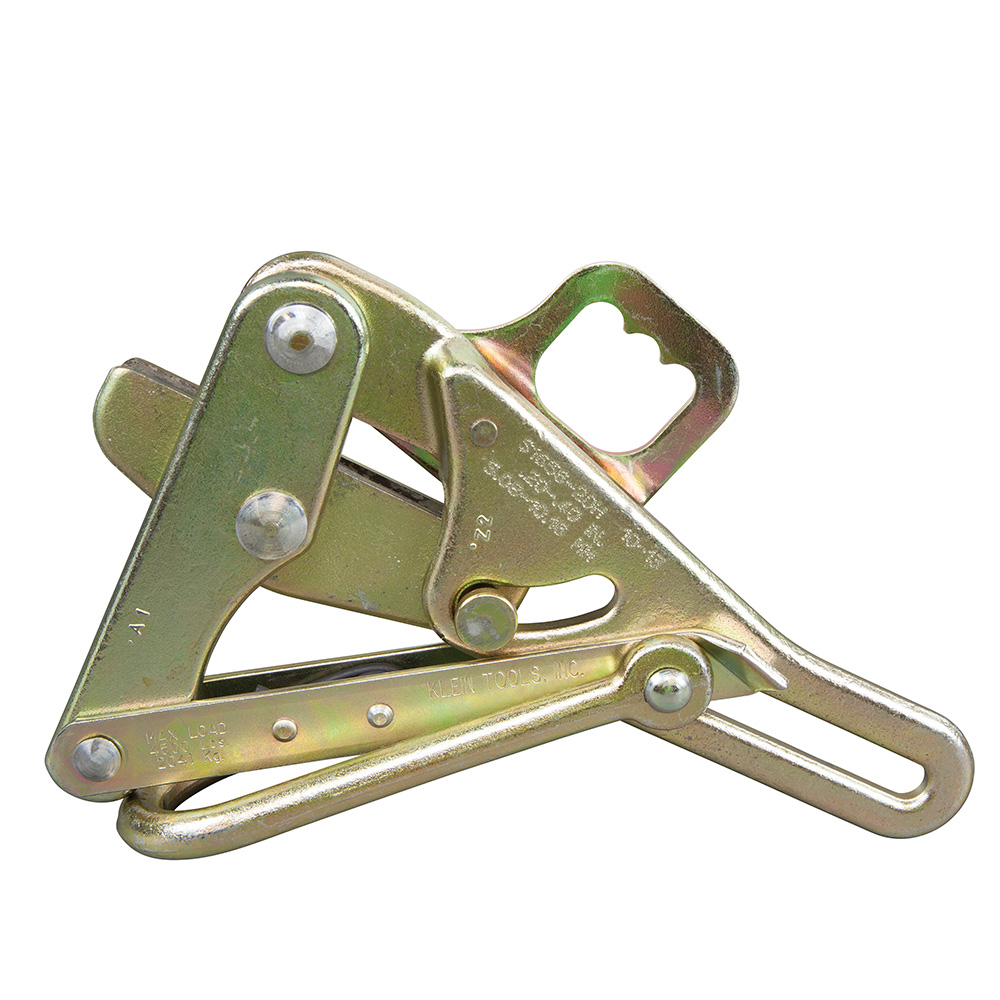

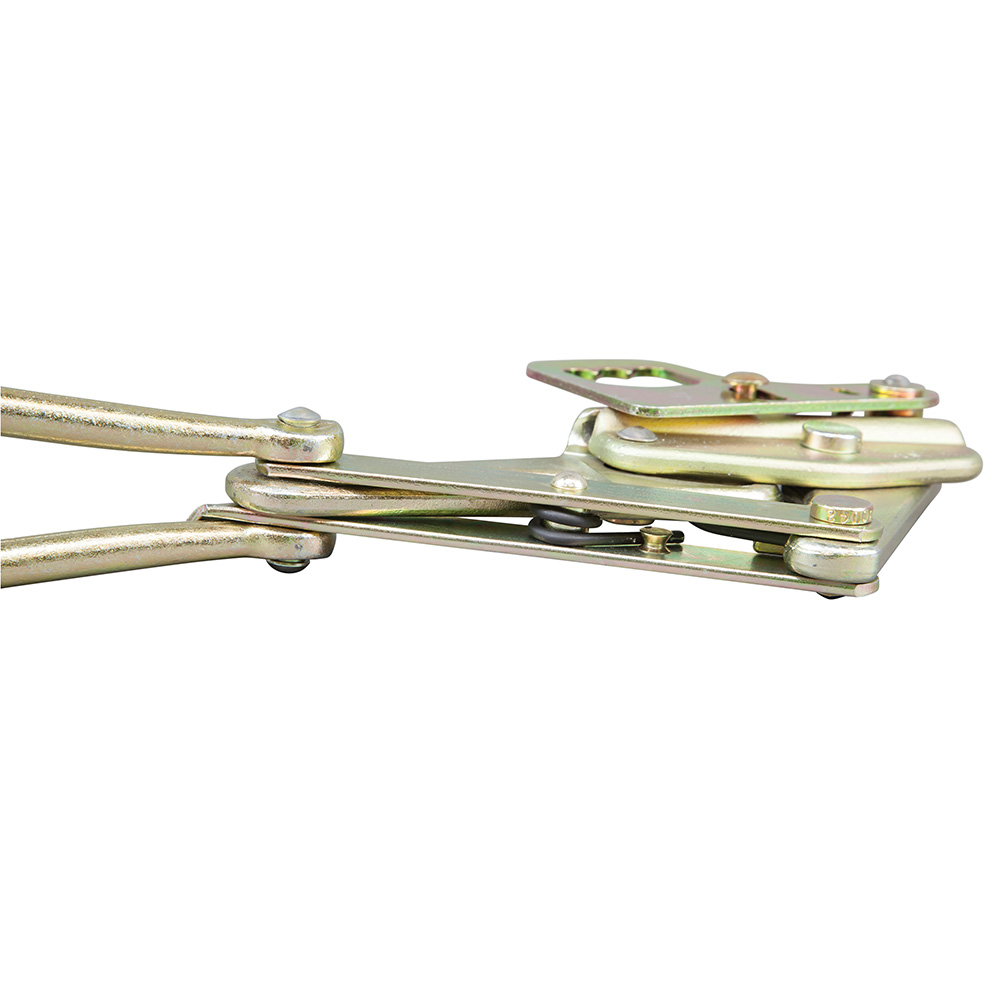

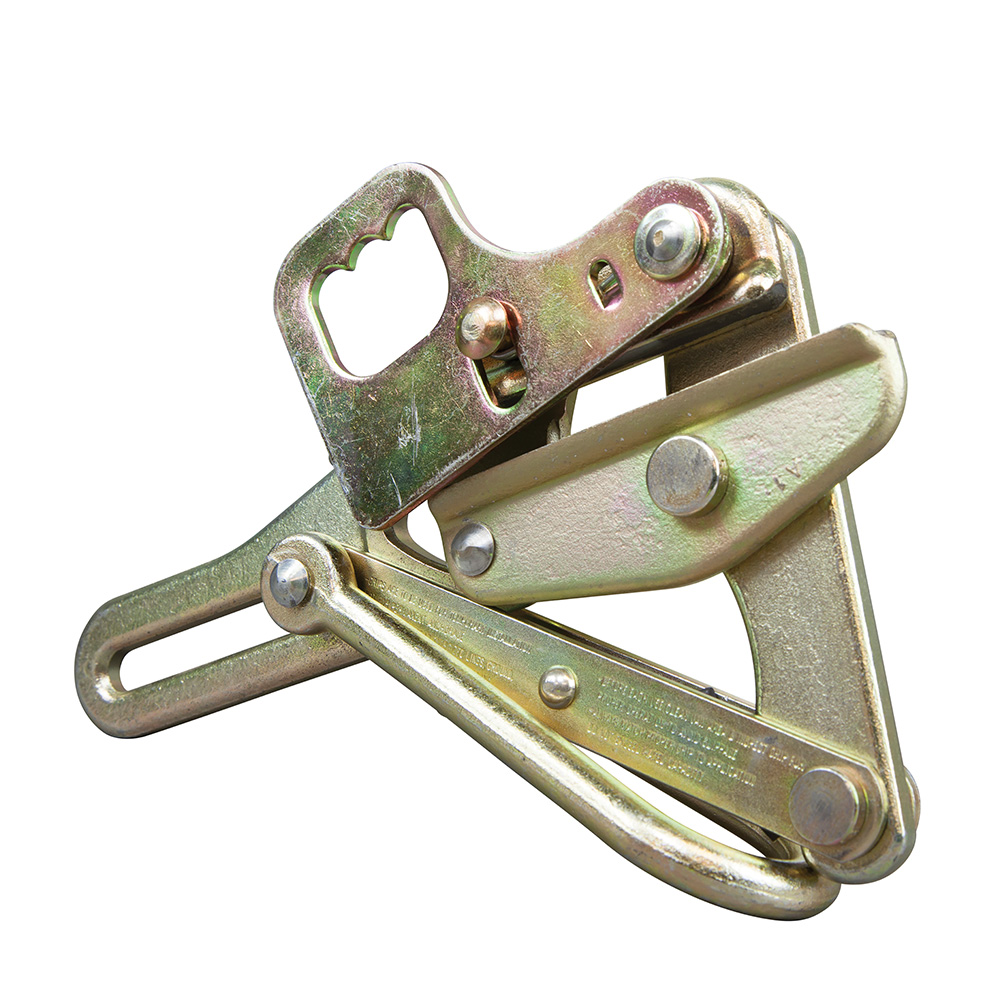

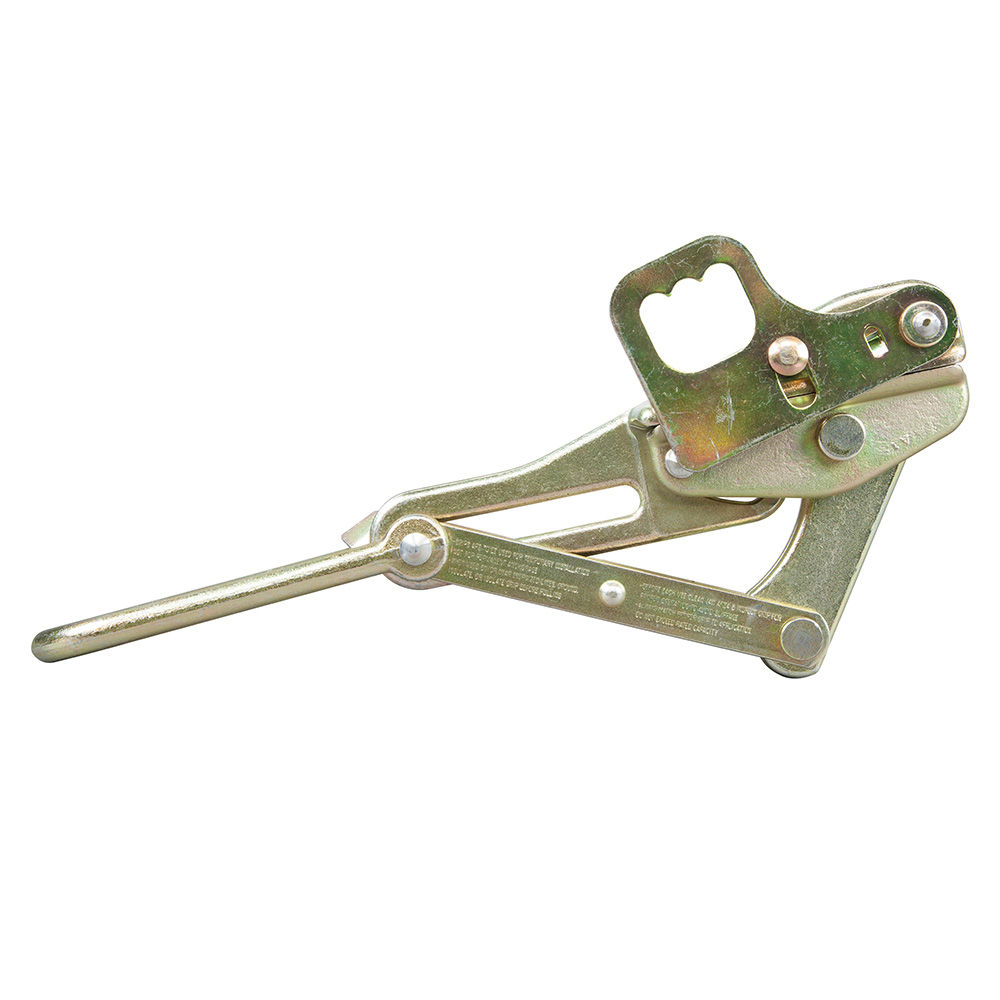

Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch

S1656-20H

  • The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
  • Jaw length: 4-3/16-Inch
  • Maximum safe load of 4,500 pounds
  • Standard hot-line grips are not supplied with springs or lock-open features
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Chicago Grip,Forged,Hot-Line,0.20至0.40英寸

S1656-20H

  • Klein S1656-20H Chicago Grip-with热线闩锁用于裸导线具有圆形内颚轮廓
  • 下颌长度:4-3 / 16英寸
  • 最大安全载荷为4,500磅
  • 标准热线夹具不提供弹簧或锁定打开功能
  • Klein为产品的正常使用寿命提供材料缺陷和工艺保修

The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Specifications
Cable Type:
Copper, ACSR, AAC
Cable Diameter:
0.20” to 0.40” (5.08 to 10.16 mm)
Jaw Type:
Round
Jaw Length:
4” ((101.6 mm)
Maximum Safe Load:
4500 lb (2041 kg)
Weight:
3.15 lb (1.43 kg)
UPC:
092644471063
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

用于裸导线的Klein S1656-20H芝加哥夹具 – 热线锁扣适用于裸导线和绝缘导线。用于裸导线的Klein S1656-20H Chicago Grip-with Hot-Line Latch可以用热线棒放在电线上。当取下斗杆时,闩锁会??自动关闭,以防止抓地意外脱离钢丝。

产品规格
电缆类型:
铜,ACSR,AAC
电缆直径:
0.20英寸到0.40英寸(5.08到10.16毫米)
颚类型:
下颚长度:
4”((101.6 mm)
最大安全载荷:
4500磅(2041千克)
重量:
3.15磅(1.43千克)
UPC:
092644471063
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
