Megapod
参考:SA 17
- Megapod配备了高品质,坚固耐用的系统,可在需要时确保性能。
- KARAM Megapod由铝制成,因此非常轻便,便于携带,只需一名工人即可轻松安装,可从一个工作区运输到另一个工作区。
- 适用于密闭空间进入和紧急救援应用。可以与所有KARAM绞车和防坠装置轻松使用,例如。块
- 可调节高度,从地面1.32米到2.13米。
- 腿之间的最小和最大距离:SA 17(7英尺)0.85米和1.23米,SA 17(10英尺)0.96米和1.72米。
- 通过滑动望远镜腿可以实现内外调整。
- 提供用于Winch装配的滑轮系统(钢缆导向)。
- 可与所有绞盘一起使用,即PN 801,PN 817,PN 818,检索防坠器块PCGS 10R,PCGS 20R和PCGS 30R,分别借助其专用安装支架。
- 这款Megapod配有Megapod包Ref。BG 62
KARAM Megapod的其他重要功能:
- 锁腿
- 简单的棘爪销式调节
- 快速安装机械设备支架
- 用于防止移动的安全链,以及用于平坦表面的橡胶鞋底的安全鞋,以及用于光滑表面的尖刺边缘。
模型 | 长度 | 可调节高度 | 轴距尺寸(?) | 重量(Kg) | 最大。承载量 | |
SA 17 | 7英尺 | 1.32米至2.13米 | 1.21米至2.0米 | 19.0 | 500公斤 | |
SA 17 | 10英尺 | 2.22米至3.14米 | 1.70米至2.47米 | 23.83 | 500公斤 | |
SA 17(W) | 7英尺 | 1.32米至2.13米 | 1.21米至2.0米 | 19.34 | 500公斤 | |
SA 17(W) | 10英尺 | 2.22米至3.14米 | 1.70米至2.47米 | 24.13 | 500公斤 |
Megapod
Ref : SA 17
- The Megapod is equipped with high quality, rugged systems that will ensure top performance when it is needed the most.
- KARAM Megapod is made from Aluminium hence is extremely lightweight and portable, easily set-up by just one worker and can be transported from one work area to another.
- Ideal for confined space entry and emergency rescue applications. Can be used easily with all KARAM Winches and fall arrest devices eg. Blocks
- Comes with Adjustable height from 1.32 m to 2.13 mfrom ground level.
- Minimum & Maximum distance between the legs : SA 17 (7ft) 0.85m & 1.23m, SA 17 (10ft) 0.96m & 1.72m.
- Inner & Outer Adjustment can be achieved by Sliding Telescope Legs.

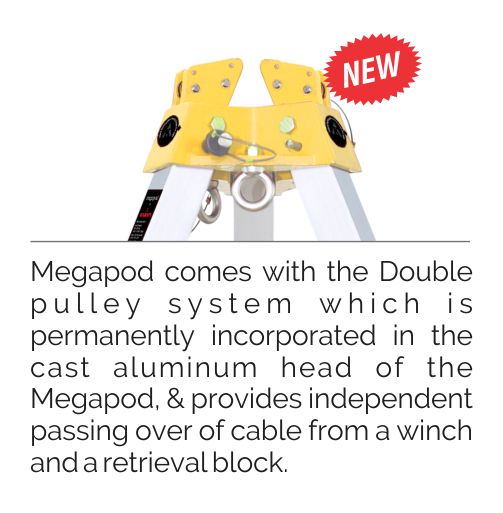

- Provided with a Pulley system (steel cable guiding) for fitment of Winch.

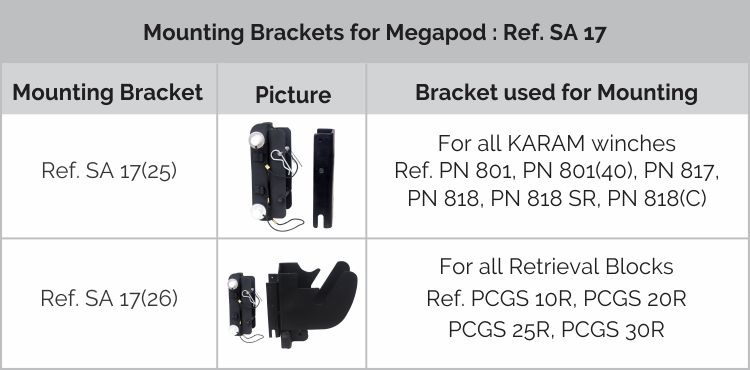

- Can be used with all the Winches namely PN 801, PN 817, PN 818, Retrieval Fall Arrester Blocks PCGS 10R, PCGS 20R & PCGS 30R with the help of their specialized mounting brackets respectively.
- This Megapod is provided with Megapod bag Ref. BG 62
Other significant features of KARAM Megapod :
- Locking legs
- Simple detent pin style adjustment
- Quick-mount mechanical device bracket
- Safety chain to prevent movement, and safety shoes that incorporate a rubber sole for flat surfaces, and spiked edges for slippery surfaces.
Model | Length | Adjustable Height | Wheelbase Footprint (?) | Weight (Kg) | Max. Load Capacity | |
SA 17 | 7 ft | 1.32m to 2.13m | 1.21m to 2.0m | 19.0 | 500kg | |
SA 17 | 10 ft | 2.22m to 3.14m | 1.70m to 2.47m | 23.83 | 500kg | |
SA 17(W) | 7 ft | 1.32m to 2.13m | 1.21m to 2.0m | 19.34 | 500kg | |
SA 17(W) | 10 ft | 2.22m to 3.14m | 1.70m to 2.47m | 24.13 | 500kg |
