推车SLB 125上的基本单元
SLB 125 3in1母线中心可确保轻松切割，冲压和弯曲高达125 x 13 mm（4“x1 / 2”）的铜母线。开关柜工作车间或现场的理想选择，基本单元可在几秒钟内转换成切割，冲压或折弯机。
性能可与固定式铜母线机相媲美，例如在6秒内切割120 x 10 mm（4 3/4“x 3/8”）铜母线。铜母线的冲压快速，轻松且无任何预制 – 标记母线。固定或可调节的导板可以实现对普通开关柜孔图案的即时冲压。用于弯曲铜母线的各种弯曲配件根据现代开关设备和断路器的要求，可以提供紧凑和特定的弯曲曲线。即使是柔性铜母线的加工也可以实现很高的安全性和切削刃质量。
单个模具制造母线：
精确，简单，快捷。
好处
- 特别坚固和坚固的框架
- 快速工具以很少的操作变化
- 非常高质量的切割，弯曲和冲孔
- 150 bar低压系统确保了较长的使用寿命和非常快的循环时间
- 母线精确弯曲至120° – 设定角度的非常精确的再现性
- 适用于最大125 x 13 mm的母线
- 可提供柔性母线的配件

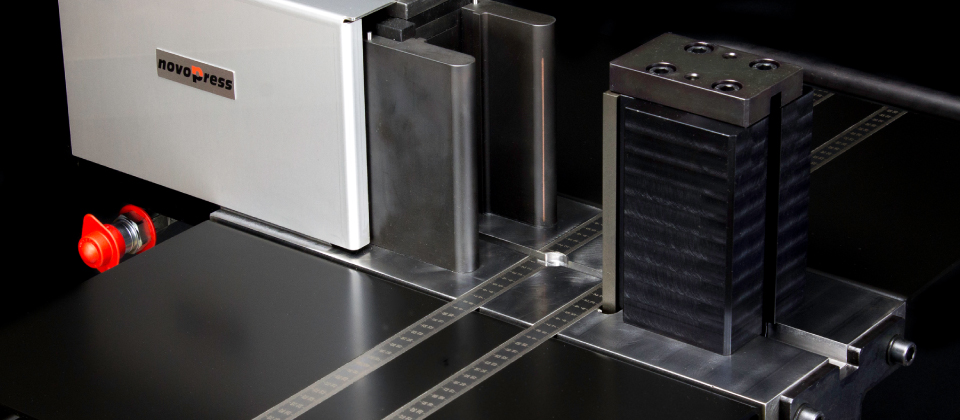

Basic unit on trolley SLB 125
The unique SLB 125 3in1 busbar center guarantees effortless cutting, punching and bending of copper busbars up to 125 x 13 mm (4″x1/2″). Ideal for the switchgear work shop or at site the base unit transforms into a cutting, punching or bending machine within seconds.
Performance is comparable with stationary copper busbar machines, e.g. cutting of a 120 x 10 mm (4 3/4″x 3/8″) copper busbar, in just 6 sec.. Punching of copper busbars is quick, effortless and without any pre-marking of the busbar. Fixed or adjustable guide plates will allow instant punching of common switchgear hole pattern. For bending of copper busbars a broad range of bending accessories will allow tight and specific bending curves as requested in modern switchgear and circuit breakers. Even processing of flexible copper busbar is possible with great safety and cutting edge quality.
Busbar fabrication from a single mould:
Precise, simple and quick.
Advantages
- especially robust and stiff frame
- lightning-swift tool changes with a minimum of manipulation
- very high quality cutting, bending and punching
- the 150 bar low-pressure system ensures a long service life and very fast cycle times
- busbars bent accurately up to 120° – very accurate reproducibility of the set angle
- for busbars up to 125 x 13 mm
- accessories for flexible busbars available
技术规格
| 高度 | 1,145毫米 |
|---|---|
| 深度 | 750毫米 |
| 宽度 | 750毫米 |
| 重量 | 180公斤 |
| 运营压力 | 150巴 |
| 力 | 180 KN |
| 额定功率 | 1~230 V / 50 Hz |
| 电压 | 0.75千瓦 |
| 切割最大 | 最大。125 x 13 mm 250 N / mm2 |
| 冲孔最大 | 最大。6bis21 mm |
| 弯曲最大 | 最大。125 x 13 mm 250 N / mm2 |
SLB125Kombigert3合1完整系统Ref.No.39659
| Power Pack HA3 | 参考编号。33340 |
|---|---|
| 切割用具 | 参考编号。31242 |
| 弯曲工具 | Ref.No.31243 |
| 冲孔工具 | 参考编号。30980 |
| 指导板 | 参考编号。31890 |
| 工具刀片直径9.0 mm | 参考编号。31161090 |
| 工具插件直径11.0 mm | 参考编号。31161110 |
| 工具插件直径14.0 mm | 参考编号。31161140 |
| SLB 125推车上的基本单元 | 参考编号。40070 |
Technical specifications
| Height | 1,145 mm |
|---|---|
| Depth | 750 mm |
| Width | 750 mm |
| Weight | 180 kg |
| Operating pressure | 150 bar |
| Force | 180 KN |
| Power rating | 1~ 230 V/50 Hz |
| Voltage | 0.75 KW |
| Cutting max. | max. 125 x 13 mm250 N/mm2 |
| Punching max. | max. 6 bis 21 mm |
| Bending max. | max. 125 x 13 mm 250 N/mm2 |
SLB 125 Kombigert 3 in 1 Complete SystemRef.No. 39659
| Power Pack HA3 | Ref.No. 33340 |
|---|---|
| Cutting Tool | Ref.No. 31242 |
| Bending Tool | Ref.No.31243 |
| Punching Tool | Ref.No. 30980 |
| Guiding Plate | Ref.No. 31890 |
| Tool insert 9.0 mm dia | Ref.No. 31161090 |
| Tool insert 11.0 mm dia | Ref.No. 31161110 |
| Tool insert 14.0 mm dia | Ref.No. 31161140 |
| SLB 125 Basic uniton trolley | Ref.No. 40070 |
大步弯曲工具Ref.No.31646
用于高达120 x 10 mm母线的快速和100％平行步进弯曲。
步宽= 37毫米宽，25毫米高。
小步弯曲工具Ref.No.31425
用于高达80 x 8 mm母线的快速和100％平行步进弯曲。
步宽= 21毫米宽，18毫米高。
Supplementary-Bender-SLB Ref.No.31636
L型弯曲工具允许短“L”弯曲，腿部仅25 mm。
SLB 125标准设置允许45 mm作为最短腿。

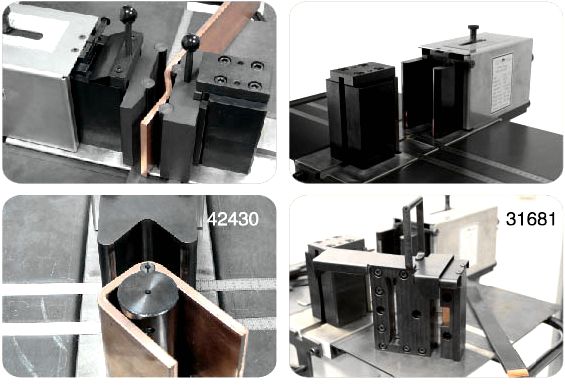

Special-U-Bender Ref.No.42430
在多用途铜母线机上，紧U形弯曲通常是一个问题。使用我们特殊的U型弯曲工具，您可以将铜母线弯曲至60 mm（2.4“）内部。使用这种非常紧凑的铜母线几何形状，您的开关设备将始终处于”形状“状态。
切割墨盒Ref.No.45445
为了切割高达120 x 10 x 1 mm的柔性铜母线，我们提供全新的SLB 125切割盒。
有了这个，所有新的墨盒切割变得简单，安全和很好的质量。有问题的铜锯和相关的灰尘和碎屑已成为过去。无论切割绝缘或剥离的铜条，后续处理都将无故障。对于冲压柔性母线，我们建议使用包括剥离板在内的特殊冲压模具。

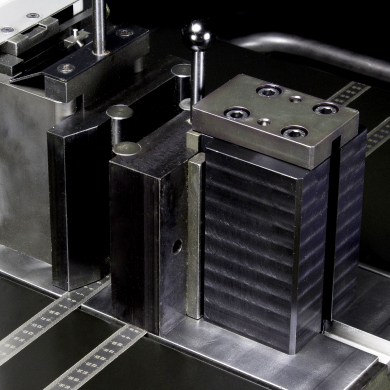

Large-Step-Bending-ToolRef.No. 31646
For quick and 100 % parallel step bends on up to 120 x 10 mm busbars.
Step = 37 mm wide and 25 mm high.

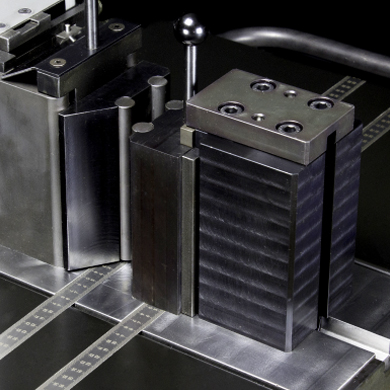

Small-Step-Bending-ToolRef.No. 31425
For quick and 100 % parallel step bends on up to 80 x 8 mm busbars.
Step = 21 mm wide and 18 mm high.

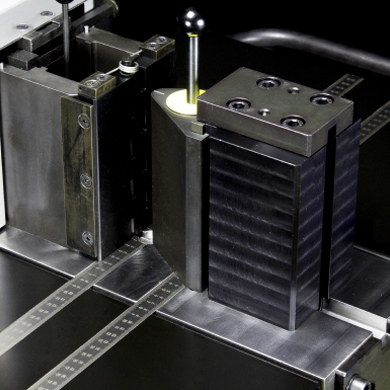

Supplementary-Bender-SLBRef.No. 31636
The L-Bending-Tool will allow short “L”-bends with only 25 mm leg.
SLB 125 standard setup will allow 45 mm as shortest leg.

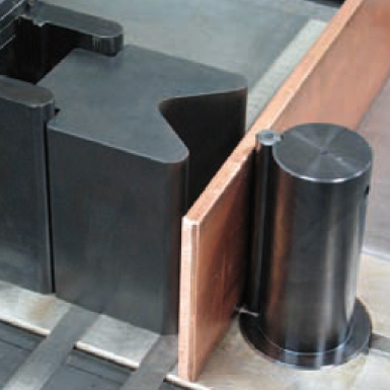

Special-U-BenderRef.No. 42430
Tight U-bends are often a problem on multi-purpose copper busbar machines. With our special U-Bending-Tool you can bend your copper busbar as tight as 60 mm (2.4″) inside. With this very tight copper busbar geometry your switchgear will always be “in shape”.

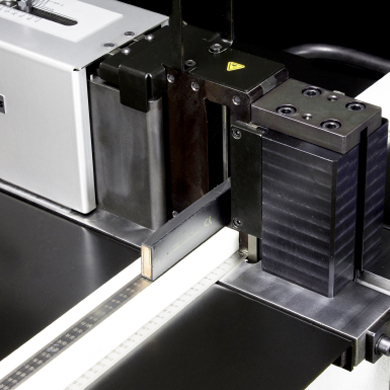

Cutting CartridgeRef.No. 45445
For cutting flexible copper busbars up to 120 x 10 x 1 mm our brand new SLB 125 Cutting Cartridge is available.
With this all new cartridge cutting becomes easy, safe and of outstanding quality. The problematic copper sawing and related dust and chips are a thing of the past. Regardless of cutting insulated or stripped copper bars, subsequent processing will be trouble free. For punching flexible busbar we recommend using the special punching dies including stripper plate.
