Stingray 2.0便携式明渠流量计 水平速度记录仪
- 测量部分填充管道和明渠中的水位和速度
- 不需要水槽或堰
- 很低的功耗
- 使用标准碱性D-cell电池
- 130,000点数据记录器
- USB输出
- Windows软件
- LCD条形图显示
Stingray 2.0 Portable Level-Velocity Logger
- Measures water level and velocity in partially filled pipes and open channels
- No flume or weir required
- Extreme low power consumption
- Uses standard alkaline D-cell batteries
- 130,000 point data logger
- USB output
- Powerful Windows software
- LCD bar graph display

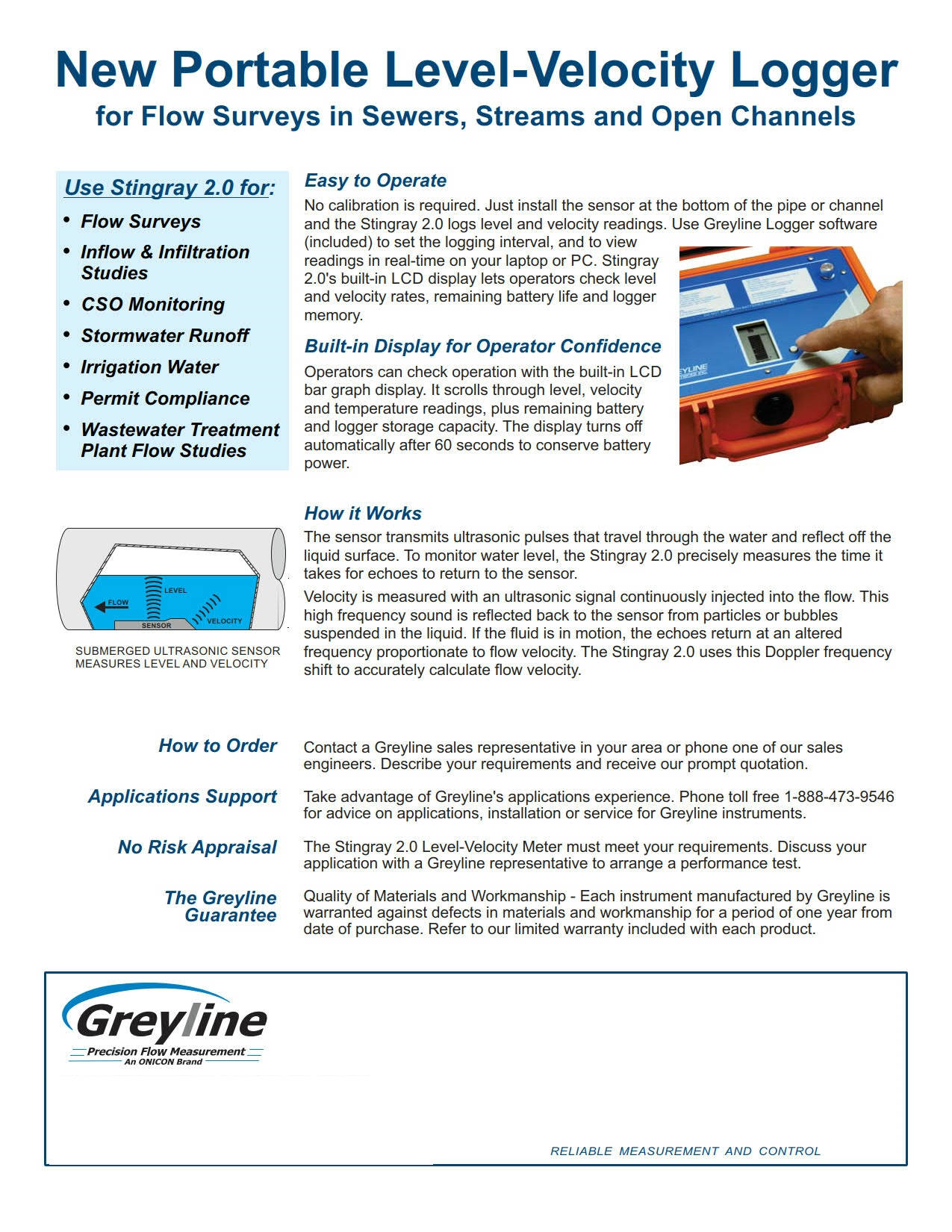

小巧便携
Stingray 2.0是一款紧凑型电池供电记录仪，带有超声波传感器。它通过开放通道，部分完整的下水道管道和附加管道监测流量监测的数据记录水平，速度和水温读数。用于流量调查，I＆I研究，雨水，灌溉用水和污水处理。
流体动力学超声波传感器
Stingray 2.0使用浸没式超声波传感器连续测量通道中的速度和水平。传感器是密封的超声波单元，没有孔口或端口。它具有流体动力学形状，设计用于排放沉积物和桁条，以便在污水，雨水和溪流应用中可靠运行。QZ02L传感器安装在管道内或开放通道的底部。不需要特殊的化合物，工具或硬件。包括不锈钢安装支架。

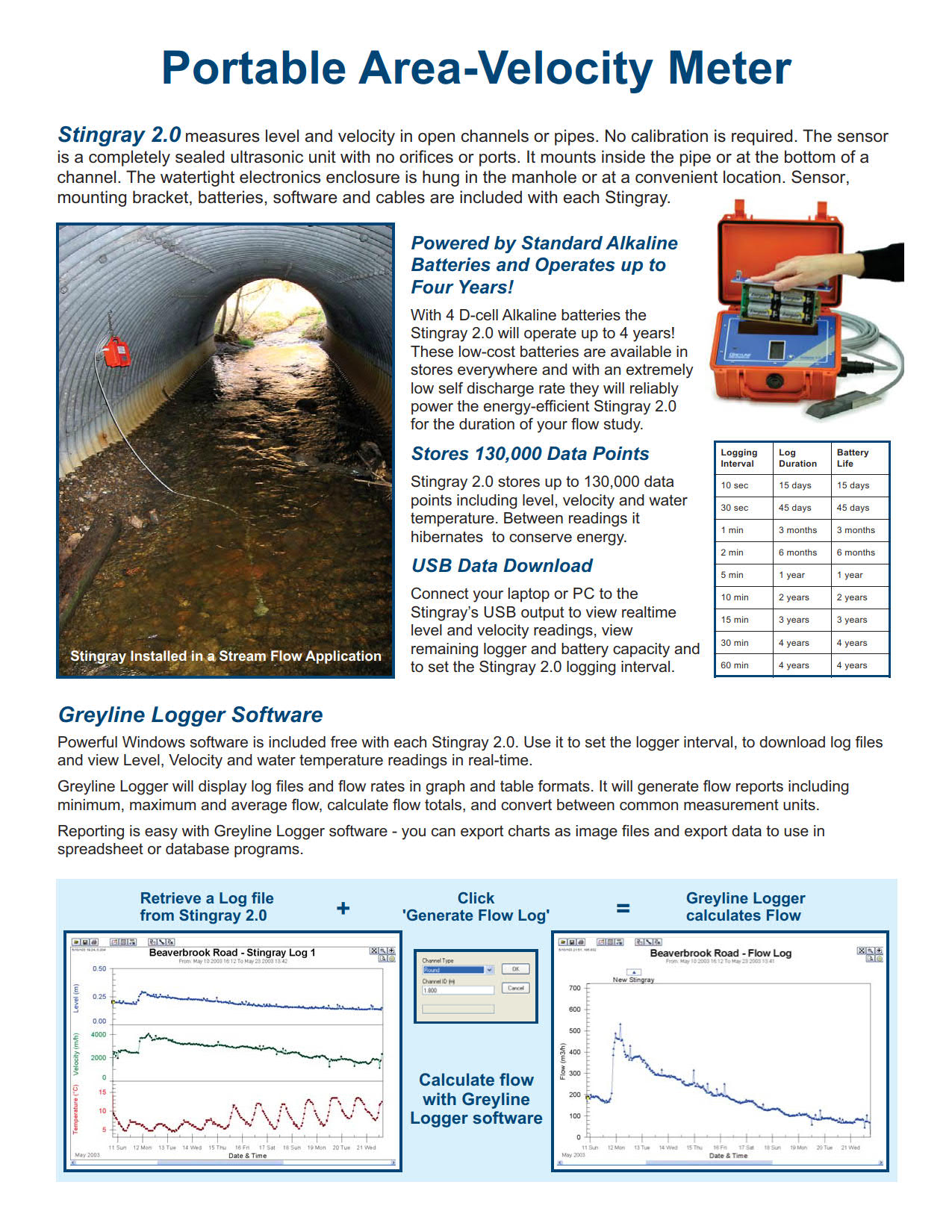

由标准碱性电池供电
使用4个标准碱性D-cell电池，Stingray 2.0将运行长达4年！这些廉价的碱性电池可以在各地的商店中使用，并且具有很低的自放电率，它们可以在流量研究期间可靠地为节能的Stingray 2.0供电。
Stingray 2.0存储130,000个数据点，包括水平，速度和水温。在读数之间，它会断电以节省能量。
Stingray 2.0置信度显示
您可以使用内置LCD条形图显示来检查操作。它可以滚动水平，速度和温度读数，以及剩余的电池和记录器存储容量。60秒后显示屏将自动关闭以节省电池电量。
Compact and Portable
Stingray 2.0 is a compact, battery-powered logger with an ultrasonic sensor. It data logs level, velocity and water temperature readings for flow monitoring through open channels, partially full sewer pipes and surcharged pipes. Use it for flow surveys, I & I studies, stormwater, irrigation water and sewage.
Hydrodynamic Ultrasonic Sensor
Stingray 2.0 uses a submerged ultrasonic sensor to continuously measure both velocity and level in the channel. The sensor is a completely sealed ultrasonic unit with no orifices or ports. It is hydrodynamically shaped and designed to shed deposits and stringers for reliable operation in sewage, stormwater and stream flow applications. The QZ02L sensor mounts inside the pipe or at the bottom of an open channel. No special compounds, tools or hardware are required. A stainless steel mounting bracket is included.
Powered by Standard Alkaline Batteries
With 4 standard Alkaline D-cell batteries the Stingray 2.0 will operate up to 4 years! These inexpensive Alkaline batteries are available in stores everywhere and with an extremely low self discharge rate they will reliably power the energy-efficient Stingray 2.0 for the duration of your flow study.
Stingray 2.0 stores 130,000 data points including level, velocity and water temperature. Between readings it powers down to conserve energy.
Stingray 2.0 Confidence Display
You can check operation with the built-in LCD bar graph display. It scrolls through level, velocity and temperature readings, plus remaining battery and logger storage capacity. The display turns off automatically after 60 seconds to conserve battery power.

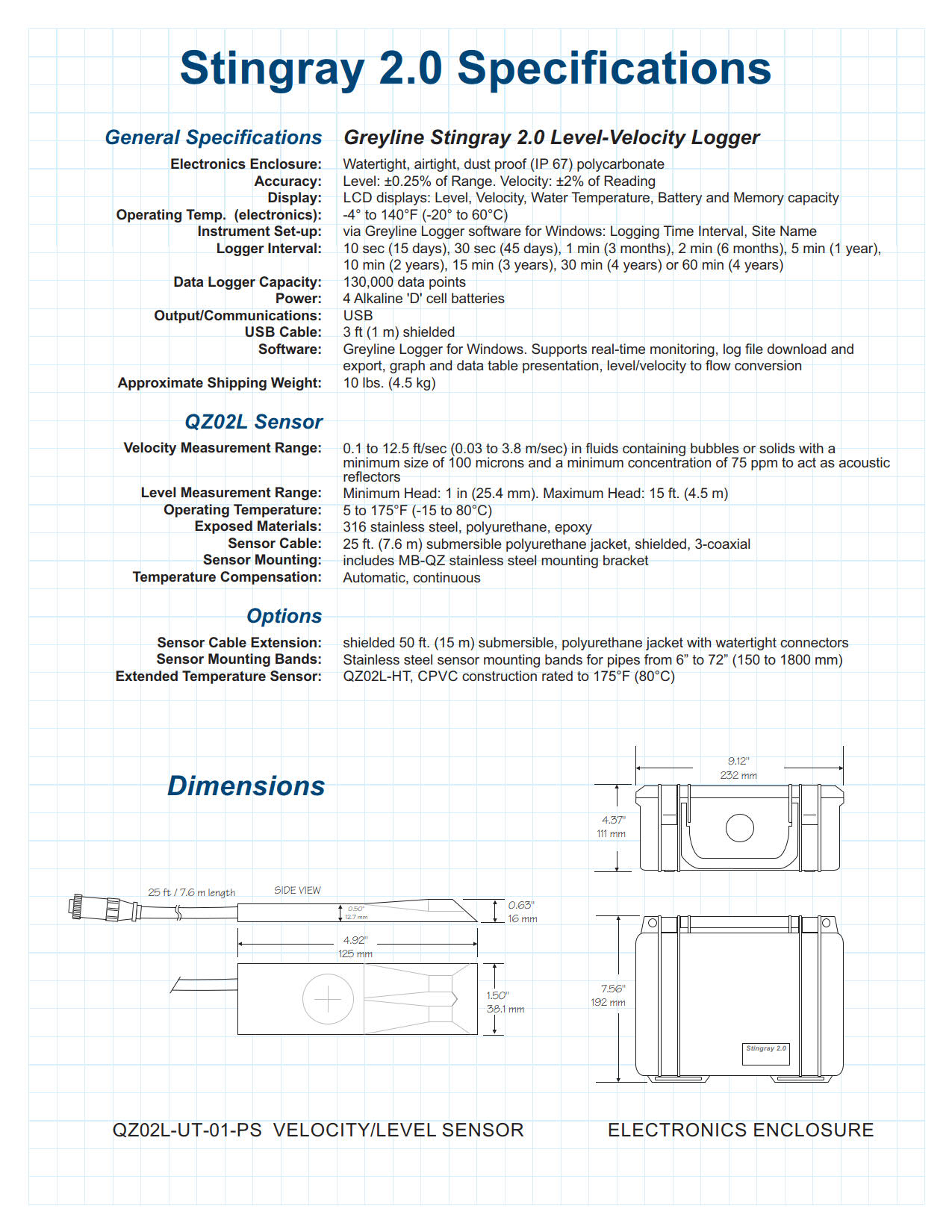

便携式水平速度记录仪规格
范围：本规范包括一个便携式水平速度记录仪，由Greyline Instruments，Largo，Florida/Long Sault，Ontario制造。
仪器应提供明渠和部分充水或充水管道中流量的液位、速度和温度读数的测量和数据记录。
A.通用
水平速度记录器包括一个潜水超声波传感器、连接电缆和一个带有电子设备和显示器的远程外壳。
系统应无活动部件。
液位测量精度应为液位的±0.25%。
速度测量精度应为读数的±2%。
B.传感器
超声波传感器的额定值应为IP68，用于连续浸入液体中。
利用超声波多普勒原理，传感器应测量0.1至12.5 ft/sec（0.03至3.8 m/sec）的流体速度。
利用超声波回声测距原理，水下传感器应测量管道或通道底部上方1“至15 ft.（25.4 m m至4.57 m）的液位。
最小可检测水平不得大于1”（25.4 mm）。
液位传感电路应包括用于自动温度补偿的温度传感器。
传感器应由316不锈钢和环氧树脂制成。
传感器工作温度应为5°F至175°F（-15°C至80°C）。
C.传感器
连接电缆
提供最小长度为25英尺（7.6米）的三同轴电缆，并将其封装在传感器头上。
传感器电缆应防水和电屏蔽。外露材料应仅为聚氨酯。
传感器应包括用于连接仪表电子设备的防水插头。
D.记录器电子设备
不需要校准。
液位速度记录器应测量管道或通道底部的液位和流速。
记录器电子设备的工作温度应为-5°至140°F（-20°至60°C）。
应具有USB输出，以便将日志文件传输到Windows计算机或笔记本电脑。
提供一个LCD条形图显示，以指示液位、速度和温度读数，以及剩余电池和记录器的存储容量。
应安装在防水IP67外壳内，带铰链、锁盖和防水传感器电缆入口。
记录器容量应为130000个数据点。每个数据点包括水平、速度和温度读数。
记录器采样率应由用户从10或30秒、1、2、5、10、30或60分钟中选择。
应由4个D电池碱性电池供电。电池寿命应与记录器的存储容量相匹配：15天，10秒采样率，60分钟采样率，最多4年。
E.PC软件
应包括Windows软件，用于从水平速度记录器中检索、显示、保存和导出日志文件。
应支持Windows版本，包括XP、Vista、7、8和10。
应将水平速度读数转换为渠道形状的流量，包括圆管、矩形、梯形和蛋形渠道。
应将水位读数转换为水槽和堰的流量。
应提供与水平速度记录器的“实时”通信，以显示刷新率不超过10秒的读数。
应允许操作员在10或30秒、1、2、5、10、15、30或60分钟内设置水平速度仪的记录速率。
应显示电池剩余寿命和记录器剩余容量。
应以图形和表格格式显示、保存、输出至打印机，并输出水平速度日志文件。导出日志文件应进行分隔，以便导入到电子表格或数据库程序。
应允许线性和体积单位的转换。
F.根据需要插入的可选功能
应包括50 ft/15 m长的传感器电缆延长线和水密连接器插头，以允许传感器安装与电子外壳之间的总距离为75 ft/23 m。
电缆延长线应采用耐用聚氨酯涂层进行屏蔽、潜水。
G.制造商
水平速度记录仪应采用Greeyline仪器的Stingray 2.0型号，并保证一年内不会出现材料和工艺缺陷。
软件应为Greyline仪器的“Greyline记录器”。
规格如有更改，恕不另行通知。如果您在申请中需要更多信息或建议，请联系Greyline。我们可以提供报价，并向贵公司所在地区的Greyline销售代表咨询。
PORTABLE LEVEL-VELOCITY LOGGER SPECIFICATIONS
SCOPE: This specification covers a portable Level-Velocity Logger as manufactured by Greyline Instruments, Largo, Florida / Long Sault, Ontario. The instrument shall provide for measurement and data logging of level, velocity and temperature readings from flow in open channels and partially filled or surcharged pipes.
A. GENERAL
Level-Velocity Logger to consist of a submersible ultrasonic sensor, connecting cable, and a remote enclosure with electronics and display. System shall have no moving parts.
Level measurement accuracy shall be ±0.25% of Level. Velocity measurement accuracy shall be ±2% of reading
B. TRANSDUCER (SENSORS)
Ultrasonic sensor shall be rated IP68 for continuous submersion in liquids.
Using the ultrasonic Doppler principle, the sensor shall measure fluid velocities from 0.1 to 12.5 ft/sec (0.03 to 3.8 m/sec).
Using ultrasonic echo-ranging principle, the submerged sensor shall measure liquid level from 1″ to 15 ft. (25.4 mm to 4.57 m) above the bottom of the pipe or channel. Minimum detectable level shall not be greater than 1″ (25.4 mm). Level sensing circuitry shall include a temperature sensor for automatic temperature compensation.
Sensor shall be constructed of 316 stainless steel and epoxy resin.
Sensor operating temperature shall be from 5°F to 175°F (-15°C to 80°C).
C. SENSOR CONNECTING CABLE
Provide minimum length 25 ft (7.6 m) tri-coaxial cable with potted bond to the Sensor head. Sensor cable shall be waterproof and electrically shielded. Exposed material shall be polyurethane only.
Sensor shall include a watertight plug for connection to the instrument electronics.
D. LOGGER ELECTRONICS
No calibration shall be required. The Level-Velocity Logger shall measure liquid level from the bottom of the pipe or channel, and flow velocity.
Logger electronics operating temperature shall be from –5° to 140°F (–20° to 60°C).
Shall have USB output to transfer log files to a Windows? computer or laptop.
Provide an LCD bar graph display to indicate level, velocity and temperature readings, plus remaining battery and logger storage capacity.
Shall be housed in a watertight IP67 enclosure with hinged, latching cover and watertight sensor cable entry.
Logger capacity shall be 130,000 data points. Each data point includes level, velocity and temperature reading.
Logger sample rate shall be user-selectable from 10 or 30 seconds, 1, 2, 5, 10, 30 or 60 minutes.
Shall be powered by 4 D-cell Alkaline batteries. Battery life shall be matched to Logger storage capacity: 15 days at 10 second sample rate up to 4 years at 60 minute sample rate.
E. PC SOFTWARE
Shall include Windows? software to retrieve, display, save and export log files from the Level-Velocity Logger. Shall support Windows versions including XP, Vista, 7, 8, and 10.
Shall convert level-velocity readings to flow for channel shapes including round pipes, rectangular, trapezoid and egg-shaped channels. Shall convert level readings to flow for flumes and weirs.
Shall provide ‘real-time’ communication with the level-velocity logger to display readings with a refresh rate of 10 seconds or less.
Shall permit the operator to set logging rate of the level-velocity instrument from 10 or 30 seconds, 1, 2, 5, 10, 15, 30 or 60 minutes.
Shall display battery life remaining and logger capacity remaining.
Shall display, save, output to a printer and export level-velocity log files in graph and tabular format. Export log files shall be delimited for import to spreadsheet or database programs.
Shall permit conversion of linear and volume units.
F. OPTIONAL FEATURES FOR INSERTION AS REQUIRED
Shall include 50 ft / 15 m length sensor cable extension with watertight connector plugs to permit sensor installation total distance of 75 ft / 23 m from the electronics enclosure. Cable extension shall be shielded, submersible with a durable polyurethane coating.
G. MANUFACTURER
Level-Velocity Logger shall be Stingray 2.0 model by Greyline Instruments and warranted against defects in materials and workmanship for one year.
Software shall be ‘Greyline Logger’ by Greyline Instruments.
Specifications are subject to change without notice. Please contact Greyline if you need more information or for advice in your application. We can provide quotations and refer you to the Greyline sales representative in your area.
