Project Description

延伸唇SU系统

延伸唇SU系统是可以在34.5KV的高电压线路上使用的的弹性绝缘罩。该系统具有通用性,在佩戴绝缘手套的情况下,可以从绝缘的高空装置或平台上手动安装;或利用带有SU施放装置的带电操作杆手动安装。该系统采用SALCOR II型高弹体制成,可以有效抗臭氧和紫外线。甚至在零度以下也可以保持很好的弹性。

Salisbury的RIB GRIP带有相同的绝缘罩和连接管的装置可以安全的实现内锁定。锥形唇可以帮助在导线上轻松使用。端部轮廓与针式绝缘子的边缘相容,这样线管就把电线和托架及线夹紧紧包住。

用直线管轻松连接线管和绝缘罩。在连接端上注塑有一个提升孔,以供带电操作杆做拆卸之用。

SU系统连接管采用橘红色的SALCOR II型材料制成。RIB-GRIP结构可确保牢牢锁定SU系统的直条线管和绝缘罩。UC2可将连接延伸唇管连接到PTHL、LRG绝缘罩、OR134端部保护器、51mm及64mm的SU系统和常规线管上。

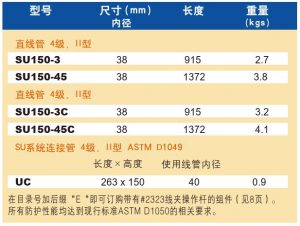

型号 内径尺寸(mm) 长度 重量(kgs)
直线管 4级,II型
SU150-3 38 915 2.7
SU150-45 38 1372 3.8

直线管 4级,II型
SU150-3C 38 915 3.2
SU150-45C 38 1372 4.1

SU系统连接管 4级,II型
长度×高度 使用线管内径
UC 263 x 150 40 0.9

延伸唇SU系统可通过橡胶手套或带电操作杆在34.5kV的配电电压下组装。
为安装适当的隐蔽装备,可单独购买SU系统装备所需的线夹操作杆组件。

转接器的增加,方便了用标准线夹操作杆进行所有SU系统的操作。

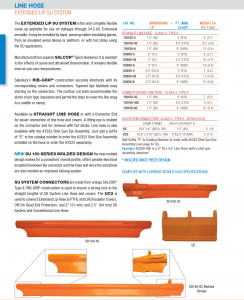

lIne Hose
extended Lip sU system

The ExTENdEd lIP Su SYSTEm is the only complete flexible
cover-up available for use on voltages through 34.5 kV. extremely
versatile, it may be installed by hand, wearing rubber insulating gloves,
from an insulated aerial device or platform, or with hot sticks using
the sU applicators.

manufactured from superior SAlCOR Type ii elastomer, it is resistant
to the effects of ozone and ultraviolet deterioration. it remains flexible
even at sub-zero temperatures.

salisbury’s RIB-gRIP construction securely interlocks with its
corresponding covers and connectors. Tapered lips facilitate easy
starting on the conductors. The contour cut ends accommodate the
skirts of pin type insulators and permit the hose to cover the line snug
to a saddle or clamp.

available as STRAIgHT lINE HOSE or with a connector end
for easier connection of line hose and covers. a lifting eye is molded
on the connector end for removal with hot sticks. Line hose is also
available with the #2323 shot Gun eye assembly. Just add a suffix
of “e” to the catalog number to order the #2323 shot Gun assembly
installed on the hose or order the #2323 separately.

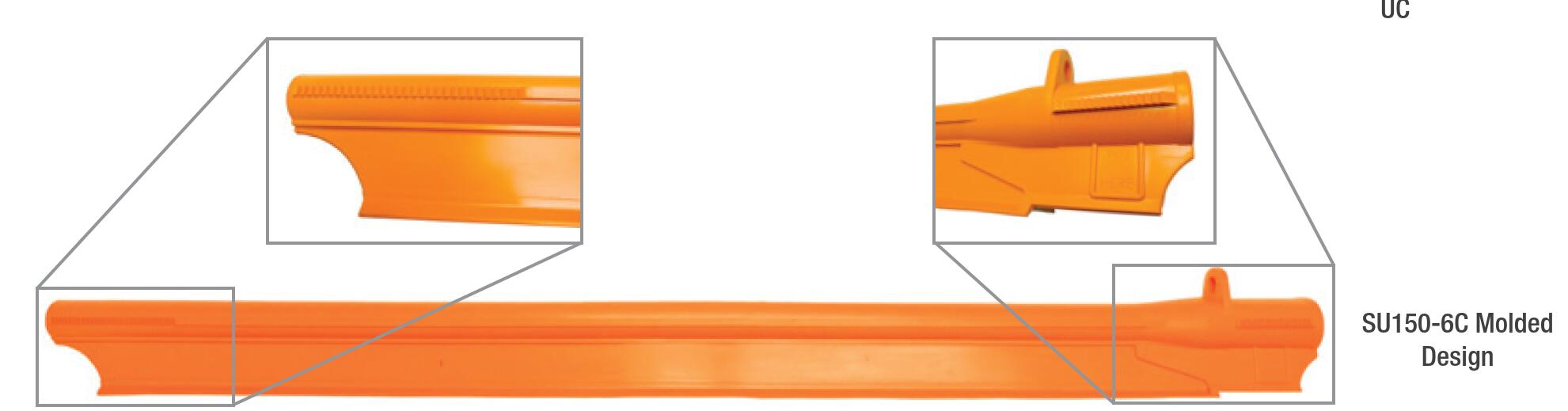

neW Su 150 SERIES mOldEd dESIgN the new molded
design makes for a consistent overall profile, offers greater electrical
insulation between the connector and line hose and since the serrations
are also molded an improved locking system.

Su SYSTEm CONNECTORS are made from orange saLcor
Type ii. riB-GriP construction is used to ensure a strong lock to the
straight lengths of sU system Line Hose and covers. The uC2 is
used to connect extended Lip Hose to PTHL and LrG insulator covers,
or134 Dead end Protectors, and 2” (51 mm) and 2.5” (64 mm) sU
system and conventional Line Hose.

Cat. no. DImensIons — ft. (mm) WeIgHt ea.
I.D. Length lbs. ( kgs)
sTraiGHT Line Hose cLass 4, TyPe ii
*Su150-3 1.5” (38) 3’ (915) 6 (2.7)
*Su150-45 1.5” (38) 4.5’ (1372) 8.5 (3.8)
*Su150-6 1.5” (38) 6’ (1829) 12 (5.4)
Su200-3 2” (51) 3’ (915) 6 (2.7)
Su200-45 2” (51) 4.5’ (1372) 10 (4.5)
Su200-6 2” (51) 6’ (1829) 14 (6.4)
Su250-3 2.5” (63.5) 3’ (915) 7 (3.2)
Su250-45 2.5” (63.5) 4.5’ (1372) 11 (5.0)
Su250-6 2.5” (63.5) 6’ (1829) 15 (6.8)

connecTor enD Line Hose cLass 4, TyPe ii
*Su150-3C 1.5” (38) 3’ (915) 7 (3.2)
*Su150-45C 1.5” (38) 4.5’ (1372) 9 (4.1)
*Su150-6C 1.5” (38) 6’ (1829) 12 (5.4)

sU sysTem connecTors cLass 4, TyPe ii asTm D1049
Length x Height Use w/ Line Hose i.D.
uC 10.5” x 6” (263 x 150) 1.5” (40) 2 (.9)
uC2 10.5” x 7.75” (263 x 194) 2”&2.5” (51&64) 3 (1.4)
add suffix “e” to Catalog number to order with #2323 shot gun eye
assembly (see page B-12).
example: su200-45e is a 2” ID x 4.5’ Line Hose with a shot gun
assembly attached
* moLDeD onCe pIeCe DesIgn

comPLies wiTH cUrrenT asTm D1050 sPeciFicaTions.

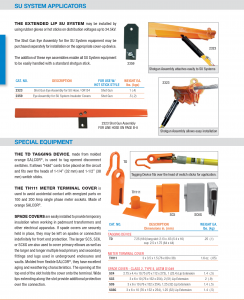

THE ExTENdEd lIP Su SYSTEm may be installed by
using rubber gloves or hot sticks on distribution voltages up to 34.5kV.

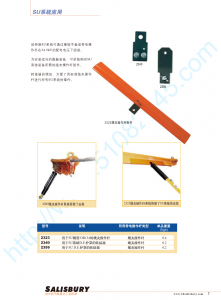

The shot Gun eye assembly for the sU system equipment may be
purchased separately for installation on the appropriate cover-up device.

The addition of these eye assemblies enable all sU system equipment
to be easily handled with a standard shotgun stick.

Cat. no. DesCrIptIon for use W/ WeIgHt ea.
Hot stICK styLe lbs. (kgs)
2323 shot Gun eye assembly for sU Hose / or134 shot Gun 1 (.4)
2359 eye assembly for sU system insulator covers shot Gun .5 (.2)

shotgun assembly allows easy installation
