Project Description

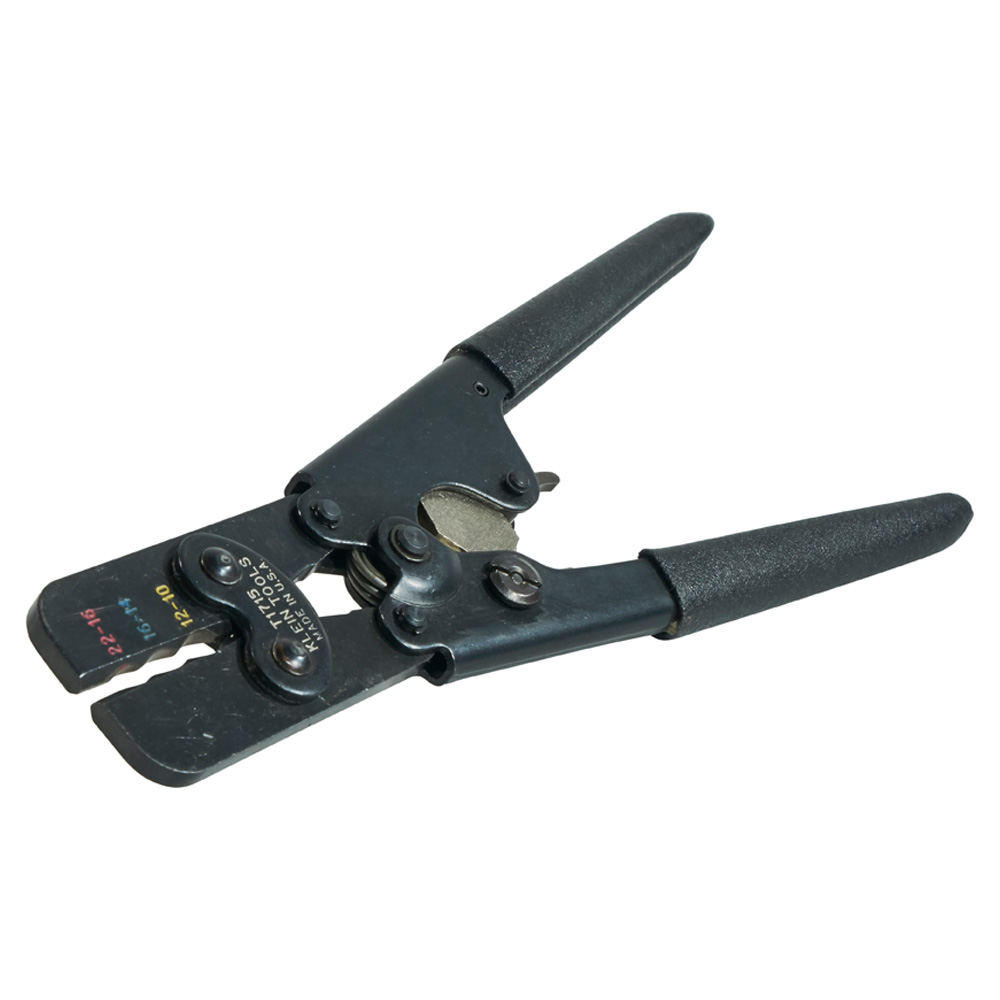

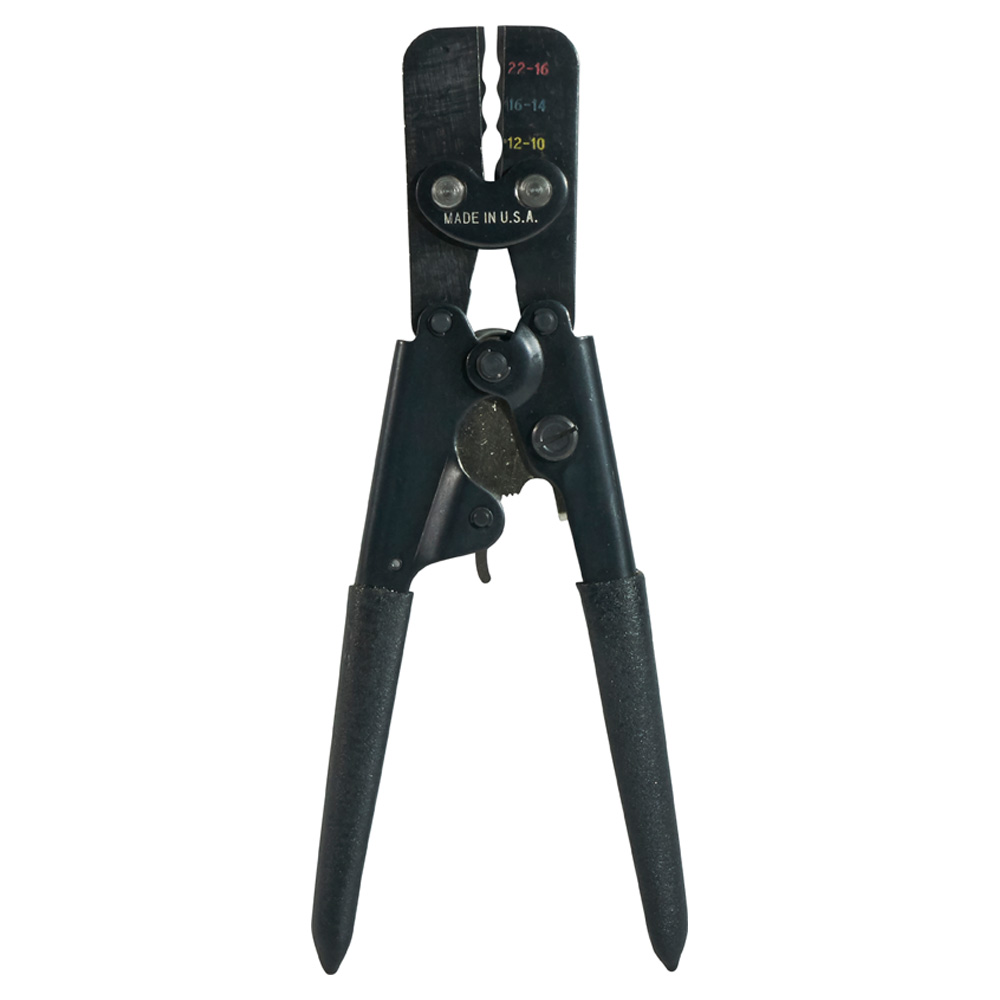

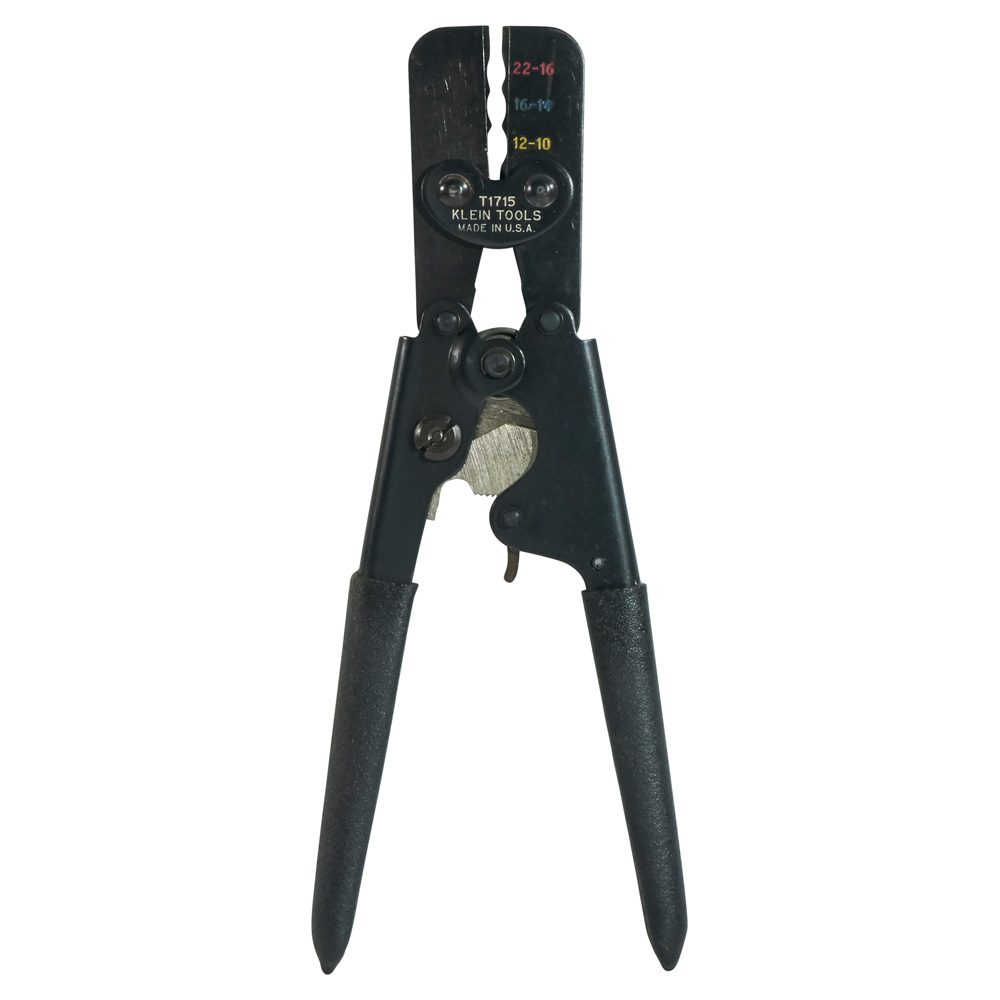

Full Cycle Ratcheting Crimper – Insulated Terminals

T1715

  • Crimps insulated terminals in 22-16 (front cavity), 16-14 (middle cavity), and 12-10 (rear cavity) wire sizes
  • Color-coded wire size markings
  • Compound lever-action of narrow-span handles puts more crimping power into each squeeze
  • Comfort-grip plastic handles

全循环棘轮式压接机 – 绝缘端子

T1715

  • 压接22-16(前腔),16-14(中腔)和12-10(后腔)导线尺寸的绝缘端子
  • 颜色编码的电线尺寸标记
  • 窄跨度手柄的复合杠杆作用为每次挤压提供更多的压接力
  • 舒适握把塑料手柄

Crimps insulated terminals in wire sizes 22-16 (front cavity), 16-14 (middle cavity), and 12-10 (rear cavity). Color-coded wire size markings. Full-cycle ratchetings puts more crimping power into each squeeze.

Specifications
Handle Color:
Black
Cable Size:
22-16, 16-14, 12-10
Overall Length:
9” (228.6 mm)
Weight:
1.1 lb (0.5 kg)
UPC:
092644340031
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

压接绝缘端子,电线尺寸为22-16(前腔),16-14(中腔)和12-10(后腔)。颜色编码的电线尺寸标记。全周期棘轮装置为每次挤压提供更多的压接力。

产品规格
处理颜色:
黑色
电缆尺寸:
22-16,16-14,12-10
总长度:
9”(228.6 mm)
重量:
1.1磅(0.5千克)
UPC:
092644340031
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
