Voltage Detectors
The single range TAG-200, single range TAG-330 and multi-range TAG-200MR?are voltage detectors designed for detecting both distribution and transmission voltages. These direct contact type detectors emit both audible and visual indications when placed in contact with an energized conductor.?TAG’s are designed for overhead applications, but can be adapted for underground use with optional underground bushing probes.
Voltage Detector Features

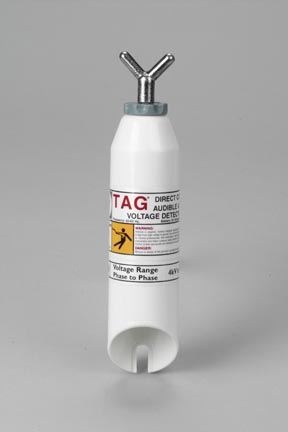

- TAG-200 and?200MR for system voltages up to 69kV (phase-to-phase)

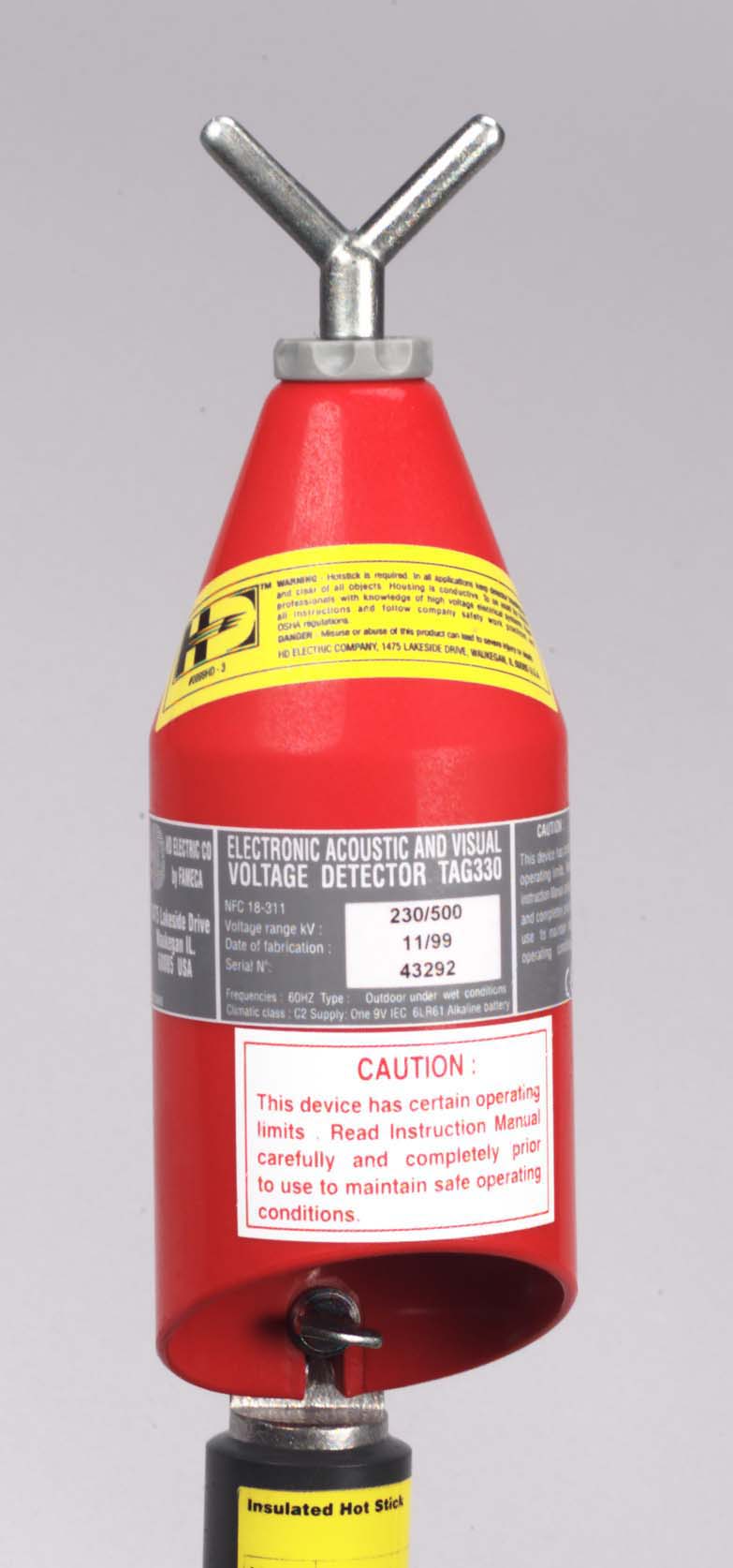

- TAG-330 for system voltages from 69kV up to 765kV (phase-to-phase)
- Designed to physically contact conductor under test
- Rugged polycarbonate housing for heavy field use
- Water resistant/gasketed housing
- All-Check self testing system
- Both audible and visual alarms
- No on/off or range selector switches
- Built-in universal spline for hotstick attachment
- 9V lithium or alkaline battery operated
- Carrying case included
- Compact, lightweight, and easy to use
- Optional bushing probes for use in underground applications
HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
电压检测器
所述单个范围TAG??-200,单范围TAG-330和多范围TAG-200MR是被设计用于检测二者分配和传输电压的电压检测器。这些直接接触型探测器在与通电导体接触时发出声音和视觉指示。TAG为高架应用而设计,但可通过可选的地下套管探头进行地下使用。
电压检测器功能
- TAG-200和200MR,系统电压高达69kV(相间)
- TAG-330适用于69kV至765kV(相间)的系统电压
- 设计用于物理接触被测导体
- 坚固的聚碳酸酯外壳,适合重型场地使用
- 防水/垫圈外壳
- 全检查自检系统
- 声音和视觉警报
- 没有开/关或范围选择开关
- 内置通用花键,用于热棒附件
- 9V锂电池或碱性电池供电
- 包括携带箱
- 小巧轻便,易于使用
- 可选的套管探头,用于地下应用
HD Electric Company致力于不断审查和改进其产品线,因此保留修改产品设计和规格的权利,恕不另行通知。
