组合式径向剥线钳
VDV110-295
- 轻松干净地剥离同轴电缆和双绞线电缆,包括RG59,RG6 / 6Q,CAT3,CAT5和CAT6尺寸
- 精密的高碳钢刀片自动适应双绞线电缆的直径;不会损坏内部导体
- 容易清理杂物
- 手指环使操作更轻松顺畅
- 高级工具带有一个滑动深度计,可以预先测量同轴电缆,以实现快速,精确和可重复的5/16英寸(7.9毫米)和1/4英寸(6.4毫米)带状电缆
- 采用结构化设计的附加外部刀片,允许用户切开电线护套以进行中跨访问或纵向打开
- 也可用于RG6Q四屏蔽(双屏蔽)电缆

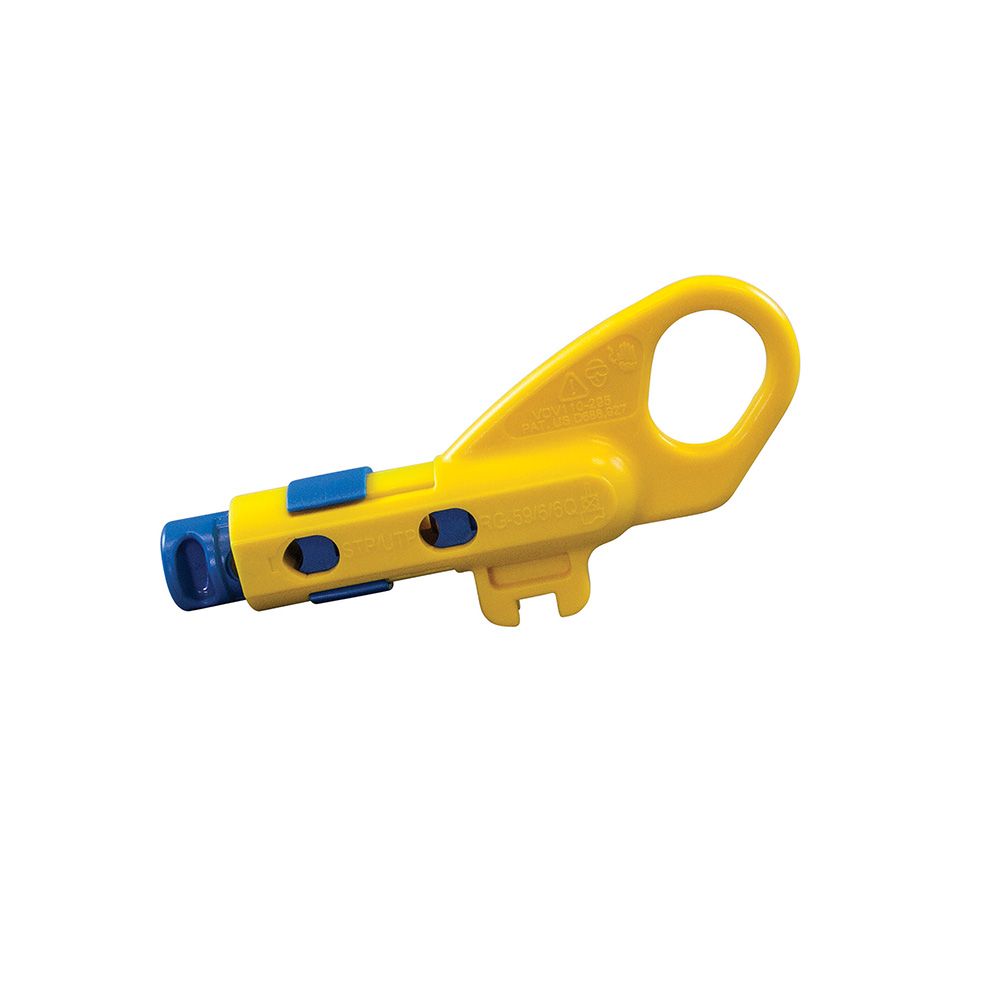

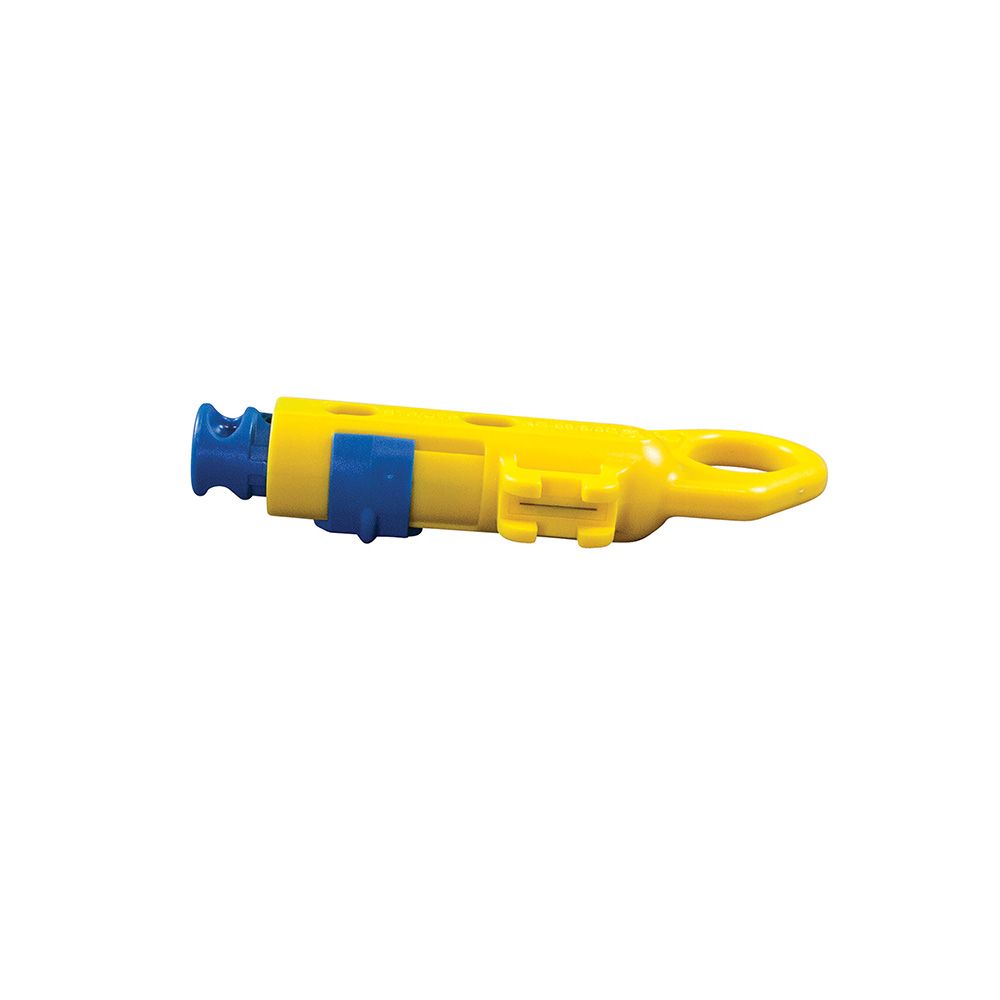

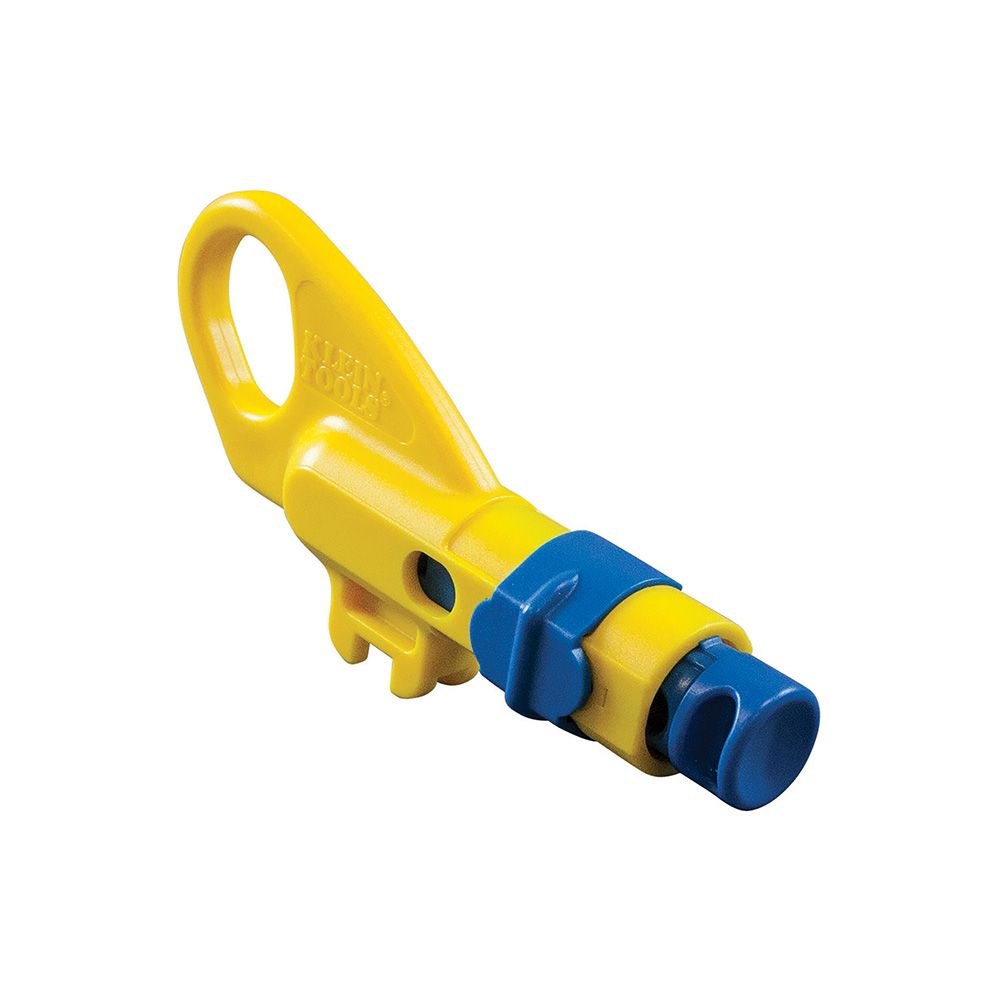

Combination Radial Stripper
VDV110-295

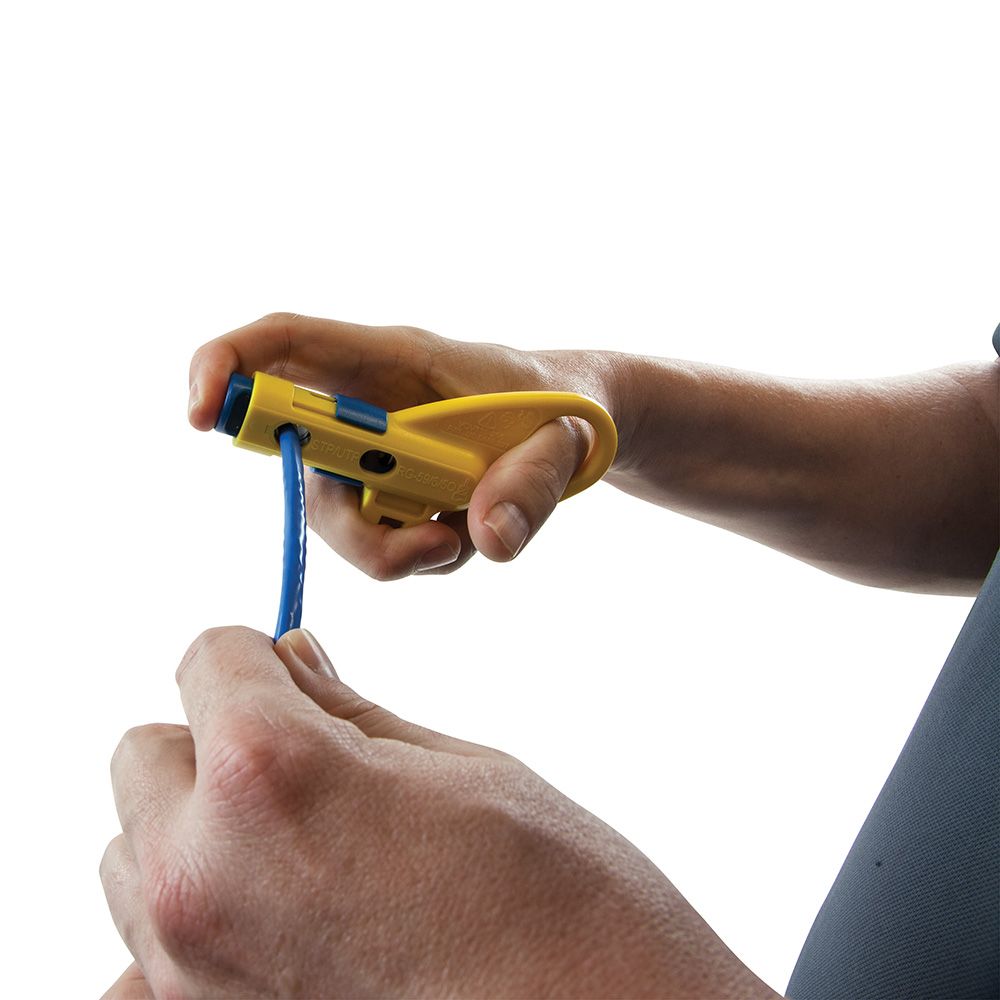

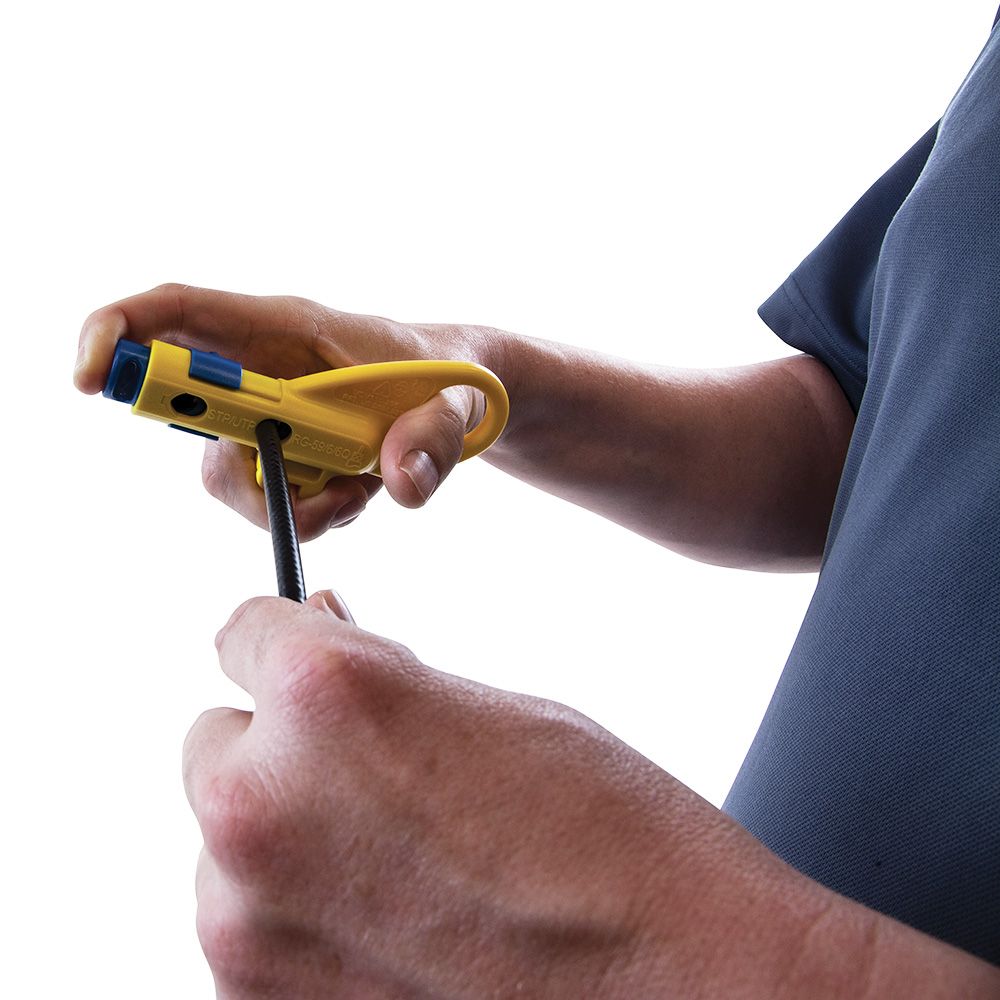

- Easily and cleanly strips both coaxial and twisted-pair cable including RG59, RG6/6Q, CAT3, CAT5 and CAT6 sizes
- Precision high-carbon steel blades automatically adjust to twisted pair cable diameters; won’t damage internal conductors
- Easy debris clean-out
- Finger loop for smooth, easy rotation
- Premium tool features a slide depth gauge to pre-measure coax cable for quick, precise and repeatable 5/16-Inch (7.9 mm) and 1/4-Inch (6.4 mm) strips
- Additional external blade in a structured design allows user to slit wire jacket for mid-span access or to open lengthwise
- Also works with with RG6Q quad shield (dual shield) cable
Klein Tools组合式径向剥线钳适用于双绞线和同轴电缆。精密的高碳钢刀片可自动调整以适应双绞线电缆的直径,并且不会损坏内部导体。割伤不会割伤内鞘。凯能(Klein)的滑动深度计可对同轴电缆进行预测量,以确保每次都能快速,准确和可重复地剥离。
技术指标
类型:
径向汽提塔
应用:
电缆准备
电缆类型:
RG59,RG6 / 6Q;CAT3,CAT5 / 5e,CAT6 / 6A
级别:
同轴:2,双绞线:1
带材尺寸:
同轴:0.3125英寸和0.250英寸(7.94和6.35毫米),双绞线:可变
总长度:
5.25英寸(13.3厘米)
手柄颜色:
黄色/蓝色
重量:
1.5盎司(43克)
UPC:
092644690983
警告事项
- 始终佩戴认可的护目镜。
- 使用此工具之前,请仔细阅读并理解说明。
Klein Tools Combination Radial Stripper works on both twisted pair and coaxial cables. The precision, high-carbon steel blades automatically adjust to twisted pair cable diameters and won’t damage internal conductors. Consistent cuts won’t nick the inner sheaths. Klein’s exclusive sliding depth gauge pre-measures coax cable for fast, accurate and repeatable stripping every time.
Specifications
Type:
Radial Stripper
Application:
Cable Preparation
Cable Type:
RG59, RG6/6Q; CAT3, CAT5/5e, CAT6/6A
Levels:
Coaxial: 2, Twisted Pair: 1
Strip Dimensions:
Coaxial: 0.3125” and 0.250” (7.94 and 6.35 mm), Twisted Pair: Variable
Overall Length:
5.25” (13.3 cm)
Handle Color:
Yellow/Blue
Weight:
1.5 oz (43 g)
UPC:
092644690983
WARNINGS
- Always wear approved eye protection.
- Read carefully and understand instructions before using this tool.
