带有远程的LAN Explorer数据线测试仪
VDV526-100
- RJ11,RJ12和RJ45端接语音和数据电缆的单键测试
- 测试CAT3,CAT5e和CAT6 / 6A电缆
- 快速LED响应指示电缆状态(通过,接线错误,开路故障,短路故障和屏蔽)
- 在测试仪主体中安全地测试远程存储
- 紧凑型测试仪可轻松放入口袋中
- 自动关机功能可延长电池寿命(包括9V)
- 低电量指示灯
- 可提供更换遥控器(VDV999-150)(另售)

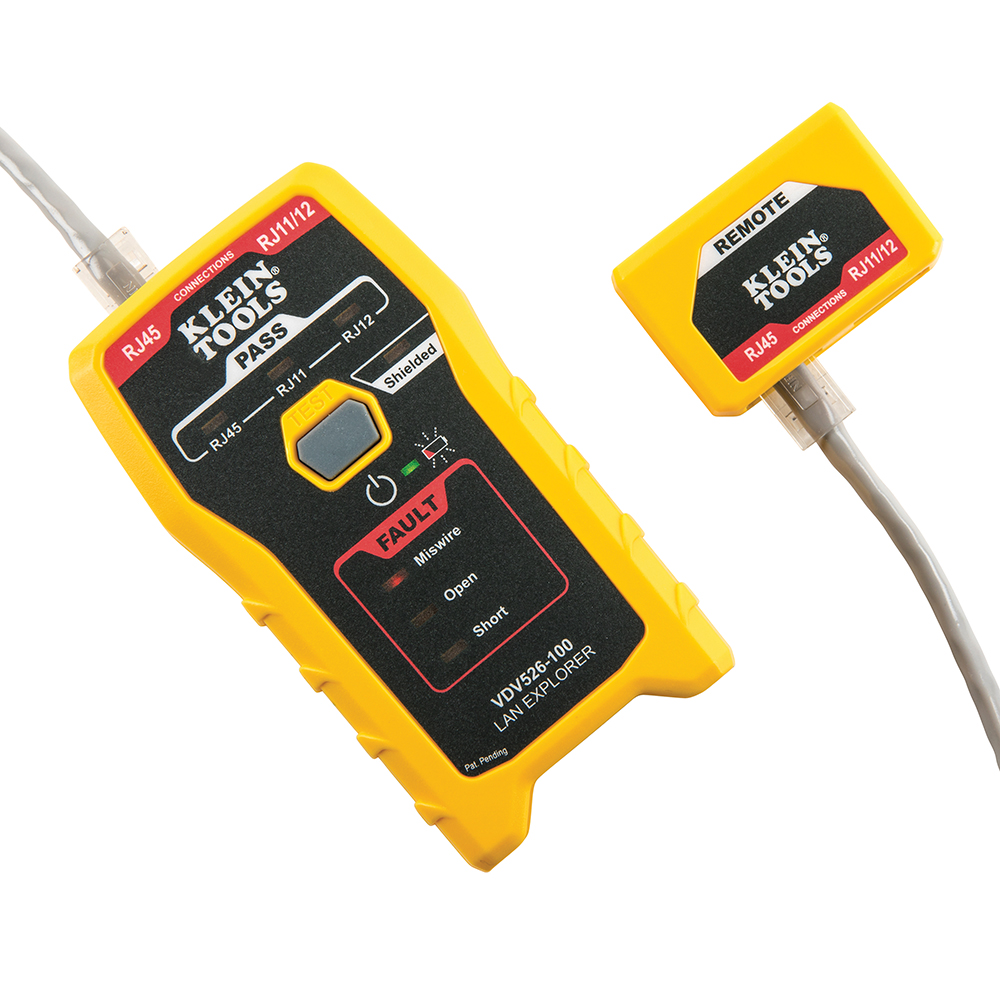

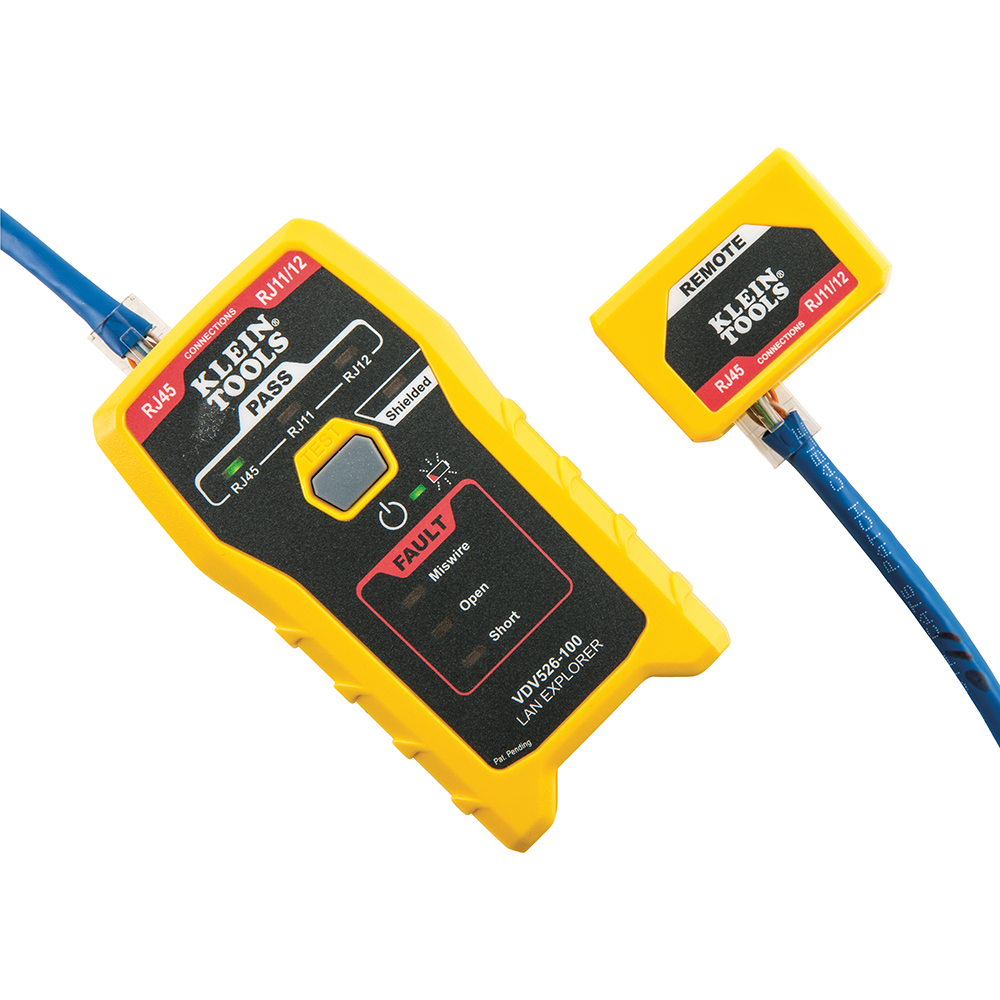

LAN Explorer? Data Cable Tester with Remote
VDV526-100

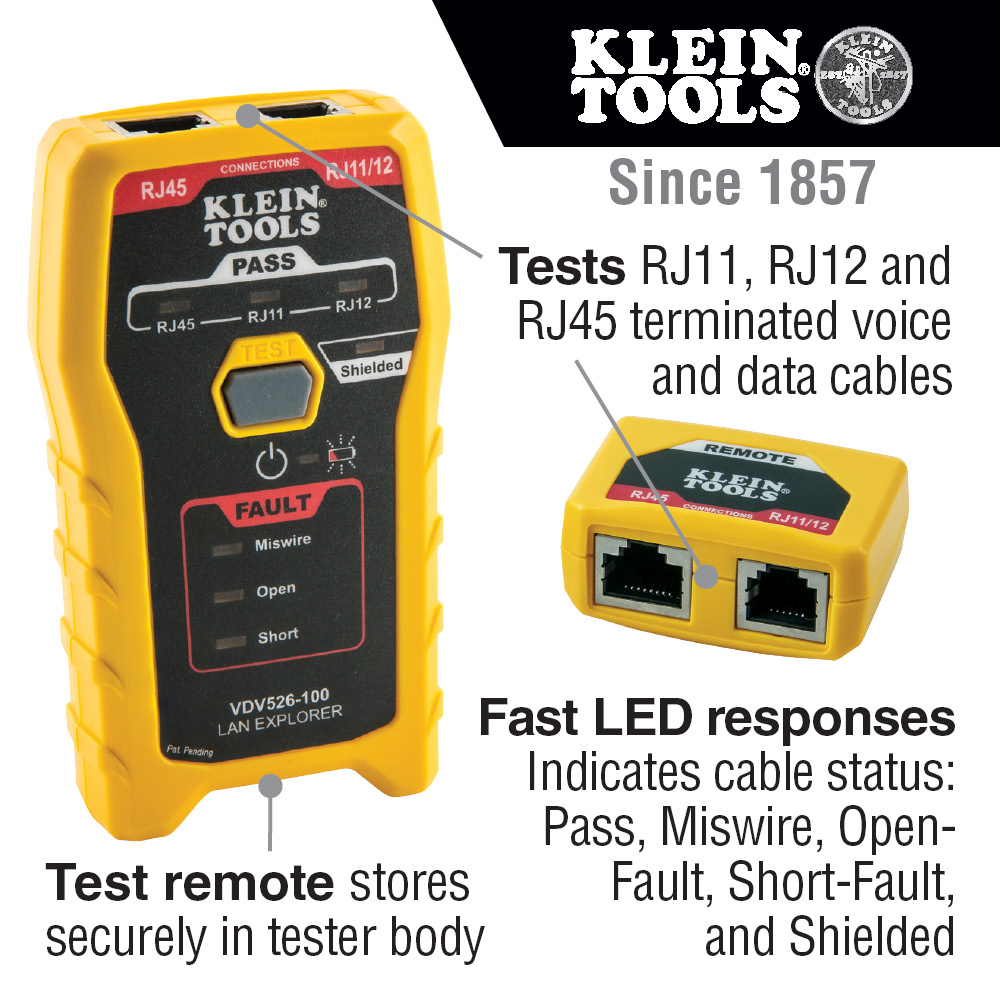

- Single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
- Tests CAT3, CAT5e and CAT6/6A cables
- Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

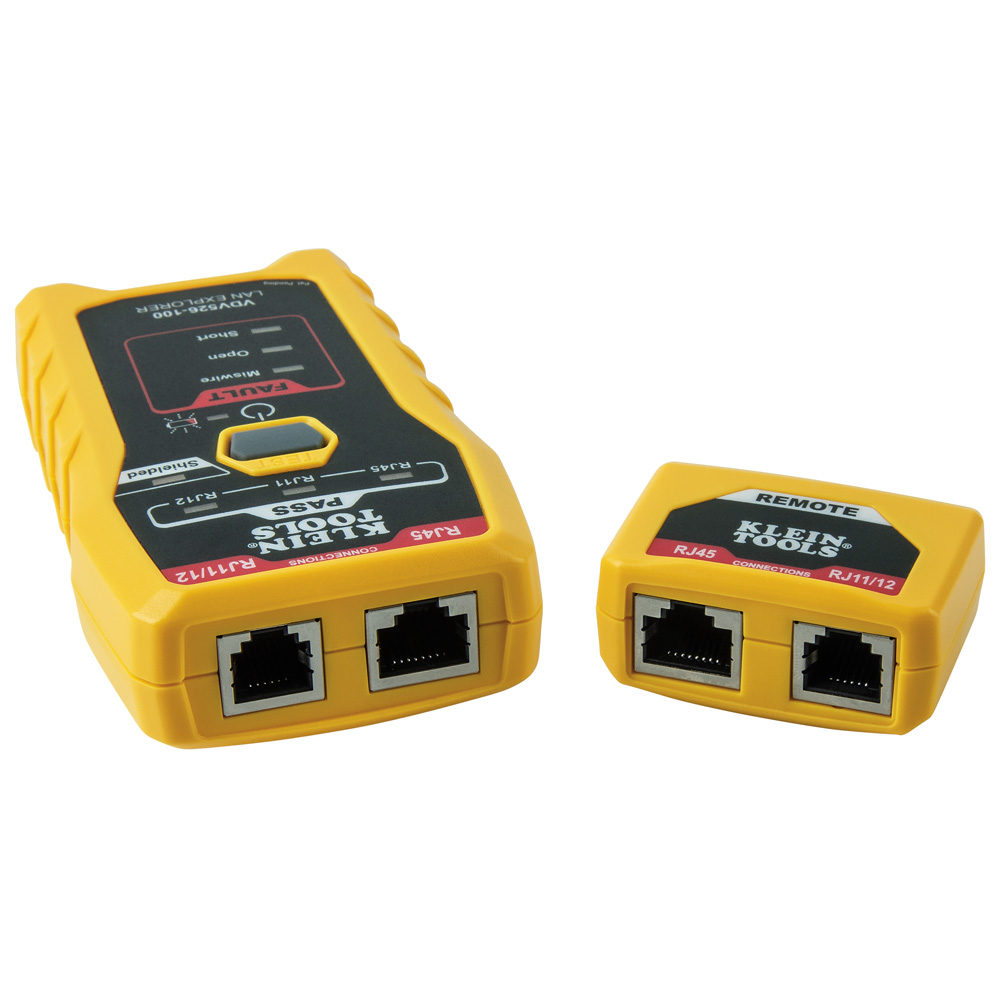

- Test remote stores securely in tester body

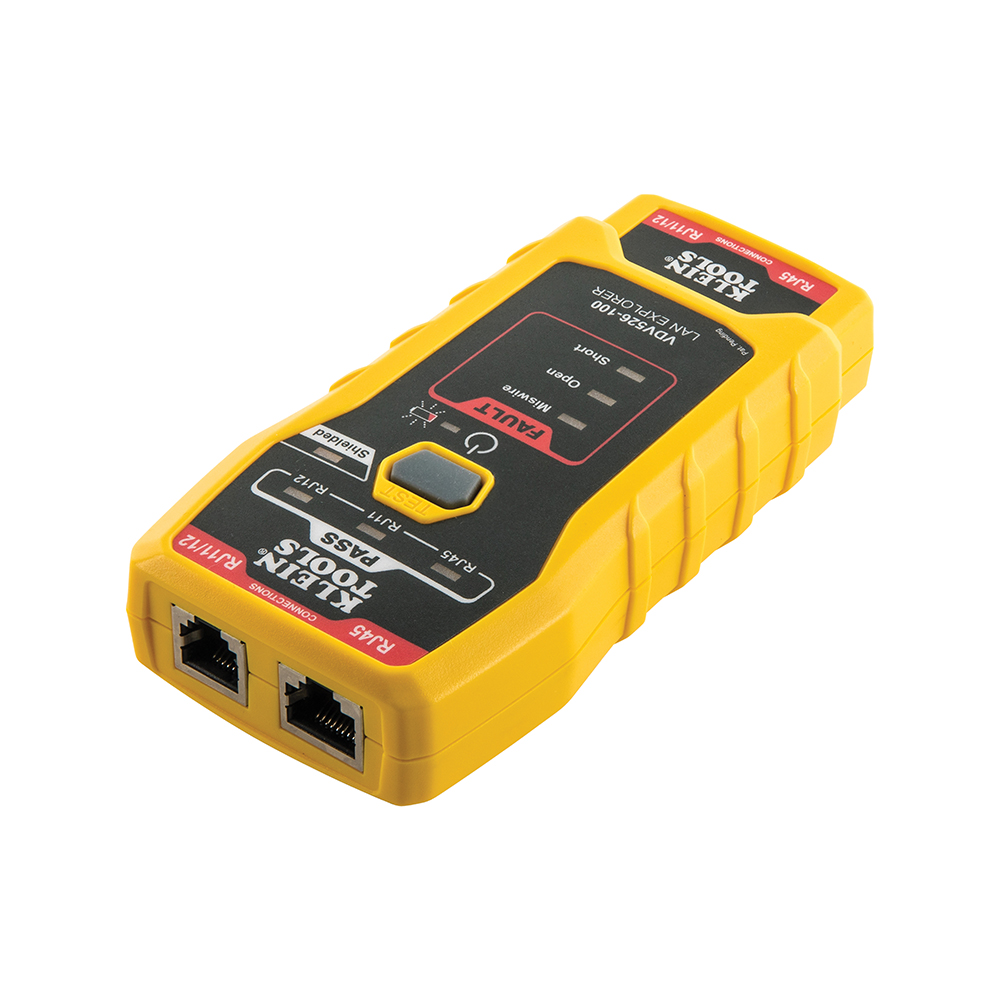

- Compact tester easily fits in your pocket
- Auto Power-off feature to conserve battery life (9V included)
- Low battery indicator
- Replacement remote (VDV999-150) available (sold separately)
这款简单,紧凑的数据线测试仪适用于RJ11,RJ12和RJ45端接语音和数据电缆,适用于错误接线,开路故障,短路故障和屏蔽。即时LED响应指示电缆状态。测试遥控器安全地存储在测试仪主体中。自动关机功能可自动关闭测试仪,以节省9V电池(附带)。
产品规格
类型:双绞线,数据,语音,局域网
应用:电缆测试
特殊功能:LED响应
电缆类型:CAT3,CAT5e,CAT6 / 6A
总长度:5英寸(127毫米)
总体高度:1.25英寸(32毫米)
总宽度:2.5英寸(63.5毫米)
材料:塑料和冲压金属
Test-n-Map ID遥控器:1
电池:(1)9V
电池寿命:活跃:80小时,待机:3。5年
掉落保护:2’(0.6米)
支持的遥控器:VDV999150
连接和适配器类型:RJ11,RJ12和RJ45
显示:LED
多种风格发生器:没有
检测到的故障:通过,错误接线,开路故障,短路故障和屏蔽
测试和测量类型:语音,数据,RJ45,RJ11
包括:测试仪,遥控器,9V电池
重量:4.0盎司?(116克)
UPC:092644692246
警告
- 始终佩戴认可的护目镜。
- 使用本产品前,请阅读所有安全信息。
- 仔细阅读所有说明。
- 设计用于无动力/暗电缆系统。
- 请勿连接到带电的交流电源。
- 只能在室内使用。
This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).
Specifications
Type:Twisted Pair, DATA, Voice, LAN
Application:Cable Testing
Special Features:LED response
Cable Type:CAT3, CAT5e, CAT6/6A
Overall Length:5” (127 mm)
Overall Height:1.25” (32 mm)
Overall Width:2.5” (63.5 mm)
Material:Plastic and Stamped Metal
Test-n-Map ID Remotes:1
Batteries:(1) 9V
Battery Life:Active: 80 Hours, Standby: 3.5 years
Drop Protection:2′ (0.6 m)
Supported Remotes:VDV999150
Connection & Adapter Types:RJ11, RJ12, and RJ45
Display:LED
Multiple Style Tone Generator:No
Faults Detected:Pass, Miswire, Open-Fault, Short-Fault, and Shield
Test & Measure Types:Voice, Data, RJ45, RJ11
Included:Tester, Remote, 9V Battery
Weight:4.0 oz. (116 g)
UPC:092644692246
WARNINGS
- Always wear approved eye protection.
- Read all safety Information before using the product.
- Carefully read all instructions.
- Designed for use on unpowered/dark cable systems.
- Do NOT connect to live AC power.
- For indoor use only.
