Voltage Probe

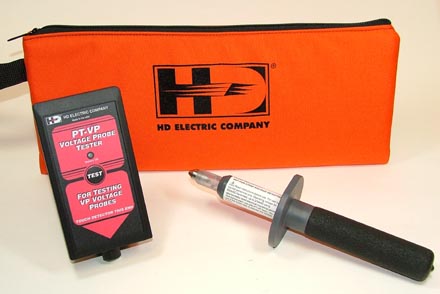

The VP-1 Voltage Probe is designed to be used as a hand held direct contact secondary voltage detector from 50VAC to 600VAC. It can also be used as a direct contact voltage detector on primary voltages from 600V up to 21kVAC and also as a proximity voltage detector for voltages exceeding 21kVAC when using appropriately rated electrical insulating gloves.
Handheld Voltage Probe Features
- Tests exposed metallic surfaces and conductors for the presence of secondary voltage
- Tests unshielded primary voltage cable insulation
- Tests primary voltage joint and termination test points for the presence of voltage
- Simple indication of voltage – flashing red light and beeper
- Compact, lightweight and easy-to-use
- Super bright LED indicator
- Powered by field replaceable 2AA lithium or alkaline batteries
HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
电压探头
VP-1电压探头设计用作50VAC至600VAC的手持式直接接触二次电压检测器。它还可以用作600V至21kVAC初级电压的直接接触电压检测器,也可以作为接近电压检测器,当使用额定电气绝缘手套时,电压超过21kVAC。
手持式电压探头功能
- 测试暴露的金属表面和导体是否存在二次电压
- 测试未屏蔽的初级电压电缆绝缘
- 测试初级电压接头和终端测试点是否存在电压
- 电压简单指示 – 闪烁红灯和蜂鸣器
- 小巧轻便,易于使用
- 高亮LED指示灯
- 由现场可更换的2AA锂电池或碱性电池供电
HD Electric Company致力于不断审查和改进其产品线,因此保留修改产品设计和规格的权利,恕不另行通知。
